To identify the piezo unit associated with the GUI panel, click the 'Ident'
button; the Power LED and the Display of the asssociated controller
The following parameter settings are shown for example only, and are by
no means the only possible setting combinations.
11) Make the following parameter settings, as shown in Fig. 5.8
Control Tab
Loop Mode - Select Closed Loop
Maximum Voltage - Set the corresponding voltage for the piezo being
driven, 75V, 100V or 150V.
Advanced Tab
Input Source - Select Software + Wheel
Analogue Input Mode - Select Analogue Channel 1
Note
flashes for a short period.

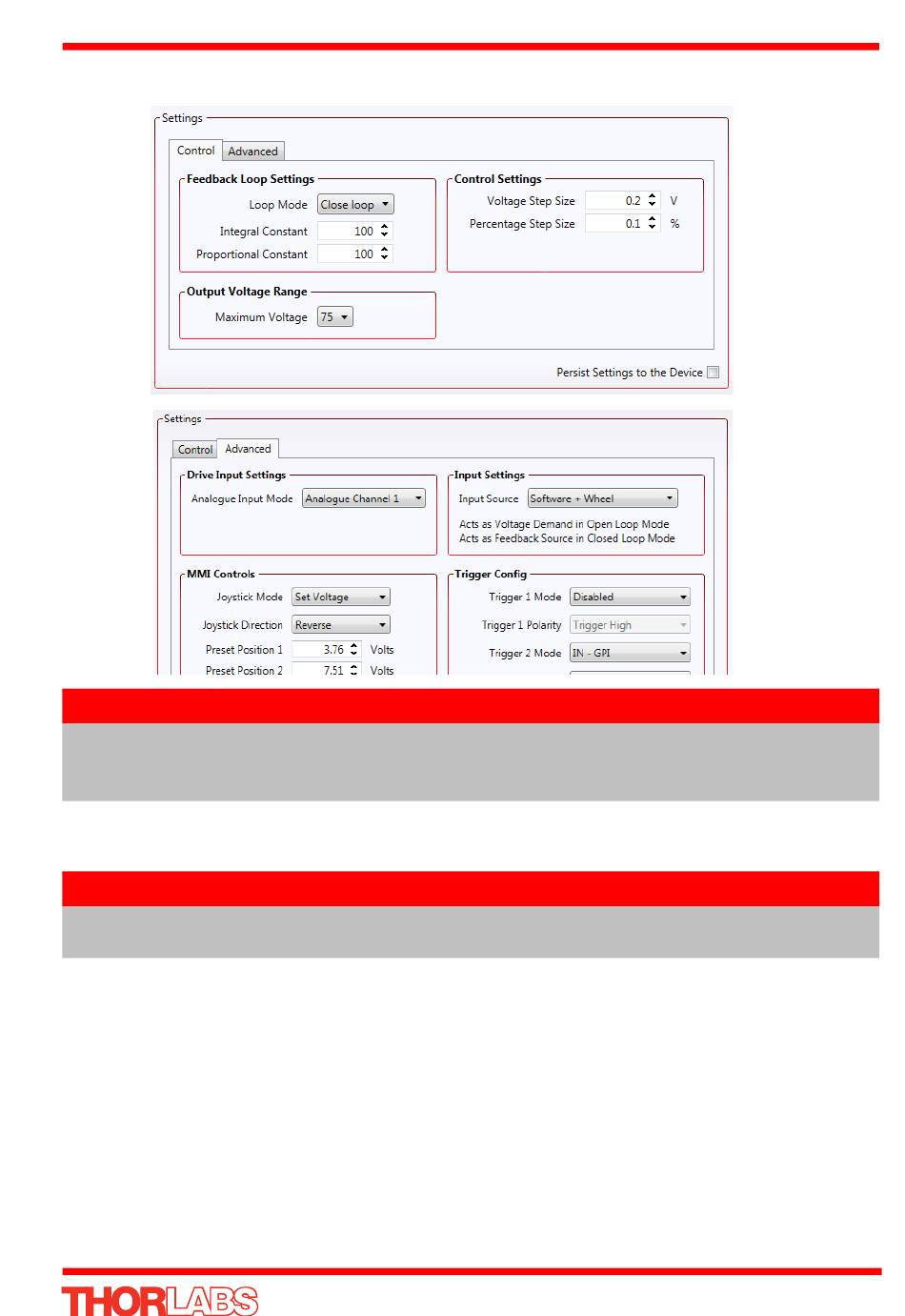

Fig. 5.8 Piezo Driver Settings
Note
