Motion System Description - Simuline Cycraft Installation & User Manual

Category
Play type
Main Machine Dimensions
(At the power-on position.)
Main Machine Dimensions
(Transport dimensions)
Fence Dimensions
Weight
Electric Power
No. Of Passenger
Passenger Weight Limit
Compartment

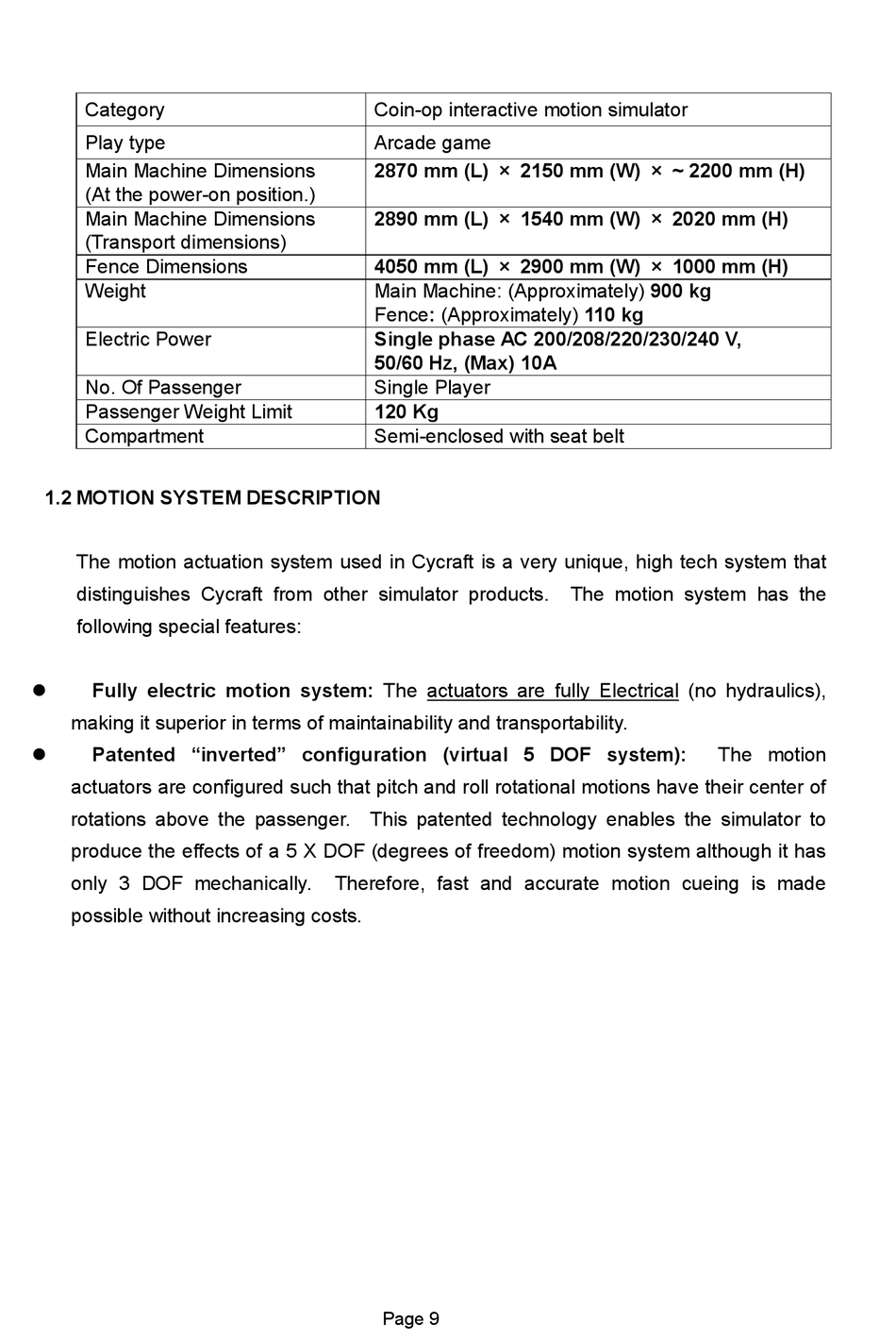

1.2 MOTION SYSTEM DESCRIPTION

The motion actuation system used in Cycraft is a very unique, high tech system that
distinguishes Cycraft from other simulator products.
following special features:
l Fully electric motion system: The actuators are fully Electrical (no hydraulics),
making it superior in terms of maintainability and transportability.
l Patented "inverted" configuration (virtual 5 DOF system):
actuators are configured such that pitch and roll rotational motions have their center of
rotations above the passenger. This patented technology enables the simulator to
produce the effects of a 5 X DOF (degrees of freedom) motion system although it has
only 3 DOF mechanically.
possible without increasing costs.
Coin-op interactive motion simulator
Arcade game
2870 mm (L) × 2150 mm (W) × ~ 2200 mm (H)
2890 mm (L) × 1540 mm (W) × 2020 mm (H)
4050 mm (L) × 2900 mm (W) × 1000 mm (H)
Main Machine: (Approximately) 900 kg
Fence: (Approximately) 110 kg
Single phase AC 200/208/220/230/240 V,
50/60 Hz, (Max) 10A
Single Player
120 Kg
Semi-enclosed with seat belt
Therefore, fast and accurate motion cueing is made
Page 9
The motion system has the
The motion
