7.8 LUBRICATING THE JOINTS

This maintenance work should be performed every 18 months.
1) Prepare grease gun with grease specified as below or equivalent:
KLUBER HIMONAX WS433

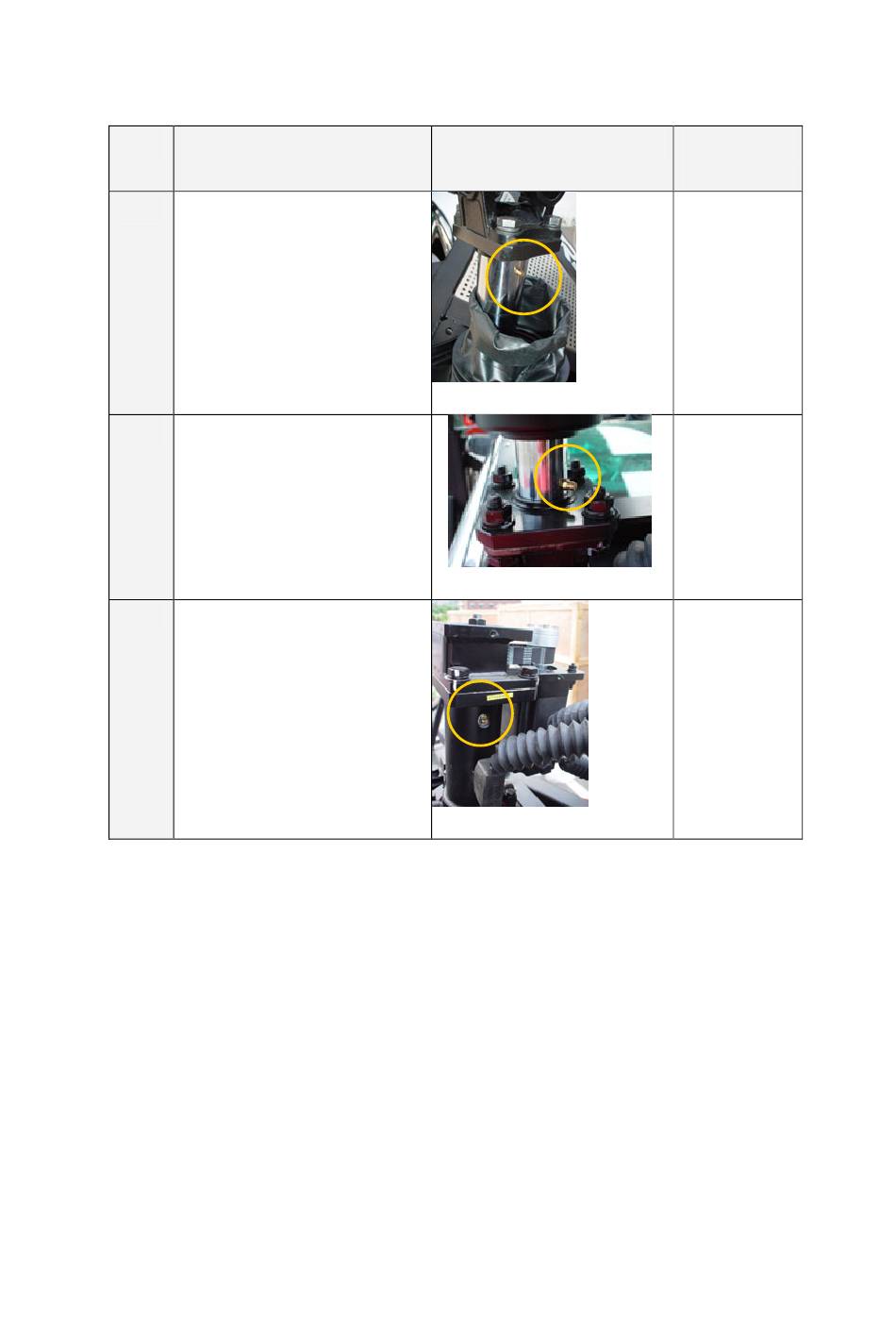

2) Identify the grease nipples as shown in the figure below.
Part
Wipe away any excessive grease.
Play the game for at least three games and wipe away all excessive
grease.
Replace all covers and bellows.
Page 62
60 grams
30 grams
10 grams
Amount of
Grease
