8. REPLACEMENT OF SERVICE PARTS.
Only Qualified Service Personnel must carry out maintenance. Ensure that the
main power is switched OFF and disconnected before attempting any work.

8.1 EXCHANGING THE COMPACT FLASH CARD

Cycraft's motion board inside the MSCU is programmed to log any occurrence of
errors with relevant system status data onto a compact flash card.
unidentifiable problems, it can be recommended that the compact flash card be
replaced by a duplicate (provided by the distributor) and the original one be returned
to the manufacturer for analysis. Or, if the operator is capable, the error log file can
be accessed from the compact flash card and sent to the manufacturer by the
operator. Also, future program upgrades may require exchanging the compact flash
card.
To remove the compact flash card,
1) Make sure all electrical power is OFF.
2) Locate the motion control computer in the MSCU and disassemble it from the floor
plate by loosening the 4 screws in the corner of the computer board as shown in
the figure.
3) Expose the underside of the computer board where the compact flash card is locat
ed and pull the compact flash card out.

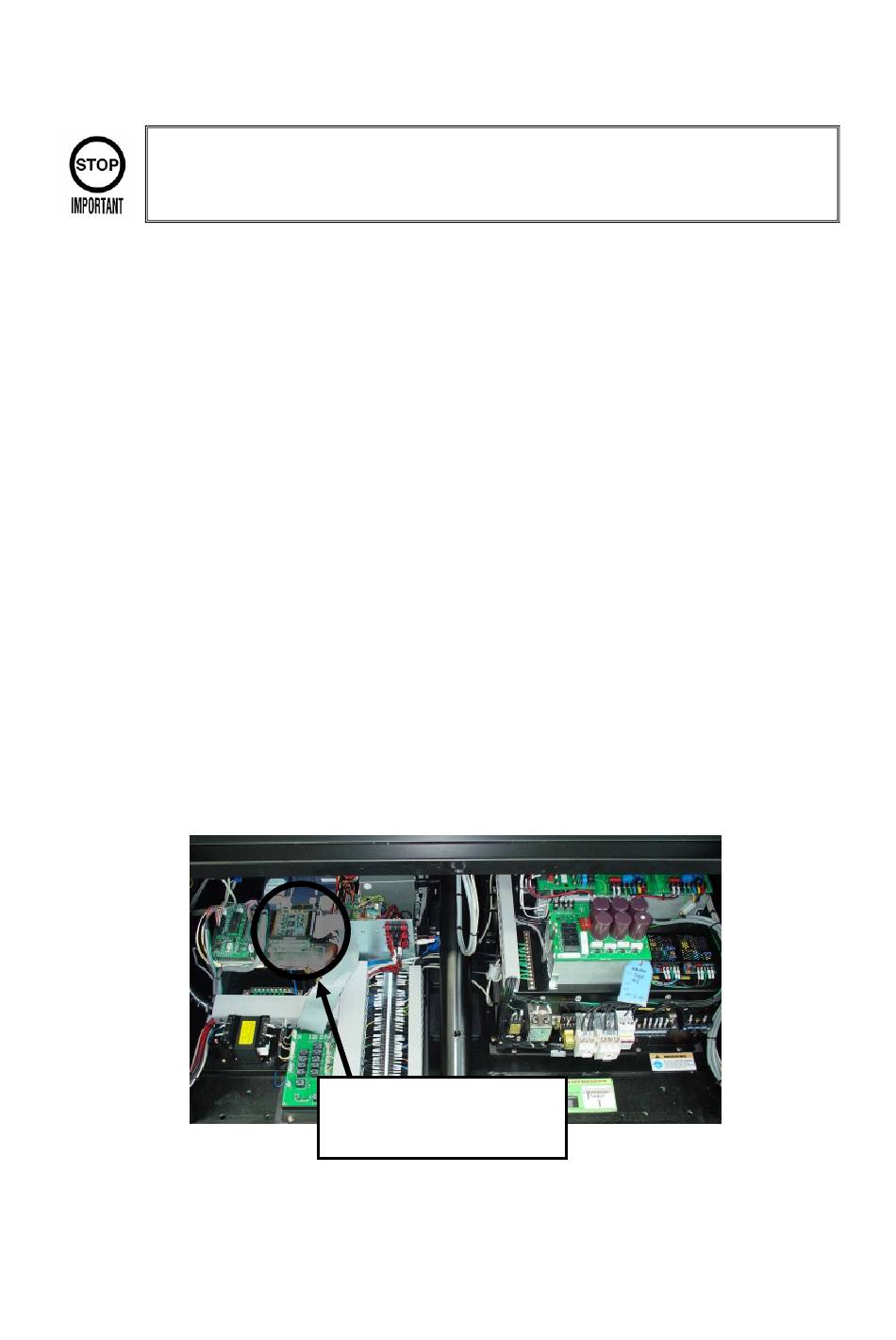

Location of Motion Board
in MSCU
