Simuline Cycraft Installation & User Manual page 27

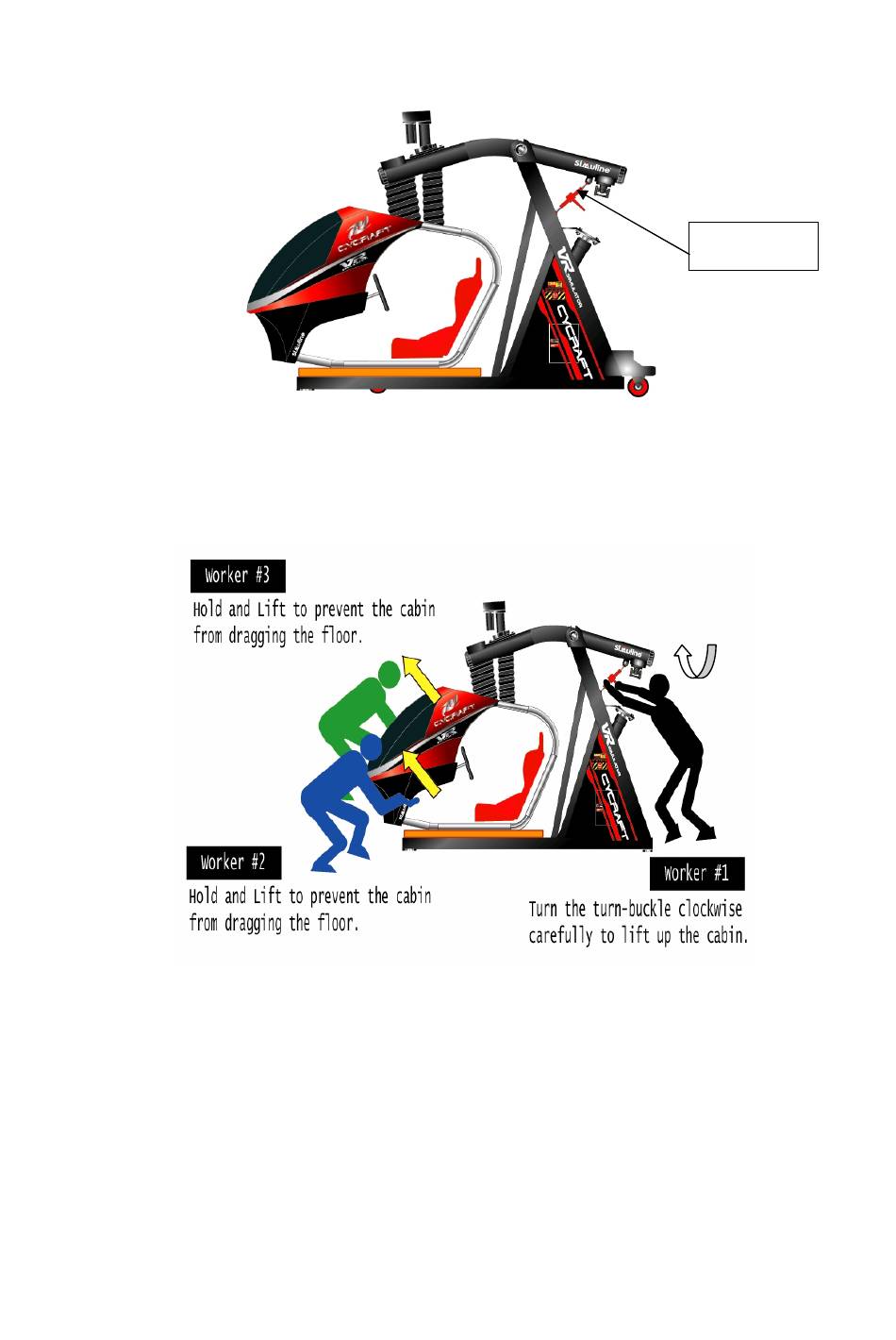

2) Turn-buckle works as a kind of ratchet mechanism. Lower the rear end of the
rocker arm by ratcheting up the turnbuckle clockwise as seen from the rear until
the turnbuckle almost go to its limit.
During this process the cabin will be lifted up. As it lifts up it will simultaneously tip to
wards the front and slide backwards
3) Disassemble the heave actuator holding bracket and free the heave actuator.
Make sure the actuator is supported so that it does not fall over to one side when
the holding bracket is disassembled.
4) Rotate the actuator piston counterclockwise as seen from the top to extend the
actuator. Match the 4 bolt holes of the flange and rocker arm mating part close
Page 27
Turnbuckle
