Simuline Cycraft Installation & User Manual page 31

5.8 ASSEMBLING THE BOARDING STEP AND COIN CHUTE TOWER
The boarding step and coin chute tower should be assembled at this stage so that
electrical connections to the coin mechanism can be made and functional testing of
Cycraft can be performed before final assembly of the fence.
boarding step and coin chute tower, follow the next procedure.

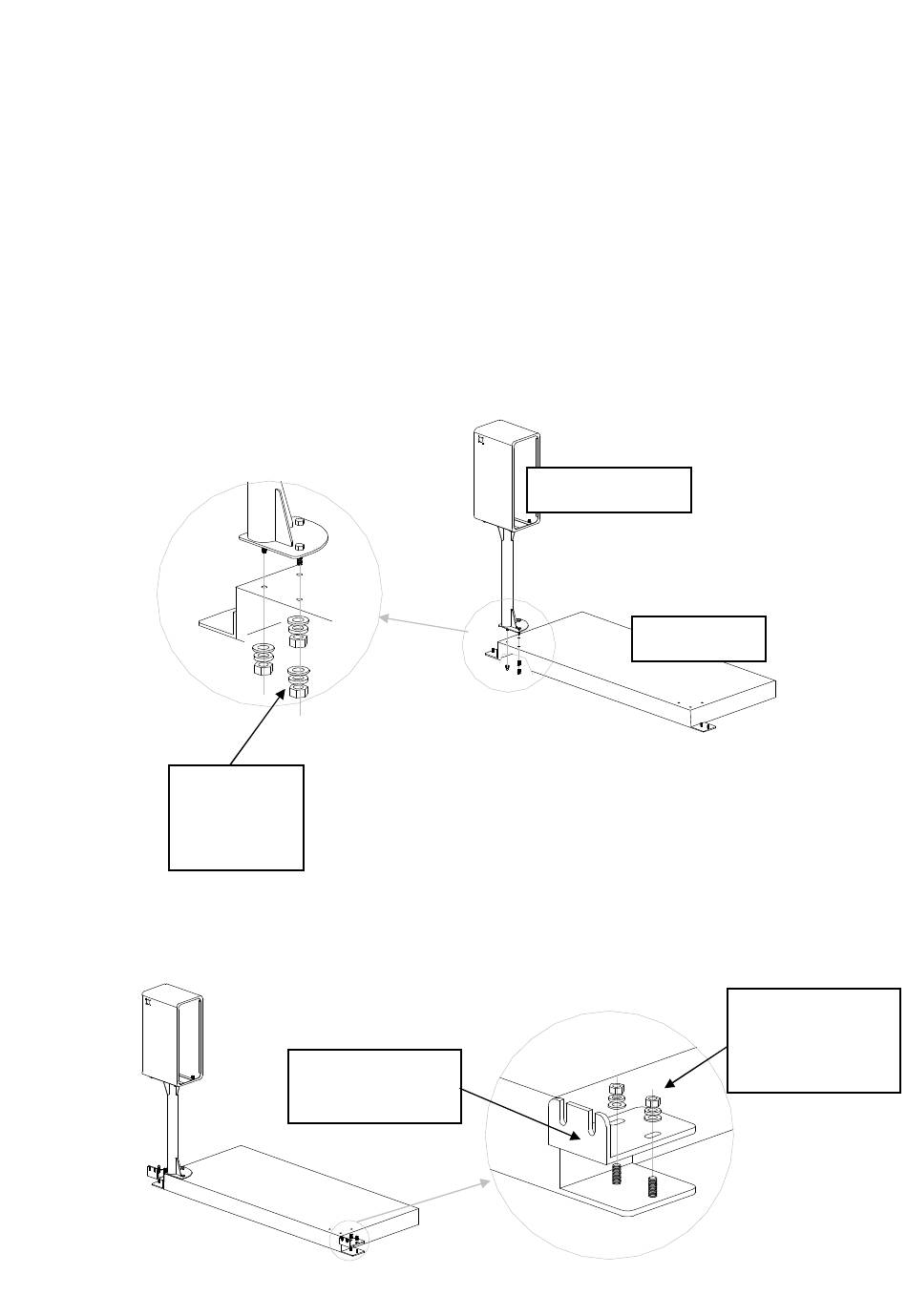

1) Attach the coin chute tower on the boarding step.
Flat Washer
Spring
Washer
2) Then attach two boarding step joint bracket to the boarding step.
Boarding Step Joint
Bracket
Page 31
To assemble the
Coin Chute Tower
Boarding Step
Hex head Bolt M8
Spring Washer
Flat Washer
