5.12 ASSEMBLING THE FENCE

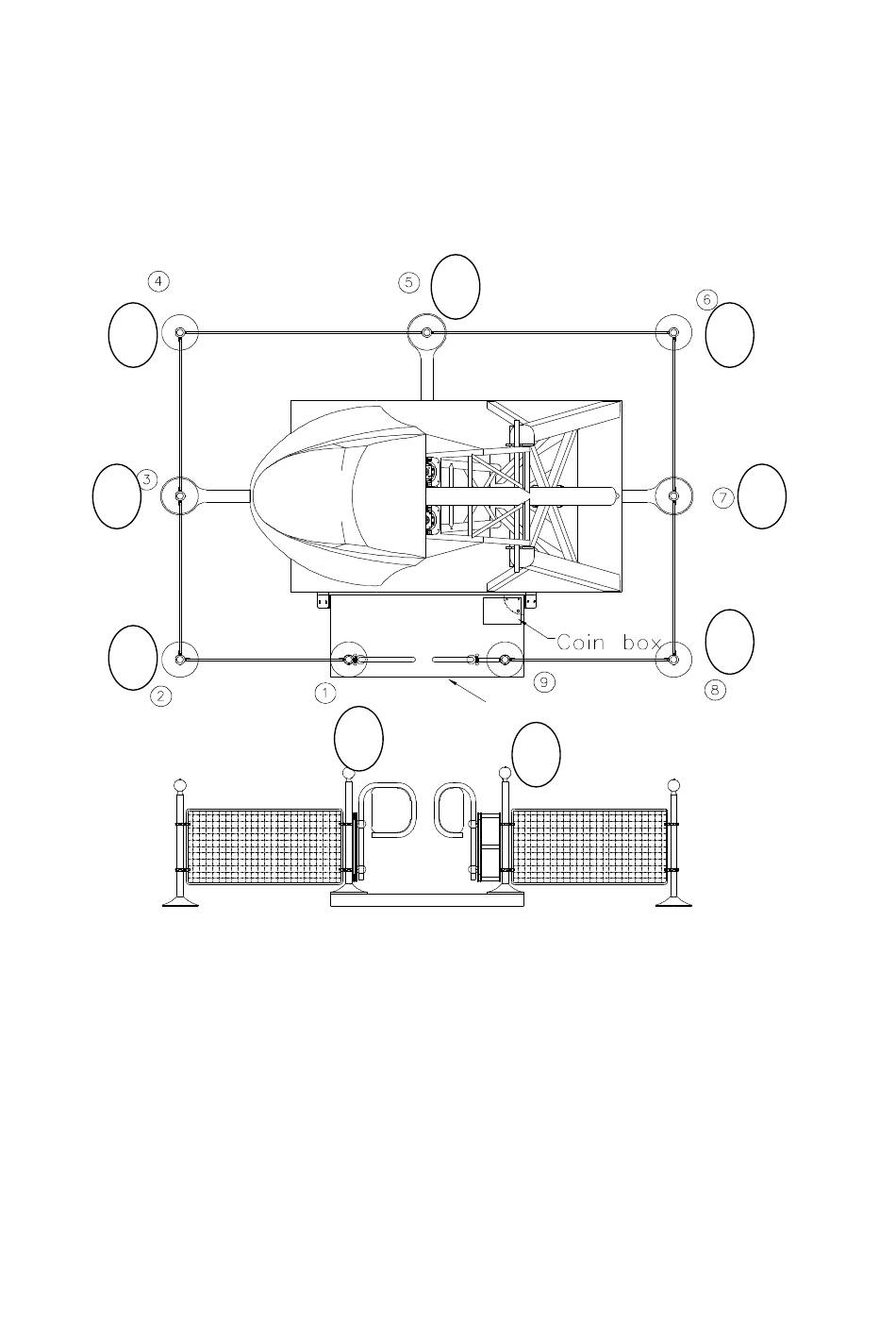

1) Confirm that boarding step is fitting to the base frame of main machine with no gap
to the ground and locate the 9 fence poles around Cycraft as shown.
A
C
A
2) Assemble the pole and mesh from the pole no.1 to the pole no.9 in the order of
clockwise. It is needed to be aware that there are 3 kinds of poles. Type B (no 1,9)
are the gate door poles with lower the junction ring other than poles. Others are
Type A. You can identify the Type Bs with the position of O-ring which is lower than
that of Type As. Type C are when fitted to base plate bracket which are screwed
on to the machine. Only three positions are required (no 3,5,7) No7 is the short
base and no 3 is the longest base plate bracket
3) The fence U bracket assembling work is as shown below. Perform total 32
assembling of U bracket and 4 door gate bolt fixings.
