E. Note that making the sensor too sensitive (i.e. bending the lever up too much)
will cause the sensor to activate due to the own weight of the floor plate or
make it so sensitive that slight motions or vibrations during play will trip the
sensor. Making the sensor too insensitive (i.e. bending the lever down too
much) will cause the sensor to not activate even when the floor plate if fully
pressed down.

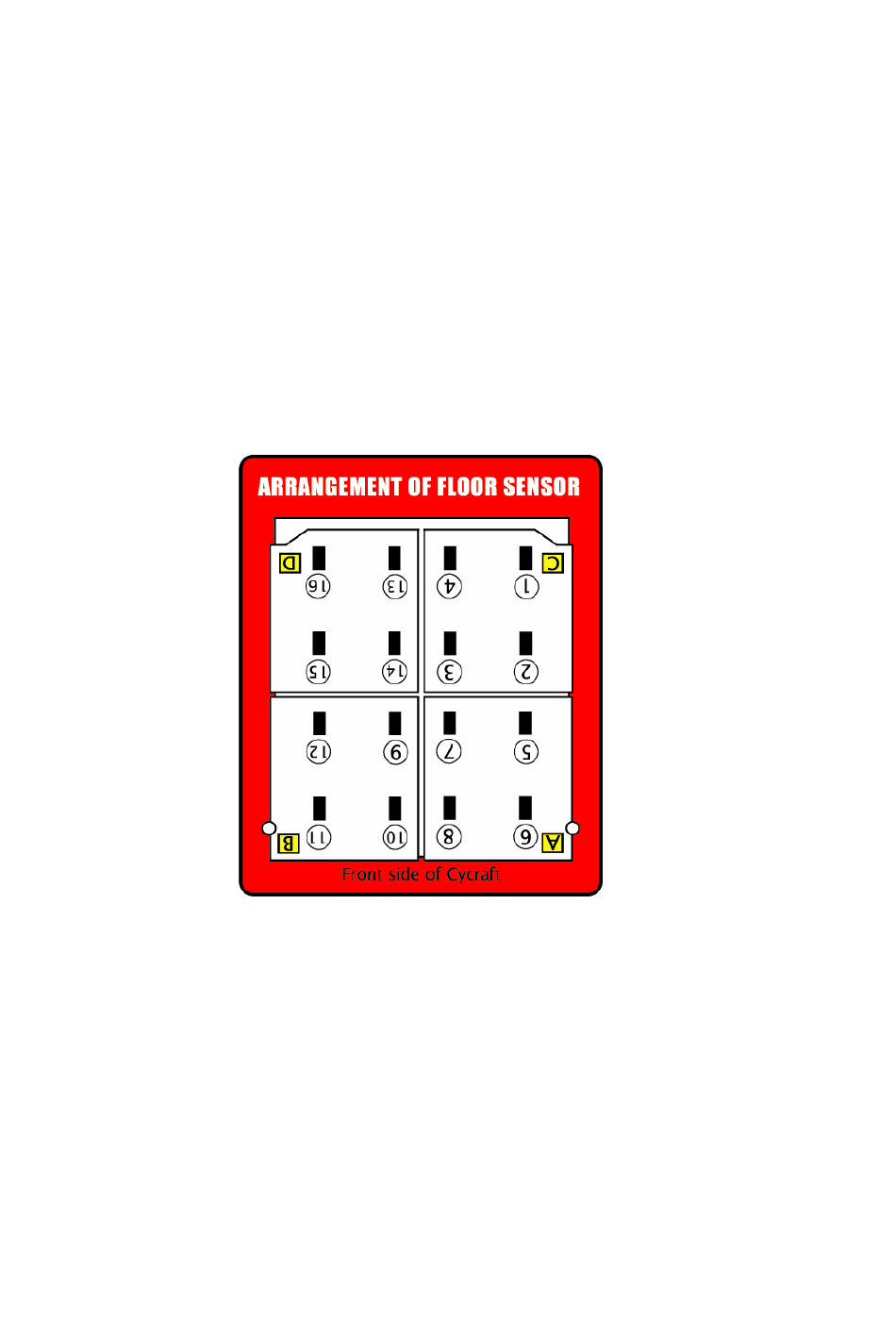

F. You can find the micro switch's number on the wiring diagram using the sensor
arrangement figure as shown below.
