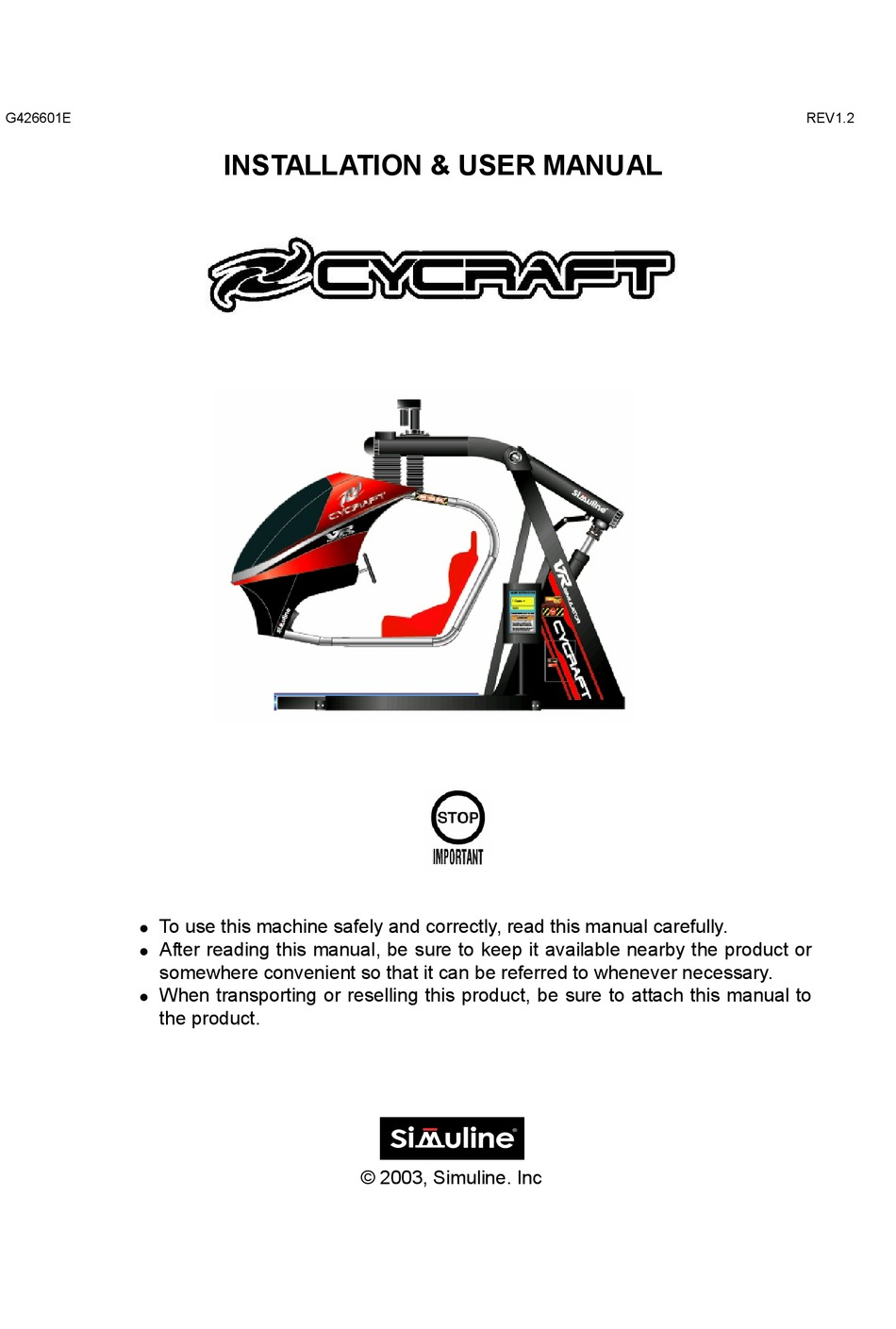

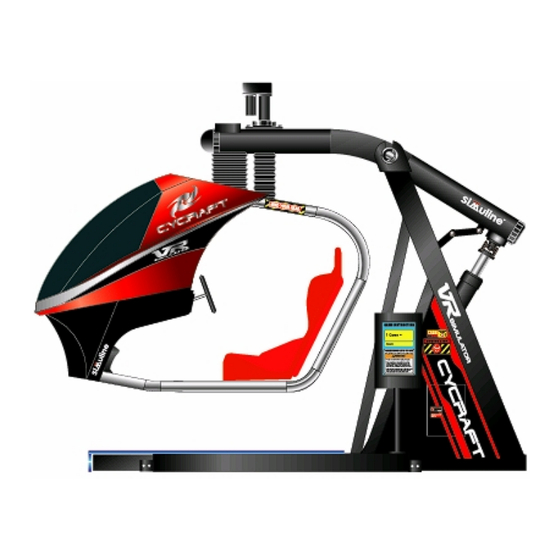

G426601E
To use this machine safely and correctly, read this manual carefully.
l
After reading this manual, be sure to keep it available nearby the product or
l
somewhere convenient so that it can be referred to whenever necessary.
When transporting or reselling this product, be sure to attach this manual to
l
the product.
INSTALLATION & USER MANUAL
© 2003, Simuline. Inc
REV1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cycraft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simuline Cycraft

Summary of Contents for Simuline Cycraft

  • Page 1 After reading this manual, be sure to keep it available nearby the product or somewhere convenient so that it can be referred to whenever necessary. When transporting or reselling this product, be sure to attach this manual to the product. © 2003, Simuline. Inc...
  • Page 2 BEFORE USING THIS PRODUCT Thank you for purchasing our arcade use simulator equipment “CYCRAFT” game machine. Safety notes: To ensure the safe usage of the product, be sure to read the following before using this product. The following instructions are intended for the users, operators and the personnel in charge of the operation of the product.
  • Page 3 Simuline given in this manual. SIMULINE shall not be held responsible for any accidents, compensation for damage to a third party, resulting from unauthorized changes and modifications to the product.
  • Page 4 This manual is intended to provide detailed descriptions together with all the necessary information covering the general operation of electronic assemblies, electro mechanicals, servicing control, spare parts, etc. for the product, CYCRAFT. This manual is intended for the owners, personnel and managers in charge of operation of the product.
  • Page 5 Modified Date: December 2003 (gb / sk / esk) O/S Version: 1.64 Game Version: BGD0 PLACE TO BE CONTACTED: For necessary repairs and parts, contact the Distributor whom you purchased your Cycraft. SIMULINE, INC / CUSTOMER SERVICE 461-28 Jeon-Min-Dong Yu-Sung-Gu...

  • Page 6: Table Of Contents

    5.10 CONNECTING THE ELECTRIC POWER SOURCE 5.11 POST INSTALLATION TESTING AND INSPECTION 5.11.1 TESTING AND ALIGNING THE PHOTO SENSORS 5.11.2 TESTING AND ADJUSTING THE FLOOR PRESSURE SENSOR 5.12 ASSEMBLING THE FENCE 5.13 FIGURE OF CYCRAFT AFTER FINISHING THE INSTALLATION WORK Page 6...
  • Page 7 6. OPERATION & ADJUSTMENT INSTRUCTION DESCRIPTION OF INDICATORS AND SWITCHES ON THE OPERATION PANEL TURNING THE POWER ON AND OFF ADJUSTMENT OF THE SPEAKER VOLUMES SETTING VIDEO MONITOR PARAMETERS USING THE LCD PANEL TO SET CONFIGURATIONS 6.5.1 SETTING THE SAFETY SENSOR PARAMETERS 6.5.2 SETTING TCP/IP CONFIGURATION 6.5.3 VIEWING THE TOTAL COIN COUNT (STATISTICS) SETTING THE COIN AND CREDIT CONFIGURATION...

  • Page 8: Product Specification

    1. PRODUCT SPECIFICATIONS 1.1 GENERAL SPECIFICATIONS When the cabin is at the power- on position Approximately 2200 mm 2150 mm 2870 mm 1000 mm 4050 mm 2900 mm Page 8...

  • Page 9: Motion System Description

    120 Kg Compartment Semi-enclosed with seat belt 1.2 MOTION SYSTEM DESCRIPTION The motion actuation system used in Cycraft is a very unique, high tech system that distinguishes Cycraft from other simulator products. The motion system has the following special features: Fully electric motion system: The actuators are fully Electrical (no hydraulics), making it superior in terms of maintainability and transportability.
  • Page 10 3 DOF Motion Systems The heave actuator produces up/down heave motion by rocking the rocker arm, which holds the passenger cabin. The two suspended actuators on the rocker arm assembly produce the relative pitch and roll motions Separate controllers inside the MSCU control each of the linear actuators. The controllers are in turn connected to the motion controller board, which generates the commands for each actuator via high-speed industrial Control Area Network (CAN) cable.
  • Page 11 Board #2 LAN cable Toshiba Sega Game System NAOMI 2 or Triforce, Servo Control Dimm Bd, GD Rom Board #1 Drive, I/O Bd, PSU. I / O Board Game Audio Monitor System Pedal Handle SYSTEM DIAGRAM OF CYCRAFT Page 11...
  • Page 12 Seat Belt Sensor: The seat belt buckle in Cycraft is equipped with a sensor that detects when the seat belt is fastened or not. Cycraft will not start the game unless the seat belt is fastened properly. Also, if the seat belt is unfastened during the game, the motion will stop until it is re-fastened.
  • Page 13 Also, it is dynamically much more stable by making it very difficult to tip the cabin over to it’s side. Thus, the Cycraft structural design is inherently much safer than conventional motion simulators.

  • Page 14: Initial Inspection

    INITIAL INSPECTION 2.1 PACKING LIST CYCRAFT PACKING LIST (1/2) CYCRAFT PACKING LIST (2/2) Item Description Item Description CYCRAFT Main 1 ea Hex Bolt M8x20L 10 ea Body Rear Caster (R) 1 ea Hex Nut M8 7 ea Rear Caster (L)
  • Page 15 2.2 GENERAL RECEIVING INSPECTION Only QUALIFIED SERVICE PERSONNEL should carry out inspection. All Simuline products are manufactured so that operation is possible immediately after the proper installation. However, it can be possible that an irregular situation occurs during transport and delivery to prevent this. To verify that transport and delivery has be carried out without irregularity, a proper general receiving inspection should be made as follows: Are then any dented parts or defects (cuts, etc.) on the external surfaces of the...

  • Page 16: Names Of Major Parts

    3. NAMES OF MAJOR PARTS Page 16...
  • Page 17 3 seconds after the switch is released. This button can be used in case of emergency when motion must be stopped. Operator Panel Houses indicators and switches to set and control Cycraft. Refer to Chapter 2 for details. Page 17...
  • Page 18 Safety Photo Sensors & There are 2 photo sensors on each side of the Reflectors outer frame. If any of the sensor lines are obstructed, the simulator will stop in its current orientation until 3 seconds after the removal of the obstruction.

  • Page 19: Transporting And Moving

    4. TRANSPORTING AND MOVING 4.1 EQUIPMENT REQUIRED FOR UNLOADING AND TRANSPORT Equipment Description Purpose Fork Lift Capacity over 1500 kg Lift and transport out of Boom attached fork packing crate. Wood block 10 cm x 10 cm x 100 cm Set under the base frame so that fork can be inserted and...

  • Page 20: Unpacking And Installing Rear Caster Wheels

    1) After the crate is opened, unpack the separate accessories and components so that the main simulator body is accessible. 2) Insert forklift from the rear of Cycraft or from the side. DO NOT INSERT FORKS FROM THE FRONT SIDE. When inserting forks from the side, make sure the forks are positioned to enter the cutoff sections in order to ensure Cycraft does not tip over.
  • Page 21 3) After CAREFULLY taking Cycraft out of the crate, install the rear two wheels by first removing the MSCU cover as shown in the figure below. Note that the front two wheels are already installed. 3 x Hex head Bolt M12 x 35L Socket wrench (19mm) &...

  • Page 22: Moving The Machine

    Be sure to lay the wooden plate between the cabin and the base frame as when Cycraft was delivered. This plate protects the floor sensors and switches during transport.

  • Page 23: Installation Instruction

    5. INSTALLATION INSTRUCTION 5.1 LOCATION REQUIREMENTS 5.1.1 ENVIRONMENT REQUIREMENTS Cycraft is designed for indoor use and should never be installed outdoors. Environment and facility requirements are as follows: Installation location Indoor use only Ambient temperature 5 to 40 C Humidity 10 to 70 % (no condensing) Min.

  • Page 24: Electrical Requirements

    5.1.2 ELECTRICAL REQUIREMENTS The facility should provide the following electrical power outputs for Cycraft: Input Voltage Single Phase AC 200V, 208V, 220V, 230V, 240V Frequency 50 / 60 Hz Rated Current (Max) 8.5 Amp Peak Current (Max) 10 Amp Building Circuit Breaker...

  • Page 25: Steps For Installation

    STEP 10 FENCE ASSEMBLY 5.4 SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT) After Cycraft is placed in location, the level pads must be adjusted correctly to prevent Cycraft from moving about the floor due to its own motion. Cycraft has 3 stationary rubber pads and 4 adjustable level pads as shown.
  • Page 26 2) Lower the 4 adjustable Leg Levelers so that they touch the ground and evenly hold the weight of Cycraft. Do not extend them so much that the central rubber pad is raised from the floor.
  • Page 27 Turnbuckle 2) Turn-buckle works as a kind of ratchet mechanism. Lower the rear end of the rocker arm by ratcheting up the turnbuckle clockwise as seen from the rear until the turnbuckle almost go to its limit. During this process the cabin will be lifted up. As it lifts up it will simultaneously tip to wards the front and slide backwards 3) Disassemble the heave actuator holding bracket and free the heave actuator.
  • Page 28 enough so that bolts can be inserted. It is not necessary to have the flange mated exactly to the rocker arm at this stage. 5) Tighten the four bolts evenly one at a time. The heave actuator piston will extend as the bolts are tightened.
  • Page 29 Longer Link Section Figure Cycraft after assembling heave actuator and safety link assembling 5.7 ASSEMBLING THE FLOOR SENSOR PLATE NEVER go under the cabin to install or service the floor pressure sensor system when the main power is ON. Serious injury can result if the system malfunctions.
  • Page 30 Hexa bolt M8 x 30L Spring Washer Flat Washer Rubber Washer(11*20*3t) DU Bush 10*15 Page 30...
  • Page 31 The boarding step and coin chute tower should be assembled at this stage so that electrical connections to the coin mechanism can be made and functional testing of Cycraft can be performed before final assembly of the fence. To assemble the boarding step and coin chute tower, follow the next procedure.

  • Page 32: Setting The Photo Sensors

    Flat Washer 5.9 SETTING THE PHOTO SENSORS There is a set of photo sensor and reflective plate on each side of Cycraft. Set the photo sensor system as follows: 1) Loosen the setscrews of the reflective plate arms and rotate the arms so that the reflective plates point backwards at 90-degree angles from the sides of Cycraft and tighten the setscrews.

  • Page 33: Coin Mechanism Installation

    Chapter 5.12. 5.9 COIN MECHANISM INSTALLATION Only Qualified Service Personnel should carry out this operation. Cycraft uses the standard coin box faceplate provided by Happ Controls and Sega Enterprise. The compatible model numbers are, HAPPS: Frame 42-3272-00...
  • Page 34 1) Route the bundle of cables into the coin chute tower. Insert the cables through this hole and secure the end of bellows with truss M4 bolts and nuts attached in shipping. Please ensure to use the Rubber Bellows & cable ties supplied with the Cycraft Page 34...
  • Page 35 2) There are 4 electric connectors, the P1 (10 pins), P2 (4 pins), P3 (2 pins) and P4 (2 pins) for Coin Validator / Bill Acceptor & Coin Meter interfacing to the Sega I/O circuit. The pin assignments for each connector are: P4 (2p) P3 (2p) P1 (10p)
  • Page 36 MSCU for your facility power supply voltage. Improper configuration can damage your system permanently. Cycraft is designed to accept the single phase 200V, 208V, 220V, 230V, and 240 VAC, 50/60 Hz power sources to support the different electric power systems in different parts of the world.
  • Page 37 2) Locate the input voltage selection terminal block and the voltage selection wire shown in the picture below. 3) Connect the voltage selection wire to the terminal that matches your facility supply voltage according to the input voltage selection terminal wiring instruction. 4) Locate the power cord connection terminal and connect the two power lines and the earth line of the power cord as shown below.

  • Page 38: Post Installation Testing And Inspection

    6) Go to the Operator Panel (page 44) and verify that the red LED labeled “Main Power” is lighted. Before proceeding to start the power up sequence of Cycraft, operators should familiarize themselves with the switches and controls on the Operator Panel.

  • Page 39: Testing And Aligning The Photo Sensors

    5.11.1 TESTING AND ALIGNING THE PHOTO SENSORS 1) Make sure that the Yellow LED on top of the photo sensor is lighted when there is no obstacle between the photo sensor and the reflective mirror. 2) Tap and slightly shake the photo sensor bar and the reflective mirror bar. Make sure that small vibrations and motion of the photo sensor and the reflective plate does not cause the Yellow LED to instantaneously turn off.

  • Page 40: Testing And Adjusting The Floor Pressure Sensor

    5.11.2 TESTING AND ADJUSTING THE FLOOR PRESSURE SENSOR NEVER go under the cabin to install or service the floor pressure sensor system when the main power is ON. Serious injury can result if the system malfunctions. If it is necessary to work under the cabin, turn the power off and support the cabin by a strong structure if it is necessary to raise it.
  • Page 41 E. Note that making the sensor too sensitive (i.e. bending the lever up too much) will cause the sensor to activate due to the own weight of the floor plate or make it so sensitive that slight motions or vibrations during play will trip the sensor.

  • Page 42: Assembling The Fence

    5.12 ASSEMBLING THE FENCE 1) Confirm that boarding step is fitting to the base frame of main machine with no gap to the ground and locate the 9 fence poles around Cycraft as shown. Boarding Step 2) Assemble the pole and mesh from the pole no.1 to the pole no.9 in the order of clockwise.

  • Page 43: Figure Of Cycraft After Finishing The Installation Work

    Wire Mesh Pole U Bracket Tool : Hexa Key 5 mm 5.14 FIGURE OF CYCRAFT AFTER FINISHING THE INSTALLATION WORK Figure of Power-ON position Page 43...

  • Page 44: Description Of Indicators And Switches On The Operation Panel

    MSCU CABIN CONTROL SAFETY SEAT NORMAL DRIVING ERROR SENSOR BELT UPS OFF MAINTENANCE L-VOL R-VOL W-VOL S P E A K E R POWER CUTOFF SWITCH DISPLAY BUZZER MENU/SET DOWN SYSTEM CABIN SYSTEM ON SHUTDOWN SERVICE TEST Simuline Page 44...
  • Page 45 Item Description This push button switch cuts off the main power to the Power Cutoff Cycraft. It should be used in such emergency Switch situations as when a fire breaks out in the system. Note that pressing this switch will cause the cabin to glide down to the un-powered rest position.
  • Page 46 This button is used to configure the game computer. Test Button Refer to the game computer manual for further information. This switch turns on and off the power supply to the 29” Cabin Power Switch monitor and speaker amp. and other components inside the Cabin.

  • Page 47: Turning The Power On And Off

    The extra weight of the passenger can cause a fault in the power ON sequence. To power ON Cycraft, switch the cabin power switch ON and press the green “SYSTEM ON” button on the operator panel for about 3 seconds. The power up...
  • Page 48 INDICATOR Items (page 45) CONDITION REMARK Power Pilot Lamps All 4 l a m ps Cycraft Sets OK ON (Green) Normal LED (Green) ON (Green) Will turn off when driving starts Driving LED (Green) Will turn on when driving starts...

  • Page 49: Adjustment Of The Speaker Volumes

    6.3 ADJUSTMENT OF THE SPEAKER VOLUMES Cycraft has 5 speakers installed in the cabin – 2 front stereo speakers on each side of the monitor, 2 rear stereo speakers in the chair shoulder area, and 1 woofer speaker located behind the brake and accelerator pedals. Three knobs are provided on the Operator Panel to set the front, rear, and woofer speaker volumes independently.

  • Page 50: Using The Lcd Panel To Set Configurations

    VIDEO Control Menu Set The brightness, contrast, color, alignment, sharpness, and degaussing settings for the cabin graphics monitor can be adjusted by using the monitor setting panel located in the upper left had side of the front monitor panel. To access the panel, first remove the two screws on the panel cover.

  • Page 51: Setting The Safety Sensor Parameters

    [MAINTENANCE MODE ] =>1. DIOTEST 2. MOTION TEST 3. SETUP TCP/IP 4. SENSOR USAGE 5. STATISTICS 6. MOTION LEVEL 7. FALLING DETECT 8. EXIT Configuration of LCD Main Menu All settings through the LCD panel can be made only when the system is powered up in the “maintenance mode”.

  • Page 52: Setting Tcp/Ip Configuration

    Simuline Inc. will not be liable for any accidents or damages resulting from operation of Cycraft with any of the safety features disabled.
  • Page 53 6.5.3 VIEWING THE TOTAL GAME MOTIONS COUNT (STATISTICS) The total number of games with motions accepted by Cycraft after production can be viewed by selecting the “5. Statistics” item from the configuration main menu. 6.5.4 TESTING THE DIGITAL INPUT/OUTPUT CHANNELS The digital input/output (DIO) channels in Cycraft can be tested for functionality by using the LCD panel on the Operator Panel.

  • Page 54: Setting The Coin And Credit Configuration

    After finishing the test, you should press the shutdown SW to finalizing the test. 6.5.6 MOTION LEVEL This is only use for Simuline. Default factory set is 1. Do not change the value without request from Simuline. 6.5.7 FALLING DETECT This is only use for Simuline.

  • Page 55: Game Play Operation

    The operator must make sure that all the safety features are functioning correctly before accepting passengers. Manufacturer shall not be held liable for damages and claims due to operation of Cycraft without all safety features operating properly. Make sure that all safety sensor functions are operating properly. To start the game, player must first insert the correct amount of coins, enter the cabin and put on the seat belt.

  • Page 56: Routine Maintenance

    Routine maintenance and inspection of Cycraft should be carried out to ensure safe operation and longevity of the machine. Contact your distributor or the manufacturer for any instructions beyond those given in the manuals and for any questions regarding maintenance and repair procedures.

  • Page 57: Inspection Of Critical Bolts And Connections

    7.2 INSPECTION OF CRITICAL BOLTS AND CONNECTIONS The above figures indicate the location of critical bolts on Cycraft. These bolts hold up the cabin and can cause the cabin to drop if they come loose. They are marked with a white line after assembly so that misaligned marking lines can identify loose bolts easily.
  • Page 58 Inspection Part Picture How to check Point Hexahead bolt M12 x 8 points Lower joint of heave actuator is inside of MSCU so in order to inspect the bolts, the MSCU cover must be removed. Hexahead bolt M12 x 8 points Hexahead bolt M12 x 4 points Hexahead bolt M10 x 8 points Hexahead bolt M10 x 4 points (Lower)

  • Page 59: Verification Of Snap Rings

    7.3 VERIFICATION OF SNAP RINGS The universal bearings have two snap rings each which prevent the actual bearing SNAP RING from popping out of its cage. Verify that the snap rings are lodged securely in their respective grooves. If any appear to be loose, push them back in place using a screw driver or other sharp object and check daily to make sure the problem does not repeat.

  • Page 60: Cleaning The Mscu Air Filters And Fan

    Visually inspect both of the belts for wear or tear. If any damage to the belt is discovered, the belt must be replaced. Check the tension of the belt. If the belt is loose, it must be tightened. The procedure to replace and tighten the belt is described in the Installation and Service manual.

  • Page 61: Lubricating The Actuators

    7.7 LUBRICATING THE ACTUATORS This maintenance work should be performed every 6 months. 1) Prepare grease gun with grease specified as below or equivalent: KLUBER HIMONAX WS433 2) Take off the actuator bellows and bearing covers and identify the grease nipples as shown in the figure below: ACTUATOR GREASE NIPPLE POSITIONS...

  • Page 62: Lubricating The Joints

    Part Picture Amount of Grease Heave Actuator Cylinder 60 grams Top Actuators Cylinder 30 grams Top Actuators Bearing 10 grams Wipe away any excessive grease. Play the game for at least three games and wipe away all excessive grease. Replace all covers and bellows. 7.8 LUBRICATING THE JOINTS This maintenance work should be performed every 18 months.
  • Page 63 JOINT GREASE NIPPLE POSITIONS 3) Inject grease in the amounts given in the table below for each of the components Part Picture Amount of Grease H e a v e Actuator 5 grams Universal joint (Upper) H e a v e Actuator 5 grams Universal Joint (Lower)
  • Page 64 Top Actuator Gi 5 grams mbal Joint Top Actuator Uni 5 grams versal Joint Central Universal 5 grams Joint 4) Wipe away any excessive grease. 5) Play the game for at least three games and wipe away all excessive grease. 6) Replace all covers and bellows.

  • Page 65: Exchanging The Compact Flash Card

    OFF and disconnected before attempting any work. 8.1 EXCHANGING THE COMPACT FLASH CARD Cycraft’s motion board inside the MSCU is programmed to log any occurrence of errors with relevant system status data onto a compact flash card.
  • Page 66 Only qualified maintenance personnel or serviceman should carry out replacement work. Replacement procedures of components and parts are mostly straight forward. However, if any questions arise or additional information is required, contact your distributor or Simuline Inc. Page 66...
  • Page 67 SCU Session MCU Session SERVO CONTROL BOARD 2 SERVO CONTROL BOARD 3 SERVO CONTROL BOARD 1 POWER BOARD SW REGU 15V FOR MCU SW REGU 5V FOR MCU NOISE FILTER MAIN AC POWER INLET TB MAIN BREAKER INPUT VOLTAGE SELECTION TB Page 67...
  • Page 68 NAOMI2 BD SW REGU FOR JVS GD-ROM DRIVER AUDIO AMP I/O BD FOR JVS MOTION BD MAIN TERMINAL BLOCK POWER SUPPLY FOR AMP SRIP BD Page 68...

  • Page 69: Troubleshooting

    9. TROUBLESHOOTING 9.1 TROUBLESHOOTING TABLE Symptom Probable Cause Remedy The simulator does not move The CAN communication Make sure that the CAN line properly and the LCD screen on line from the motion board is plugged in correctly on the MSCU front panel does not to the MCU is not working both the motion board and show “CAN”...
  • Page 70 properly. Rotate the volume knob on the rear of the right speaker. The LCD screen on the SCU does Motion Board boot-up Open the door on the rear of not show any message after failure. the SCU. power up. Hook up the extra monitor, Motion base does not Keyboard, mouse to the initialize( when initializing, cabin...

  • Page 71: Controller Error Message Table

    9.2 CONTROLLER ERROR MESSAGE TABLE MCU Error Meaning Remedy Message motor Verify that the ‘Emergency Power Shutoff Switch’ button power on the SCU is released. Verify that circuit breaker inside the MSCU is switched off caused by an error Check the main power source in the building. No Encoder Check the encoder line connections to the actuators and Signal...

  • Page 72: Electric Schematics

    10. ELECTRIC SCHEMATICS The following pages contain the electrical schematic for this machine. 10.1 SCU SCHEMATIC SCHEMATIC 1 HERE Page 72...

  • Page 73: Cabin Schematic

    10.2 Cabin Schematic SCHEMATIC 2 HERE Page 73...

  • Page 74: Mcu Schematic

    10.3 MCU Schematic SCHEMATIC 3 HERE [DOCUMENT END] Page 74...
