5.11.1 TESTING AND ALIGNING THE PHOTO SENSORS

1) Make sure that the Yellow LED on top of the photo sensor is lighted when there is
no obstacle between the photo sensor and the reflective mirror.
2) Tap and slightly shake the photo sensor bar and the reflective mirror bar. Make
sure that small vibrations and motion of the photo sensor and the reflective plate
does not cause the Yellow LED to instantaneously turn off.
3) Make sure that the Yellow LED turns off when an obstacle is placed between the
sensor and reflective plate.
4) If any of the above tests fail, carry out the following to align the sensor and mirror:

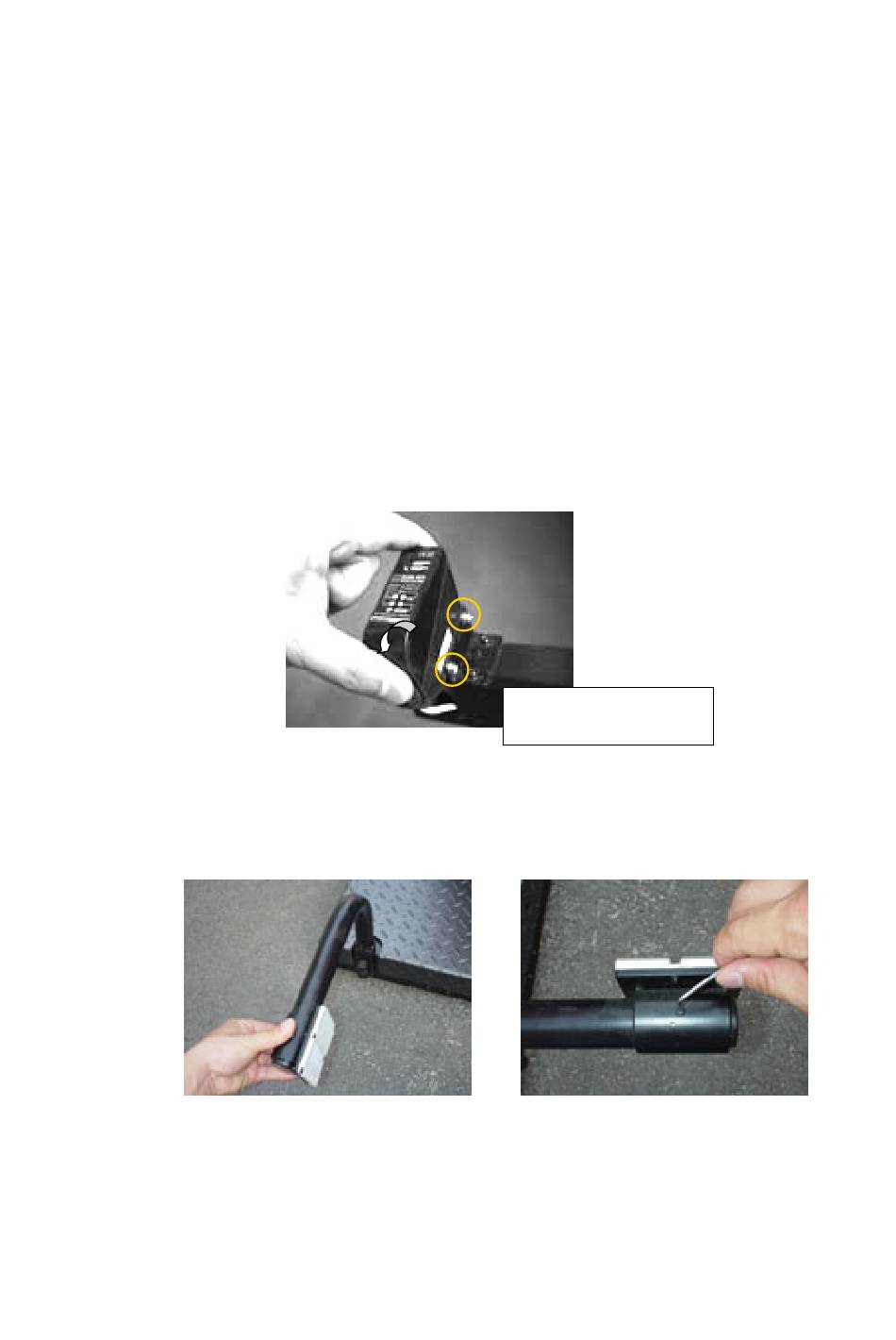

A. Remove the steel cover of the photo sensor and expose the sensor holding
bracket and screws as shown below.
B. Loosen the screws as necessary to align the photo sensor correctly. Adjust
the reflective plate alignment by loosening the setscrews shown below.
C. Align the reflective mirror and the photo sensor correctly by observing the
Yellow LED on top of the photo sensor. Tighten all setscrews when complete.
D. Carry out the tests described in steps 1), 2), and 3) above.
Bolts For Photo sensor
Position Adjustment
