7 Spanner (19 mm)
8 Spanner (13 mm)
9 Spanner (10 mm)
10 Mini Socket Wrench
(5/16 inch)

5.3 STEPS FOR INSTALLATION

Installation should be carried out according to the following steps.
STEP 1

SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)

STEP 2

CONNECTING THE HEAVE ACTUATOR

STEP 3

CONNECTING THE SAFETY LINK

STEP 4 ASSEMBLING THE FLOOR SENSOR PLATE
STEP 5 SETTING THE PHOTO SENSORS
STEP 6 COIN MECHANISM INSTALLATIONS
STEP 7 CONNECTING THE POWER CORD
STEP 8 TESTING AND ALIGNING THE PHOTO SENSORS
STEP 9 TESTING AND ADJUSTING THE FLOOR SENSOR
STEP 10 FENCE ASSEMBLY

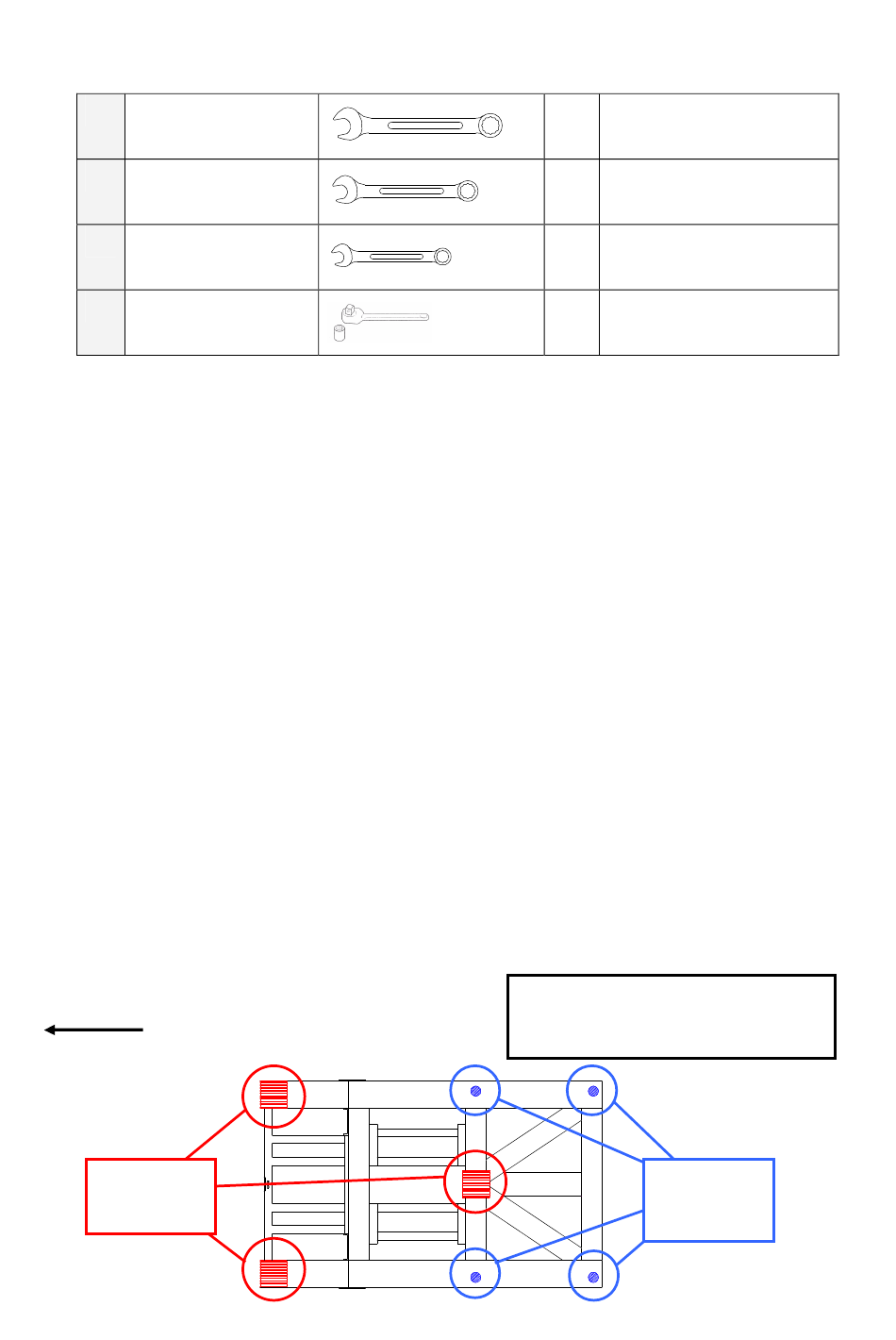

5.4 SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)
After Cycraft is placed in location, the level pads must be adjusted correctly to prevent
Cycraft from moving about the floor due to its own motion. Cycraft has 3 stationary
rubber pads and 4 adjustable level pads as shown.
Front side of CYCRAFT
RUBBER
PAD
POSITION OF 3 PCS RUBBER
PADS & 4 LEVERS
Page 25
2 Heave actuator (M12)
2 Floor sensor plate (M8)
1 Fence mesh (M6)
1 Coin mechanism
(TOP VIEW)
LEG
LEVELER
