Coin Mechanism Installation - Simuline Cycraft Installation & User Manual

2) Loosen the setscrews of the photo sensor arms and unfold them so that the arms
point outward and the photo sensor lens points toward the reflective plate.
3) Tighten the setscrews to secure the arms. Remove the clear protective plastic on
the photo sensor lens if it is still intact.
4) It may be necessary to adjust the photo sensor alignment later on. This process
is described in the Chapter 5.12.

5.9 COIN MECHANISM INSTALLATION

Only Qualified Service Personnel should carry out this operation.
Cycraft uses the standard coin box faceplate provided by Happ Controls and Sega
Enterprise. The compatible model numbers are,
HAPPS: Frame 42-3272-00
SEGA:
electronically compatible. Contact your distributor for coin loom specifications.
The coin chute door and coin mechanism to be used must physically match the above
coin chute frame. When fitting the coin mechanism to the door please refer to the
specific manufacturers installation instructions for that coin mechanism.

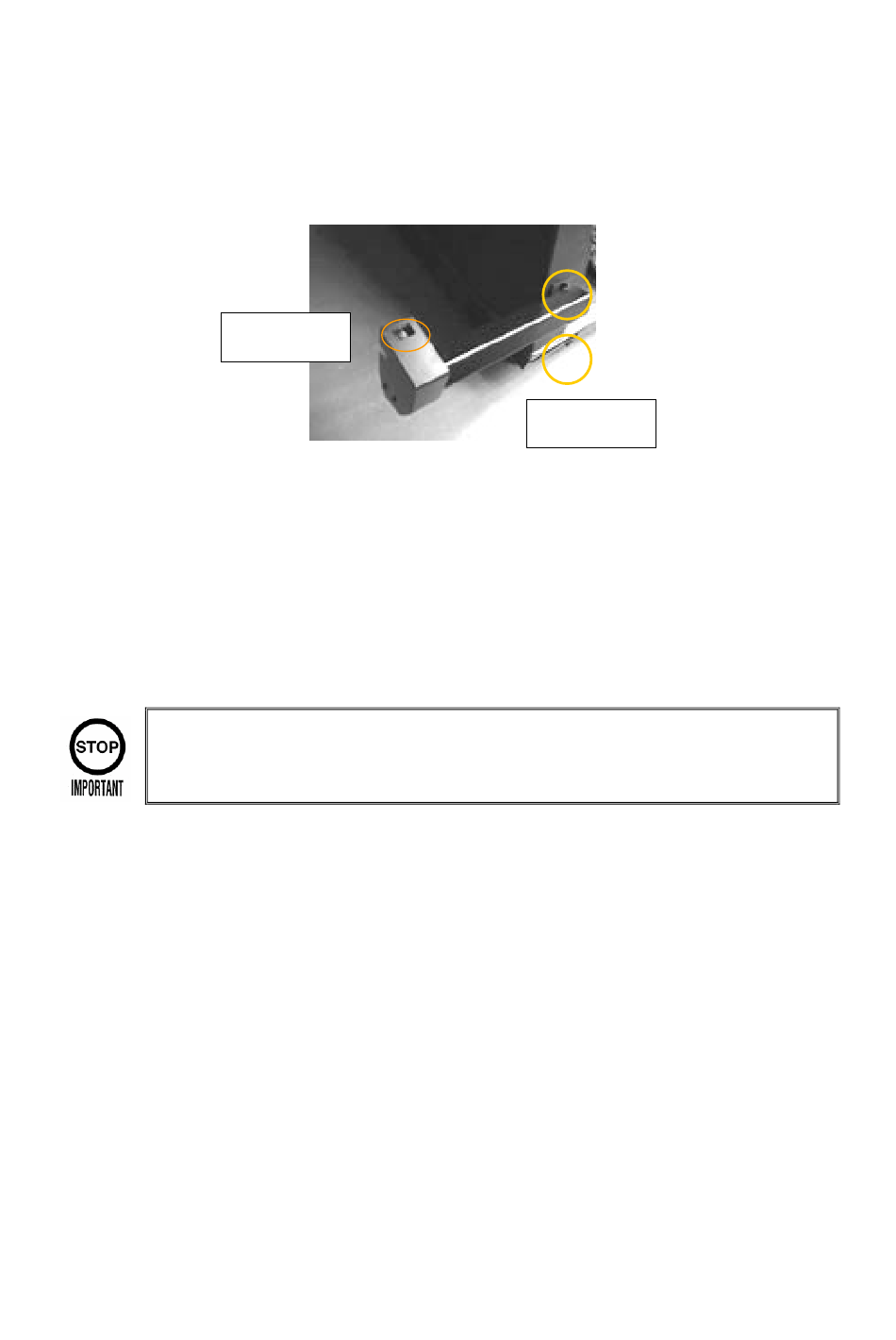

Sensor Lens
Lower Door 42-3245-16
Upper Door 42-7201-00
ASAHI Standard. Also SR3, NRI & Alberici coin validators are
Page 33
Set Screw
