Installation
3
3
L1
L2
L3
PE

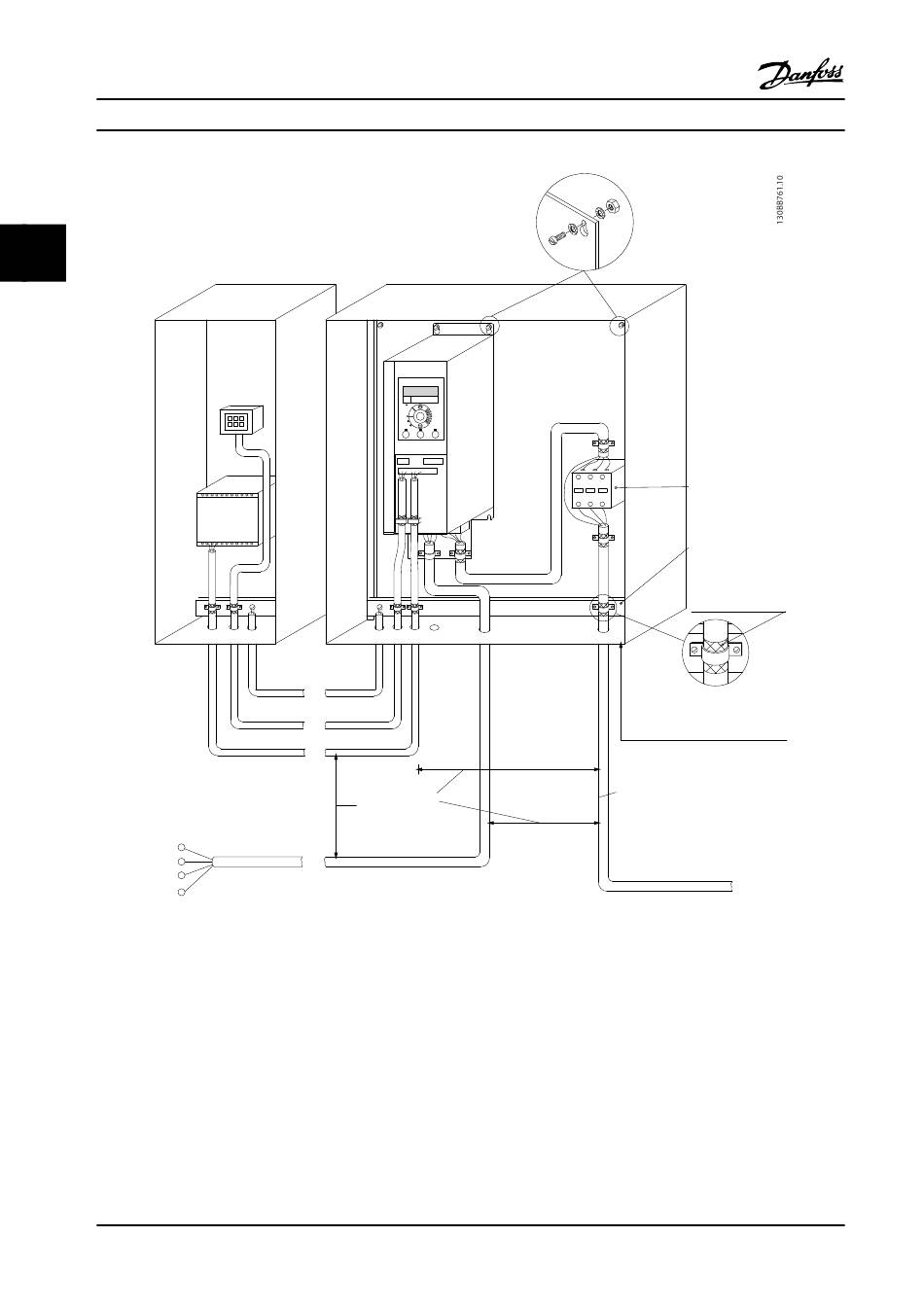

Figure 3.21 EMC-compatible Electrical Installation
For North America, use metal conduits instead of shielded cables.
22
PLC etc.
PLC
Min. 0.0248 in
2
[16 mm
Equalizing cable
Control cables
Line power supply
Reinforced protective ground
Danfoss A/S © 08/2014 All rights reserved.
VLT®HVAC Basic Drive FC 101
Panel
2
]
Min. 7.9 in [200 mm]
between control
cable, line cable
and between line power
motor cable
Output con-
tactor, etc.
Grounding rail
Cable insula-
tion stripped
All cable entries in
one side of panel
Motor cable
Motor, 3 phases and
Protective ground
MG18A622
