Installation
Connecting to line power and motor for H9 enclosure
Figure 3.7 Connecting the Adjustable Frequency Drive to the
Motor, H9 Enclosure
IP20, 600 V, 2.2-7.5 kW (3-10 HP)
Complete the following steps to connect the line cables
for H9 enclosure. Use the tightening torques described in
chapter 3.2.1 Electrical Installation in General.
MG18A622
Quick Guide
1.
MOTOR

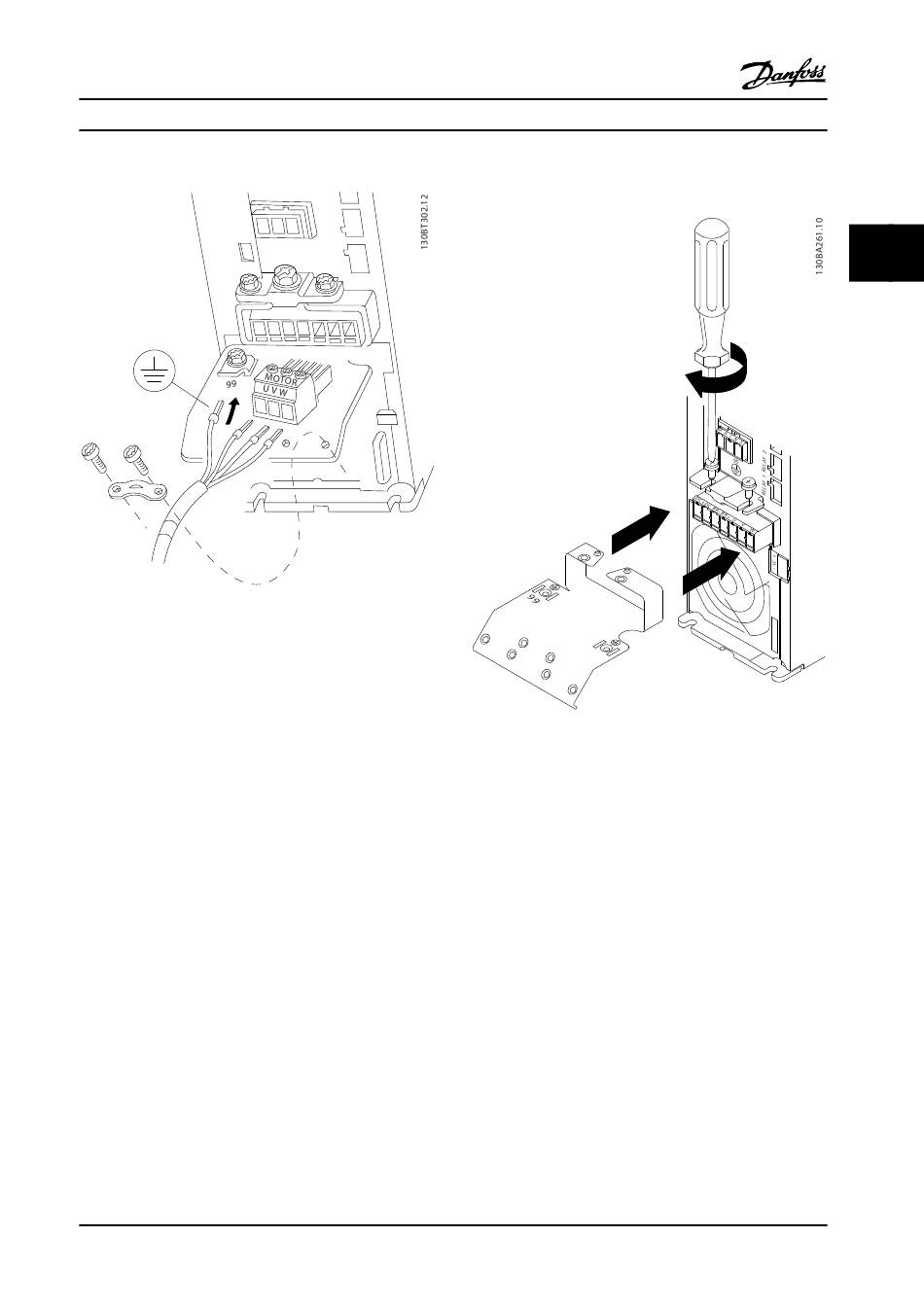

Figure 3.8 Mounting the Mounting Plate
2.
Danfoss A/S © 08/2014 All rights reserved.
Slide the mounting plate into place and tighten
the two screws, as shown in Figure 3.8.
Mount the ground cable, as shown in Figure 3.9.
