LOGGING MENU Page

This page allows the viewing of data or statistical information on the logged data. Press
the
SELECT
button to see the following options:
View Logged Data
View Statistics
View System Faults
Up
Press the
pages.
If there is no data available then
be given to the other two options.
3.6.1

VIEW LOGGED DATA Page

This page allows access to the previous measurement results made by the instrument.
A rolling total of a maximum of 150 samples can be logged, which represents a
measurement history of 150 x (measurement time) in minutes. Sample 1 represents
the most recent measurement taken. After 150 measurements have been logged, the
oldest measurement will be deleted and replaced as each new measurement is logged.
Caution: Changing the moisture value, e.g. from dew point to ppm, will result
in the loss of all logged data.
Access to each measurement sample is via the
may be used to scroll through each page of information. If faster scrolling is required
(to quickly move to another sample) press the
will increase by 10. When the sample number selected is greater than that acquired, or
is greater than 150, Sample 1 will be selected and displayed.
Michell Instruments
Down (
() and
) buttons and the
No Data Available
Sample Number
Time of Sample
LOGGED DATA
NO. 1
MOI
PRES

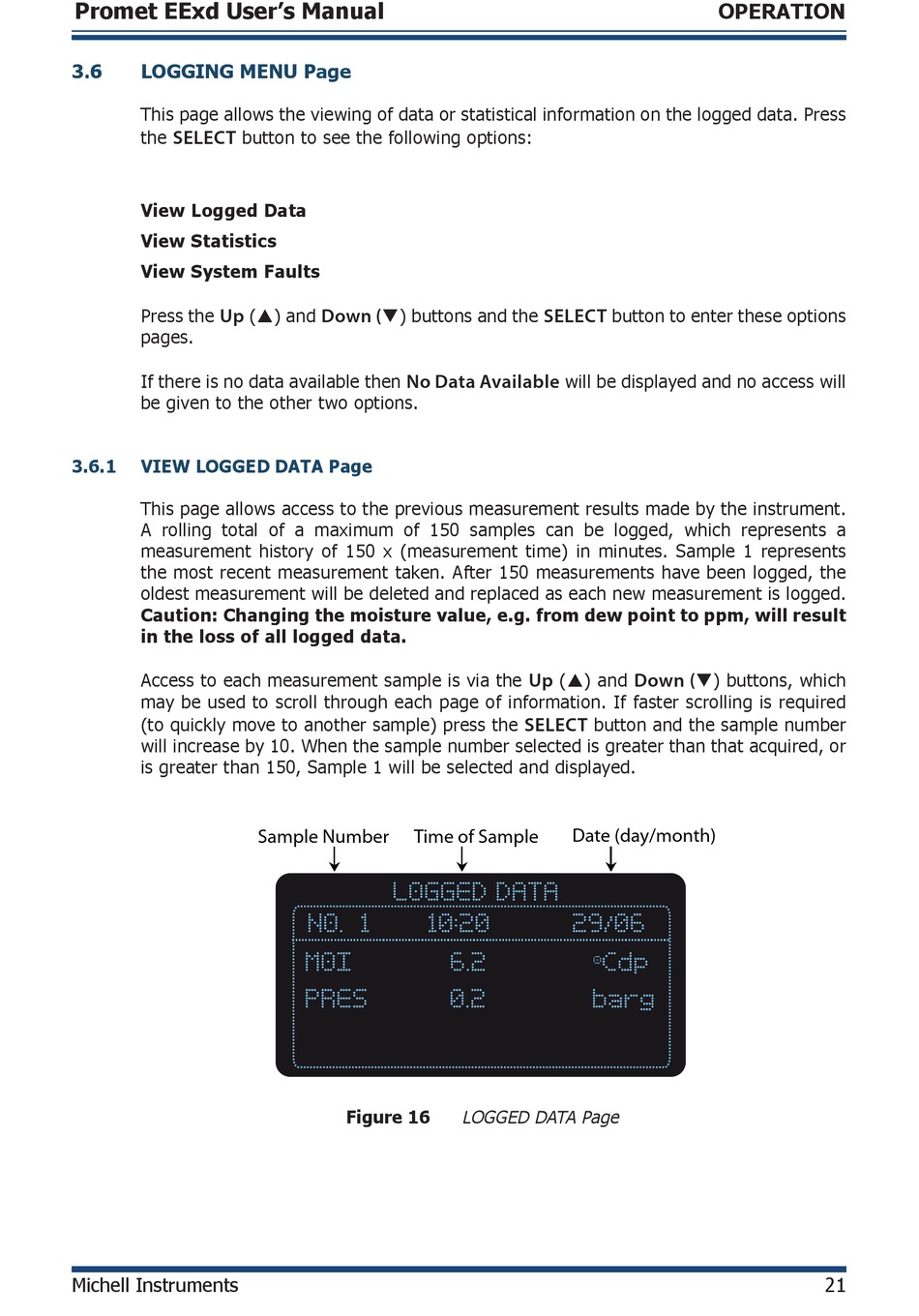

Figure 16
SELECT
will be displayed and no access will
Up
() and
SELECT
button and the sample number
Date (day/month)
10:20
29/06
6.2
o
0.2
barg
LOGGED DATA Page
OPERATION
button to enter these options
Down (
) buttons, which
Cdp
21
