Design and function
TIG welding
5.2.7

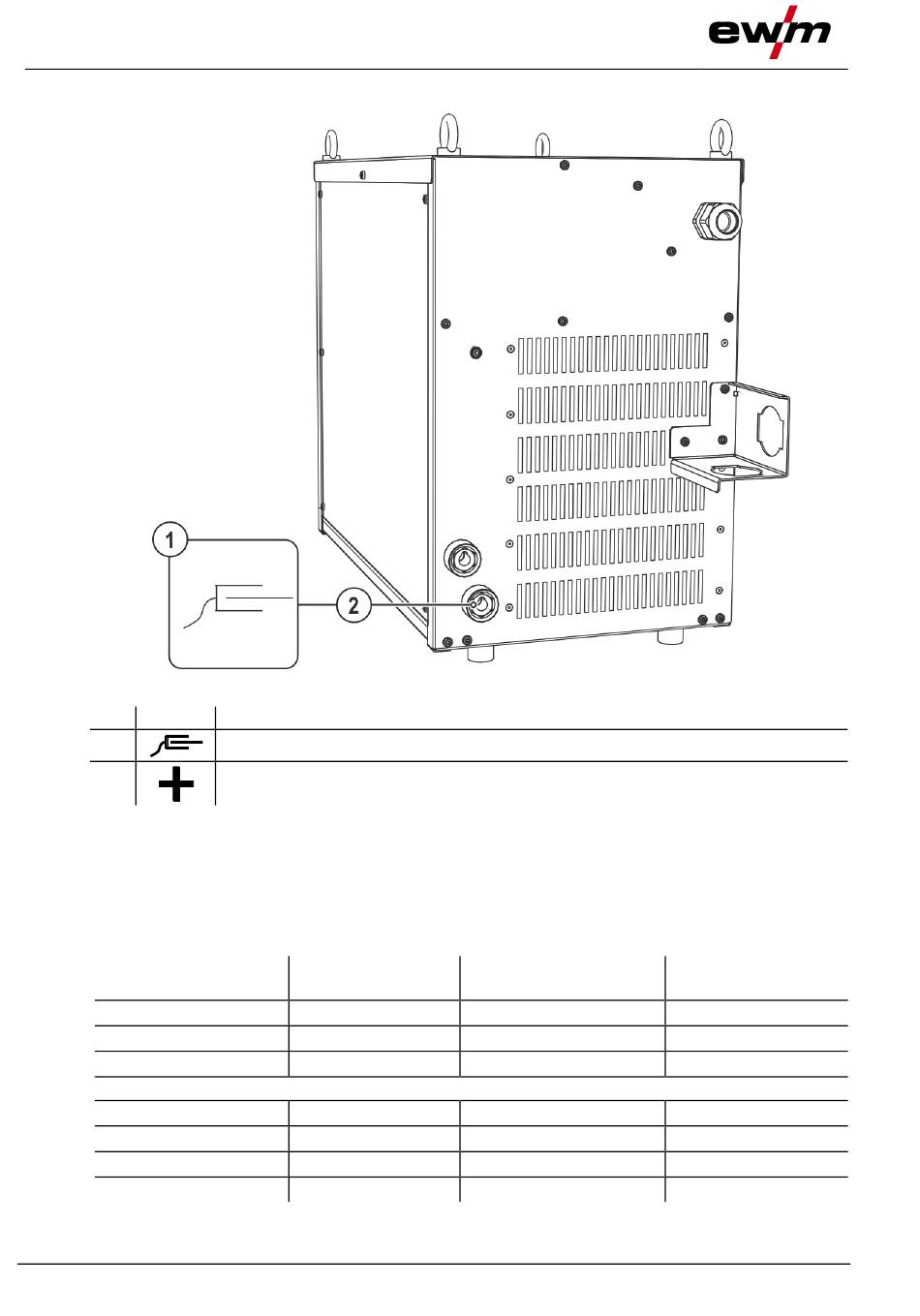

Connection for workpiece lead

Item Symbol
1
2
•
Insert cable plug on the workpiece lead into the connection socket for workpiece lead and lock by
turning to the right.
5.2.8

Welding data display

The following welding parameters can be displayed before (nominal values), during (actual values) or
after welding (hold values):
Parameter
Welding current
Parameter times
Parameter currents
Material thickness
Welding voltage
JOB number
Program number
38
Description 0
Workpiece
Connection socket, "+" welding current
Workpiece connection
Before welding
(nominal values)







Figure 5-12
left-hand display
During welding
(actual values)



right-hand display




After welding
(hold values)







