2.4 Extending Module Connection

®
2N IP Base allows to connect following extending modules:
RFID card reader 125 kHz
RFID card reader 13.56 MHz
Security Relay
Module Bus Interconnection
®
All modules 2N IP Base

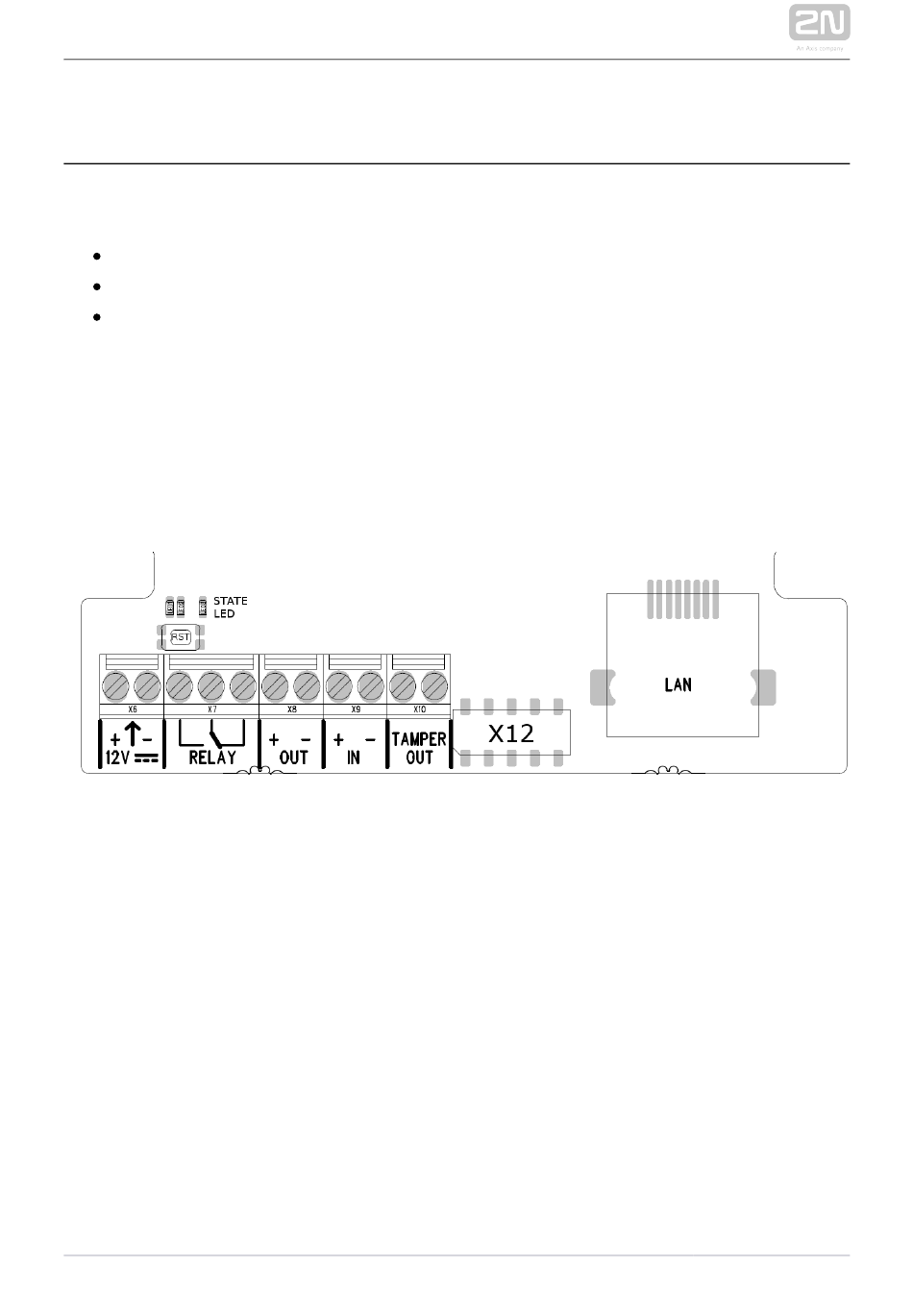

connector is shown in Fig. Before connecting RFID card reader it is suitable to
®
disconnect 2N IP Base
a time.
