Legend
OUT OUT1 active output: 8 up to 12 V DC depending on power supply (PoE: 10 V;
adaptor: power supply voltage minus 2 V), max 600 mA
RELAY Terminal 30 V / 1 A AC/DC NO/NC contact
12V External 12 V / 2 A DC power supply terminals
RESET RESET / FACTORY RESET button
(RST)
LED LED indicators (red – device state / green – eth. link up / yellow – LAN activity)

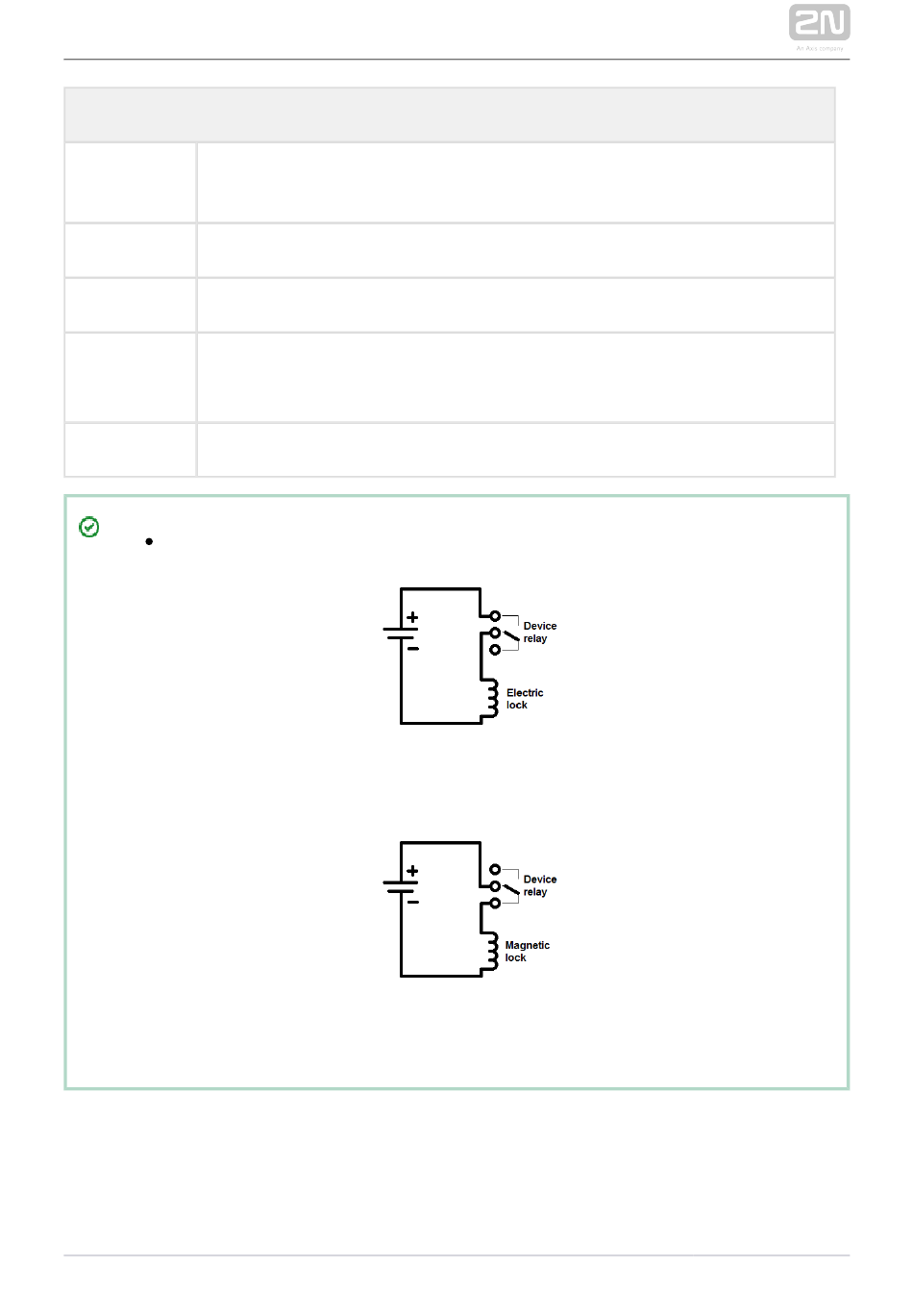

Output wiring diagram for Relay terminals
The electric lock is opened by power supply connection.
The magnetic lock is opened by power supply disconnection.
