Test Mode

Use this option to determine the battery configuration in each
string being tested.

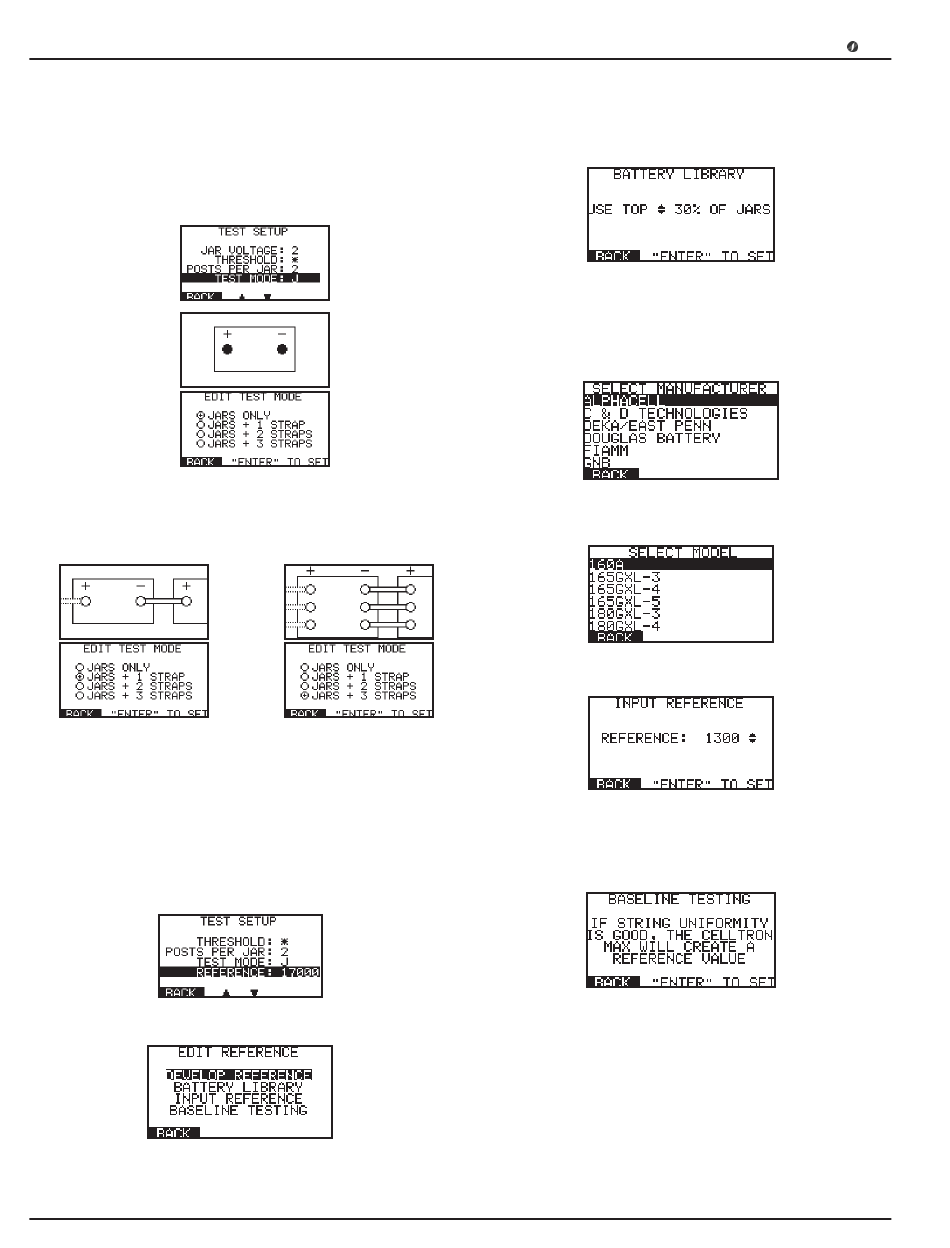

1. Use the ARROW keys to highlight TEST MODE and press
the ENTER key. An EDIT TEST MODE screen appears on
the lower screen.
Use the ARROW keys to highlight battery TEST MODE
2.
configuration and press the ENTER key.

Reference

A reference value can be added by scrolling to the appropriate
value, by choosing a pre-loaded model from the battery
library, or by using the unit to calculate a value based upon
internal analysis of the results.
Use the ARROW keys to highlight REFERENCE and press
1.
the ENTER key.
A screen appears to establish the reference.
www.midtronics.com
Use the ARROW keys to select the method for establishing the
reference and press the ENTER key.
1) DEVELOP REFERENCE SELECTED
Reference is automatically determined from the string
conductance measurements. Use ARROW keys to increment
and decrement % of jars value and press ENTER.
2) BATTERY LIBRARY SELECTED
Use ARROW keys to increment HIGHLIGHT THE BATTERY
MANUFACTURER and press ENTER.
3) INPUT REFERENCE SELECTED
Use ARROW keys to increment or decrement reference value
and press ENTER..
4) BASE LINE TESTING SELECTED
