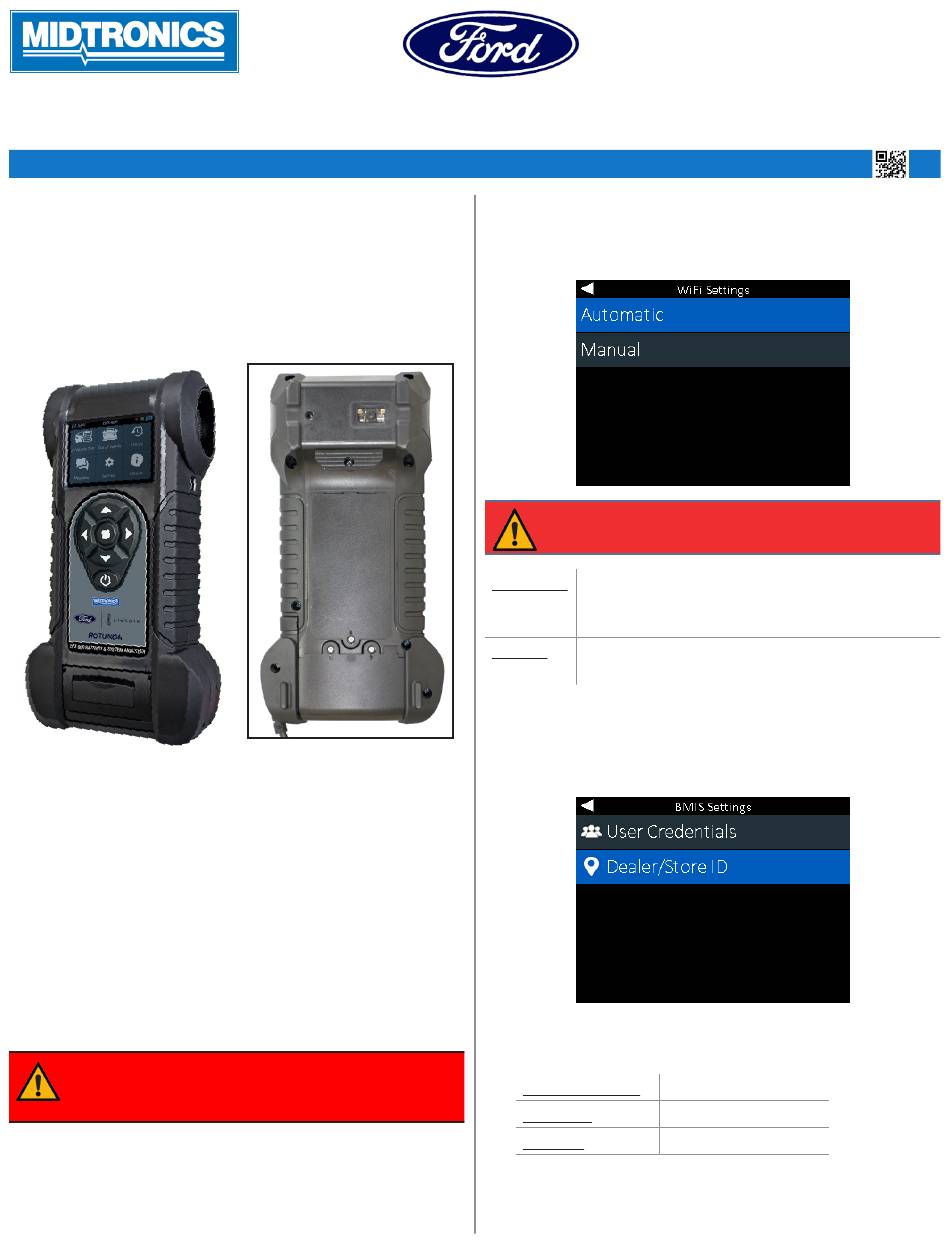

Midtronics CPX-900 Quick Reference Manual

For an online step-by-step guide through the tool's initial setup, please scan the QR code on Page 4:
Important - Before You Start
•
Always follow battery manufacturer instructions and BCI
(Battery Council International) safety recommendations
•
For additonal support go to fordcpx900.midtronics.com
Connections And Data Ports
 
 
 
 
 
Display Screen
 
Cooling Vent
 
Arrow Keys & Power Button
 
Micro-USB Port
 
Thermal Printer
Conductance Profiling
Conductance Profiling™ technology determines battery cranking
capability and identifies batteries with poor Reserve Capacity. This
additional battery analysis can take up to 60 seconds to complete.
IMPORTANT: Always begin each test by connecting the
tester clamps to the battery being tested. The testing
process begins as soon as the clamps are connected.
CPX-900
 
 
 
 
 
 
 
Temperature Sensor
 
VIN Barcode Scanner
 
Clamp Tabs
 
User-replacable AA batteries
 
User-replaceable test clamps

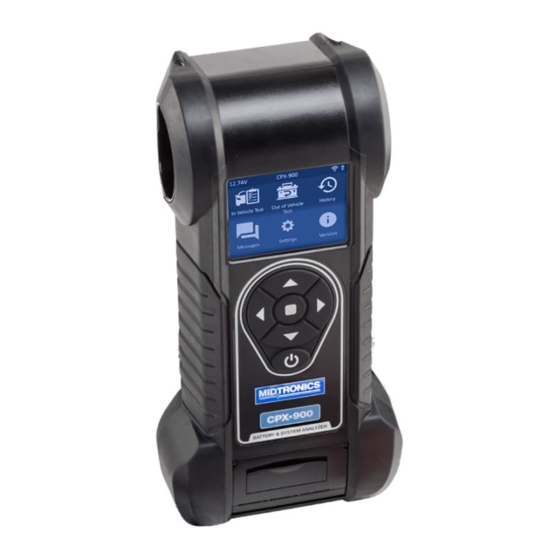

Battery & Electrical
Diagnostic Analyzer
Setup
WiFi Settings
Set up the WiFi connection.
IMPORTANT: The CPX-900 will not connect to an en-
terprise network with a user login landing page.
Automatic The tester searches for any detectable WiFi
Manual
BMIS Settings
The BMIS credentials are already entered. If they are not, please
enter user credentials shown below, then enter your location ID
for verification.
Use     to highlight the numbers on the displayed
keyboard and press  to select.
User Credentials
Password
Client ID
Quick Reference Guide
networks. Select a displayed network is then
displayed on the tester screen.
Manually enter Security, SSID, Password,
Encryption, and WEP Keys.
