Quick Test

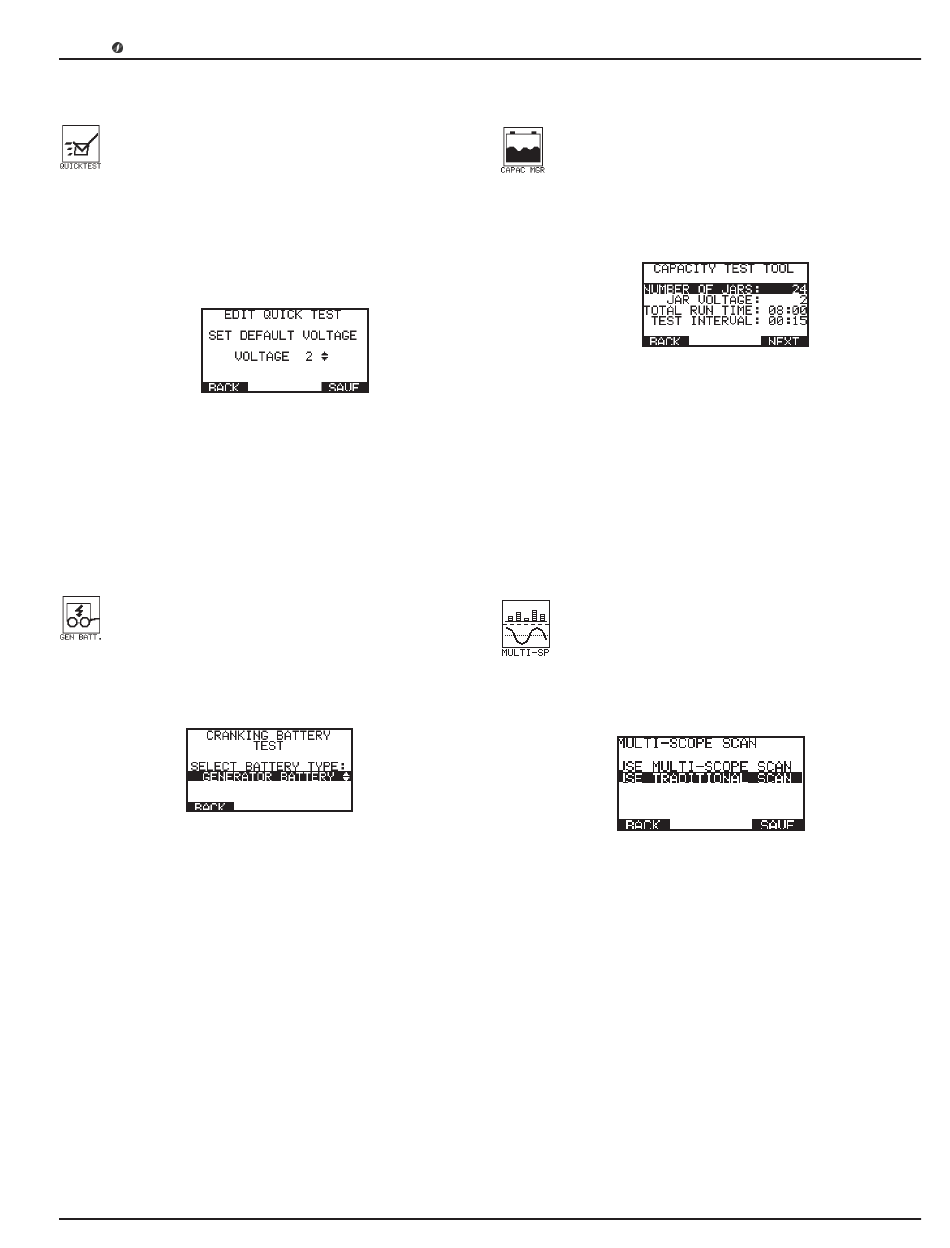

Pressing 'Quick Test' will display the Quick Test screen
which is where the user can set the voltage that will
be used for the Quick Test functionality.
From the Main Menu highlight the UTILITY icon and press
1.
the SELECT ITEM soft key.
Use the ARROW keys to select the TEST MODE and press
2.
the ENTER key. The EDIT QUICK TEST screen appears on
the lower screen.
Use the up or down ARROW keys to select between 2 and
3.
16 volts to the desired Quick Test default setting.
4. Press the SAVE soft key to save your changes or the BACK
soft key to return to the Main Menu without saving your
changes.

Gen Batt

The GEN BAT function is designed to quickly test a
generator or fleet vehicle. Starting batteries are usu-
ally rated in Cold Cranking Amps (CCA).
1. Use the ARROW keys to select GEN BAT and press the EN-
TER key. The CRANKING BATTERY TEST screen appears on
the lower screen.
Use the up or down ARROW keys to select between GEN-
2.
ERATOR BATTERY and FLEET VEHICLE.
3. Press the SAVE soft key to save your changes or the BACK
soft key to return to the Main Menu without saving your
changes.
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527

Capac Mgr

The CAPAC MGR function is designed to manage tra-
ditional capacity test process and assist in caputuring
jar voltages during the testing process.
Use the ARROW keys to select the GEN BAT press the
1.
ENTER key. The capacity test tool screen appears on the
lower screen.
Use the ARROW keys to input the duration of the test.
2.
Use the ARROW keys to input the number of jars.
3.
4. Use the ARROW keys to input the desired interal for volt-
age. The tester will begin testing the capacity test and
sound an alert once the voltages have been successfully
captured.

Multi SP

The MULTI SP selects MULTI-FREQUENCY mode or
Traditional mode (ULTRA).
Use the ARROW keys to highlight MULTI SCOPE option
1.
and press ENTER.
Use ARROW keys to select mode and press F2 soft key to
save.
