CELLTRON MAX

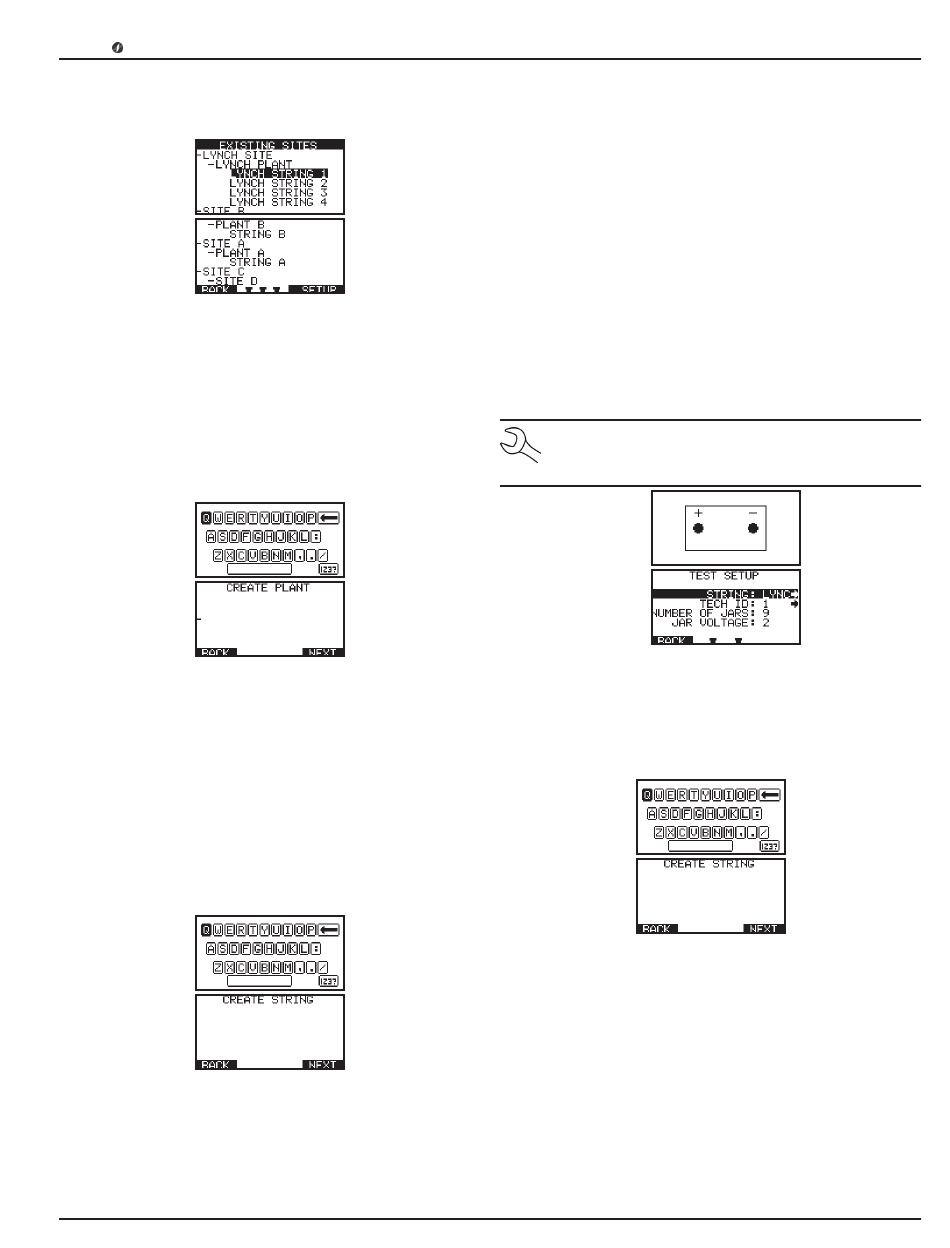

The various plant, site, and string hierarchy appears on
the upper and lower screens.
Use the ARROW keys to highlight the Site or Plant that
2.
you want to edit and press the SETUP key. Depending
on what you've highlighted, the CREATE PLANT or CREATE
STRING appears on the lower screen and an alphanumeric
keypad appears on the upper screen.

Create Plant

Once a new Site has been created, then you use the same
procedure to create a new Plant.
Use the ARROW keys to highlight the character on the
1.
character map that you want to select and press the EN-
TER soft key to select it. The character will appear on the
lower screen. Repeat this process to complete the line.
When you've completed the line, press the NEXT soft key
2.
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.

Create String

Once a new Plant has been created, then you use the same
procedure to create a new String.
Use the ARROW keys to highlight the character on the
1.
character map that you want to select and press the EN-
TER soft key to select it. The character will appear on the
lower screen. Repeat this process to complete the line.
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527
When you've completed the line, press the NEXT soft key
2.
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.
A TEST SETUP screen appears on the lower screen and a
battery diagram appears on the upper screen.
If you've highlighted a string, the TEST SETUP screen
appears on the lower screen.

Test Setup

The TEST SETUP function will let you edit the parameters and
default information used by the tester during the testing
process.
NOTE: Any existing test data stored in the internal
flash memory will be erased if these parameters are
edited.

String

1. Use the ARROW keys to highlight STRING and press the
ENTER key. An alphanumeric keypad appears on the up-
per screen and a CREATE STRING screen is displayed on
the lower screen.
Use the ARROW keys to highlight characters on the char-
2.
acter map that you want to select and press the ENTER
soft key to select it. The character will appear on the low-
er screen. Repeat this process to complete the line.
When you've completed the line, press the NEXT soft key
3.
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.
17
• •
