CELLTRON MAX

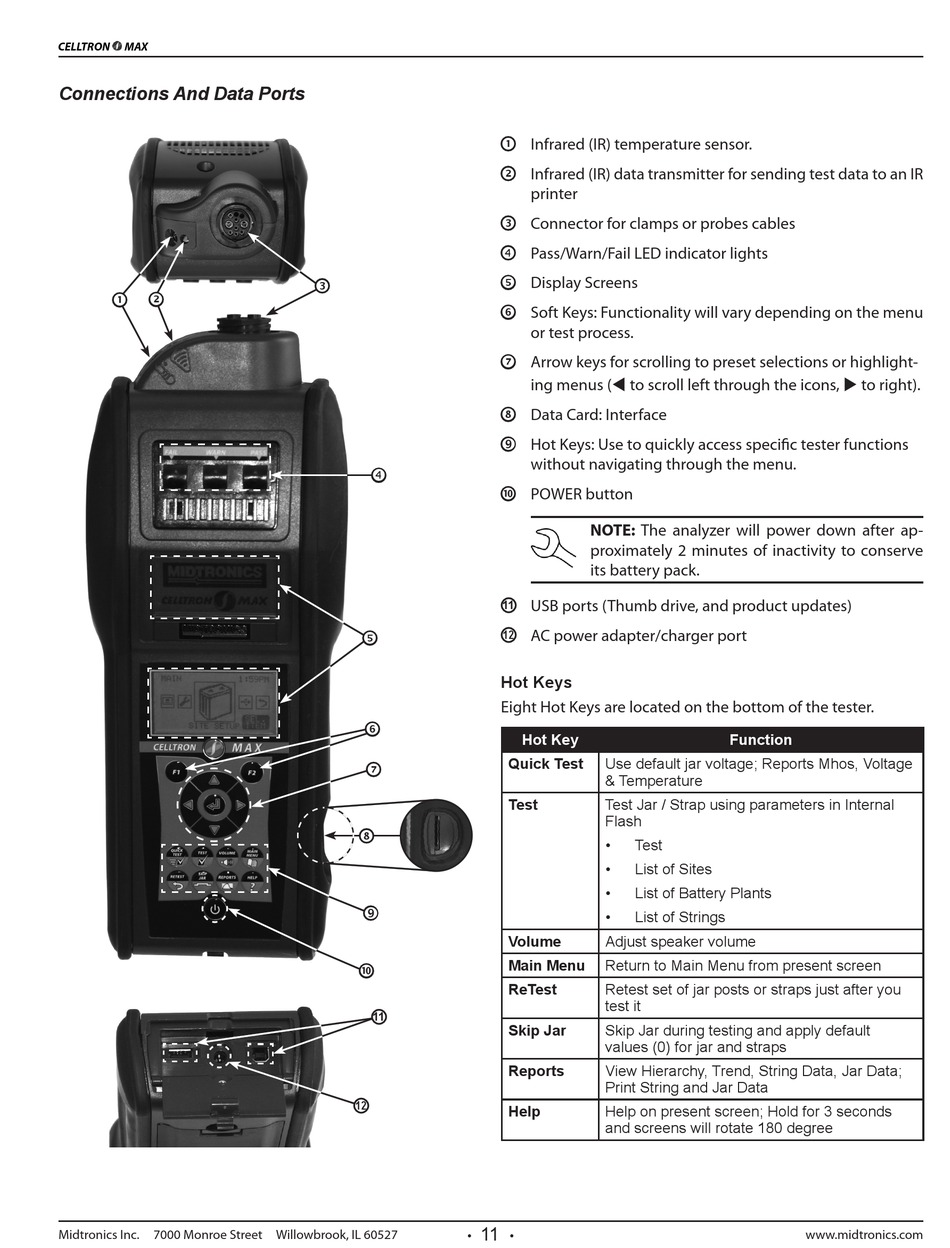

Connections and Data Ports

 
Midtronics Inc. 7000 Monroe Street Willowbrook, IL 60527








11
12
11
•
Infrared (IR) temperature sensor.

 Infrared (IR) data transmitter for sending test data to an IR
printer
Connector for clamps or probes cables

Pass/Warn/Fail LED indicator lights

Display Screens

Soft Keys: Functionality will vary depending on the menu

or test process.
Arrow keys for scrolling to preset selections or highlight-

ing menus (t to scroll left through the icons, u to right).
Data Card: Interface

Hot Keys: Use to quickly access specific tester functions

without navigating through the menu.
POWER button

NOTE: The analyzer will power down after ap-
proximately 2 minutes of inactivity to conserve
its battery pack.
USB ports (Thumb drive, and product updates)
11
AC power adapter/charger port
12

Hot Keys

Eight Hot Keys are located on the bottom of the tester.
Hot Key
Quick Test Use default jar voltage; Reports Mhos, Voltage
& Temperature
Test Test Jar / Strap using parameters in Internal
Flash
• Test
• List of Sites
• List of Battery Plants
• List of Strings
Volume Adjust speaker volume
Main Menu Return to Main Menu from present screen
ReTest Retest set of jar posts or straps just after you
test it
Skip Jar Skip Jar during testing and apply default
values (0) for jar and straps
Reports View Hierarchy, Trend, String Data, Jar Data;
Print String and Jar Data
Help Help on present screen; Hold for 3 seconds
and screens will rotate 180 degree
•
Function
