After pressing 'Site Setup' on the Main Menu, the user
is taken to the Site Setup screen which contains two
options: 'New' and 'Existing' . Data will be saved to In-
ternal Flash.

New Site

Pressing 'New' will take the users through the screens
for setting up a new hierarchy. 'Create Site' will be the
first screen and default node names are listed below.
The function on the bottom-left and bottom-right
side of the screen is accessible from the F1 & F2 soft
function keys.

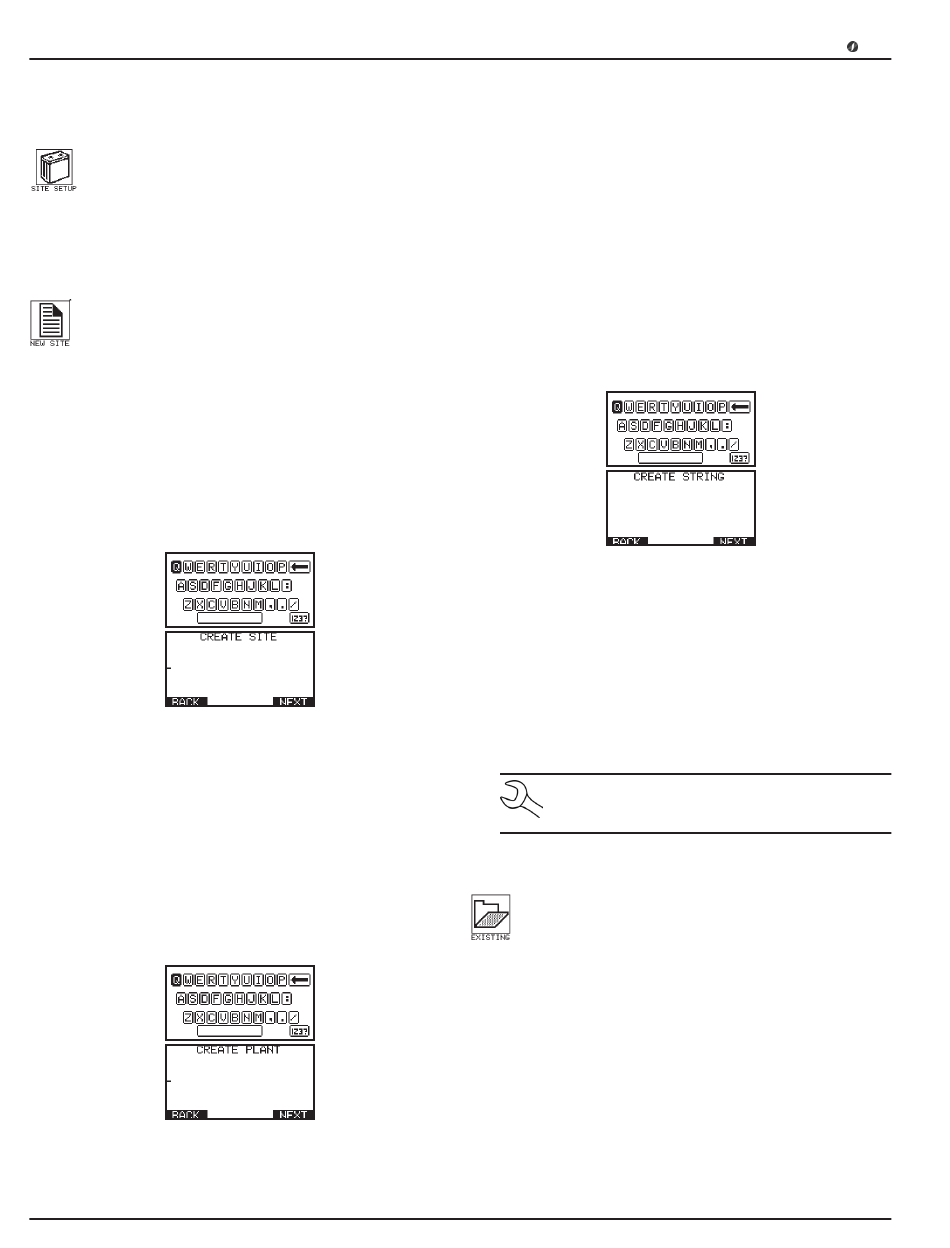

Create Site

1. From the Main Menu, use the ARROW keys to highlight
the NEW SITE icon and press the SELECT ITEM soft key. An
alphanumeric keypad appears on the upper screen and a
CREATE SITE screen is displayed on the lower screen.
Use the ARROW keys to highlight the character on the
2.
character map that you want and press the ENTER key to
select it. The character appears on the lower screen. Re-
peat this process to complete the line.
When you've completed the line, press the NEXT soft key
3.
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.

Create Plant

Once a new Site has been created, then you use the same
procedure to create a new Plant.
www.midtronics.com

Chapter 3: Site Setup

Use the ARROW keys to highlight the character on the
1.
character map that you want to select and press the EN-
TER soft key to select it. The character will appear on the
lower screen. Repeat this process to complete the line.
When you've completed the line, press the NEXT soft key
2.
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.

Create String

Once a new Plant has been created, then you use the same
procedure to create a new String.
Use the ARROW keys to highlight the character on the
1.
character map that you want to select and press the EN-
TER soft key to select it. The character will appear on the
lower screen. Repeat this process to complete the line.
2. When you've completed the line, press the NEXT soft key
to save your changes and move on to the next screen or
press the BACK soft key to return to go back one screen.
A TEST SETUP screen appears on the lower screen and
with battery diagram that appears on the upper screen.

Existing Site

The EXISTING function will allow to modify the exist-
1. From the Main Menu, use the ARROW keys to highlight
the EXISTING SITE icon and press the SELECT ITEM soft key.
16
• •
NOTE: Go to the TEST SETUP section in the chap-
ter for more information.
ing hierarchy of jars strings stored in the tester's inter-
nal flash memory. You can also add Plants as outlined
in the NEW SITE section of this chapter.
