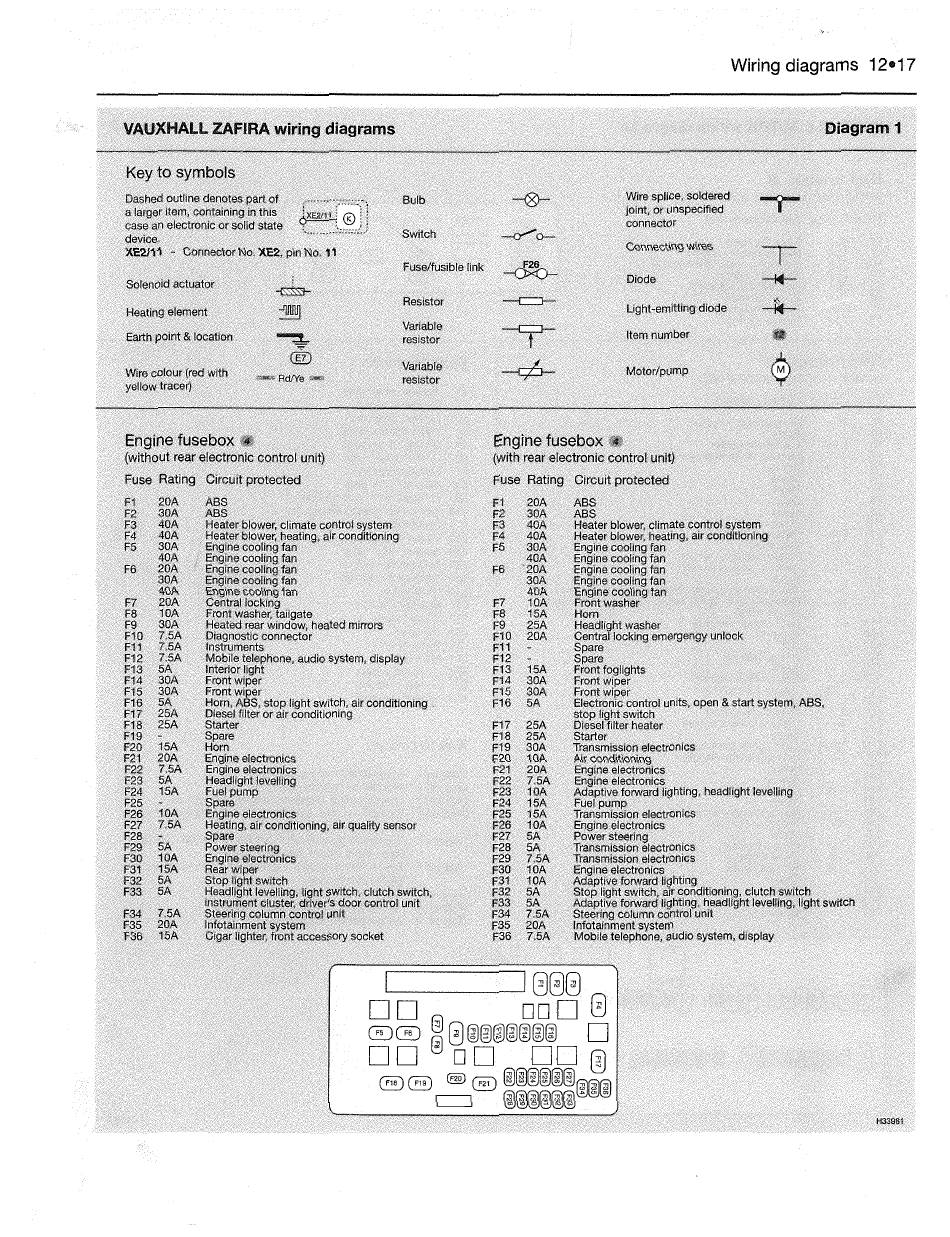

VAUXHALL ZAFIRA wiring diagrams
Key to symbols
Dashed outline denotes part. of
a larger item, containing in this
case an electronic or solid state
devlca
XE2/11 • Connector No, XE2, pin No, 11
Bulb
Switch
Wire splice, soldered
Joint, or unspecified
connector
Connecting wrres
Wiring diagrams 12•17
Diagram 1
Solenoid actuator
Fuse/fusible link
~
Diode
Resistor
-c::::i,.-..
Light-emitting diode
Heating element
Earth point
&
location
Wire colour (red with
yellow tracer)
Engine fusebox
(without rear electronic control unit)
Fuse Rating Circuit protected
F1 20A
ABS
F2 30A
ABS
F3 40A Heater blower, cllmate control system
F4
40A Heater blower, heating, air conditioning
F5 30A Engine cooling fan
40A Engine coollng fan
F6 20A
Engine cooling fan
30A
Englne cooling fan
40A
Engine cooling fan
F7
20A Central locking
F8 10A
Front washer, tailgate
F9 30A Heated rear window, heated mirrors
F10
7,5A
Diagnostic connector
F11 7.5A Instruments
Varlable
resistor
Variable
resistor
F12 7.5A Mobile telephone, audio system, display
F13 Interior lfght 5A
F14 30A Front wiper
F15
30A
Front wiper
F16
5A Horn, ABS, stop light switch, air conditioning
F17 25A
Diesel filter or air conditioning
F18 25A Starter
F19 Spare
F20 15A Horn
F21 20A Engine electronics
F22 7,5A Engine electronics
F23 5A
Headlight levelling
F24
15A Fuel pump
F25
.
Spare
F26
10A Engine electronics
F27
7.5A Heating, air condltioning, air quality sensor
F28 Spare
F29 5A Power steering
F30 10A Engine electronics
F31 15A Rearwlper
F32
5A
Stop light switch
F33
5A Headllght levelllng,
lltt
switch, cit.itch switch,
instrument cluster; d er's door control unit
f34
7,5A
Steering column control unit
F35
20A Infotainment system ·
F36
15A Cigar !lghte(, front accessory socket
Item number
Motor/pump
Engine fusebox
(with rear electronic control unit}
Fuse Rating Circuit protected
F1 20A ABS
F2 30A ABS
F3 40A Heater blower; climate control st,stem
F4 40A Heater blower, heating, air cond1tlonlng
F5
30A Engine cooling fan
40A
Engine cooling fan
F6 20A
Engine cooling fan
30A Engfne cooling fan
40A Engine cooling fan
F7 10A Front washer
F8 15A Horn
F9 25A Headlight washer
F10 20A Central locking emergengy unlock
f11 Spare
F12 Spare
F13 15A
Front fogllghts
F14 30A Front wiper
F15 30A Front wiper
F16 5A Electronic control units, open & start system, ABS,
stop light switch
F17 25A Diesel filter heater
f18 25A Starter
f19 30A Transmission electronics
F20 10A Air conditioning
F21 20A Engine electronics
F22 7.5A Engine electronics
F23
10A
Adaptive forward lighting, headlight levelling
F24 15A Fuel pump
F25 15A Transmission electronics
F26 10A Engine electronics
F27 5A Power steering
F28 5A Transmission electronics
F29
7.5A Transmission electronics
F30 10A Engine electronics
f31 10A Adaptive forward U~hting
F32 5A
Stop light switch, a r conditioning, clutch switch
F33 5A Adaptive forward lfghtlng, headlfght level.ting, lrght swrtch
F34 7,5A Steering column control unit
F35 20A Infotainment system
F36 7,5A Mobile telephone, audio system, display
H33981
