12 PROGRAMME AND DATABASE PROTECTION SMART CARD
RAVTD3000, RAVTD3000HP, RAVTD3000NRC and RAVTD3000ATS all feature a PC with
SMART CARD reader.

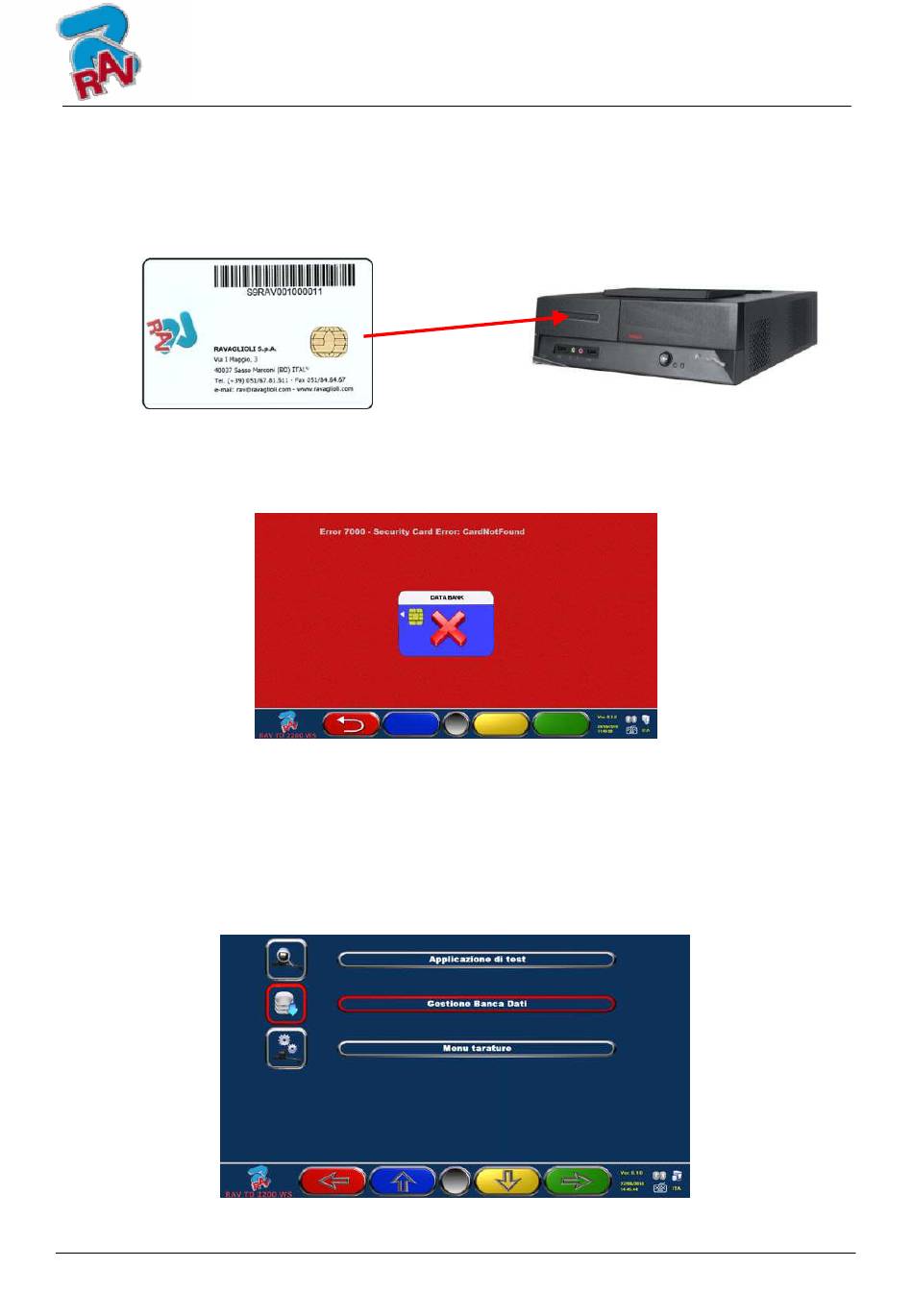

This SMART CARD, inserted inside reader, allows programme operation, and enables access
to vehicle DATABASE.
Every machine has its own unique SMARTCARD that cannot be replaced with the
SMARTCARD of another machine for whatever reason.
Should this SMARTCARD be removed or replaced, programme will display an error message,
such as Figure 56, and will not give the authorisation to continue.
Database can be updated by downloading files from Internet.
Contact your retailer for further details on the download from the manufacturer's web site.

12.1 DATABASE Management

To update database, proceed as follows:
Select "Database Management" option from programme configuration menu (see chap. 9)
as specified in Figure 57, and press F4 to continue.
Page 48/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 55
Figure 56
Figure 57
