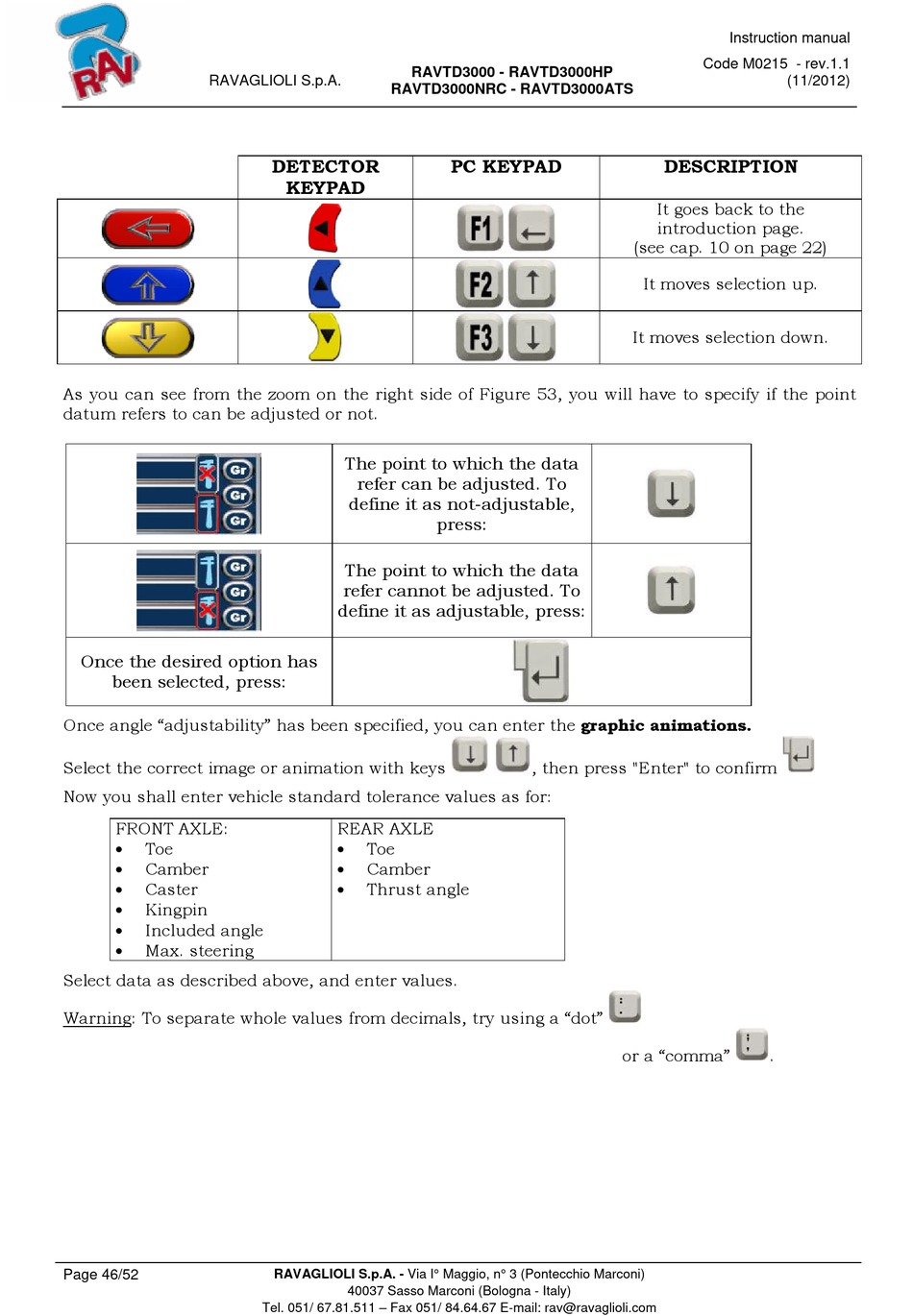

Ravaglioli RAVTD3000HP Instruction Manual page 48

RAVAGLIOLI S.p.A.
As you can see from the zoom on the right side of Figure 53, you will have to specify if the point
datum refers to can be adjusted or not.
Once the desired option has
been selected, press:
Once angle "adjustability" has been specified, you can enter the graphic animations.
Select the correct image or animation with keys
Now you shall enter vehicle standard tolerance values as for:
FRONT AXLE:

Toe

Camber

Caster

Kingpin

Included angle

Max. steering
Select data as described above, and enter values.
Warning: To separate whole values from decimals, try using a "dot"
Page 46/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
DETECTOR
KEYPAD
The point to which the data
refer can be adjusted. To
define it as not-adjustable,
The point to which the data
refer cannot be adjusted. To
define it as adjustable, press:
REAR AXLE

Toe

Camber

Thrust angle
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
PC KEYPAD
press:
, then press "Enter" to confirm
Instruction manual
Code M0215 - rev.1.1
(11/2012)
DESCRIPTION
It goes back to the
introduction page.
(see cap. 10 on page 22)
It moves selection up.
It moves selection down.
or a "comma" .
