Should you be willing to repeat the operation once the programme has already entered a
following phase, you can go back to this page by pressing F1, and repeat the above
procedure. Once the out-of-centre procedure has been completed, programme will
automatically go to the next phase.

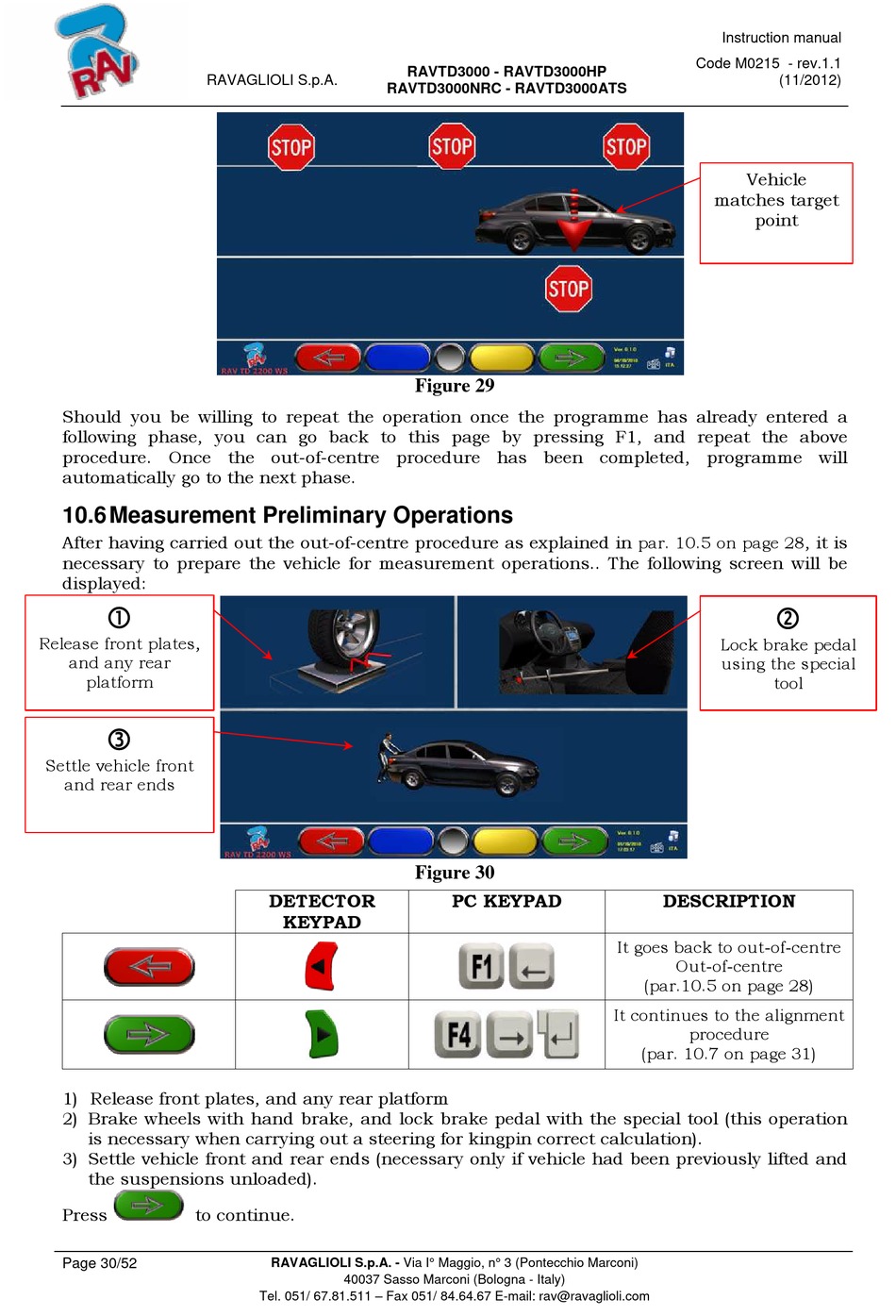

10.6 Measurement Preliminary Operations

After having carried out the out-of-centre procedure as explained in par. 10.5 on page 28 , it is
necessary to prepare the vehicle for measurement operations.. The following screen will be
displayed:

Release front plates,
and any rear
platform

Settle vehicle front
and rear ends
1) Release front plates, and any rear platform
2) Brake wheels with hand brake, and lock brake pedal with the special tool (this operation
is necessary when carrying out a steering for kingpin correct calculation).
3) Settle vehicle front and rear ends (necessary only if vehicle had been previously lifted and
the suspensions unloaded).
Press to continue.
Page 30/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 29
Figure 30
DETECTOR
KEYPAD
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
PC KEYPAD
It goes back to out-of-centre
It continues to the alignment
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Vehicle
matches target
point

Lock brake pedal
using the special
tool
DESCRIPTION
Out-of-centre
(par.10.5 on page 28)
procedure
(par. 10.7 on page 31)
