10.5 Thrust Out-of-centre with Automatic Acquisition

The out-of-centre procedure proves useful to compensate for rims and clamps unbalance.
With RAVTD3000 model this procedure is compulsory (see par. 3.5)
Models RAVTD3000HP, RAVTD3000NRC and RAVTD3000ATS feature resting clamps, this
procedure is not compulsory. Simply press F4.
This procedure can be enabled also after having diagnosed the vehicle, by selecting the
special option from menu (see chap. 10.14 - Preliminary Operations).
To carry out the out-of-centre procedure, you should have performed the preliminary
operations, as explained in par. 10.2.2 on page 23.

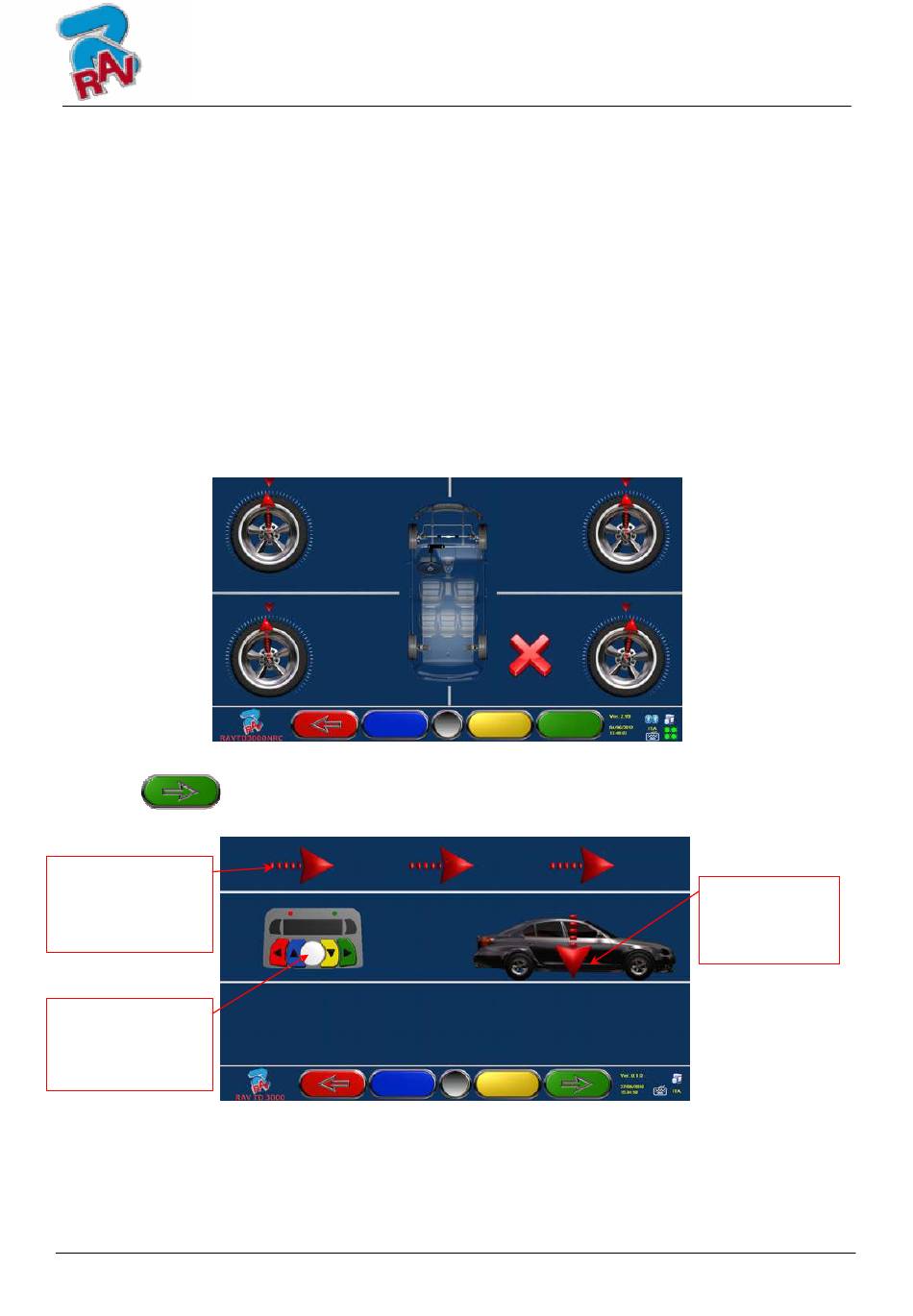

The clamps must be positioned with the targets at approximately "12 o'clock", so that during
run-out they are always clearly visible to the cameras. If one or more positions are not
acceptable, the error message screen indicated below appears, which shows an example of an
improperly positioned rear right clamp. Simply position the clamp at "12 o'clock": the
program will proceed automatically.
If instead you press F1, the error is not considered. You may not be able to complete the
procedure when performing the run-out.
Press F4
The following screen will be displayed:
First position on
turn-tables,
approximately 15°
forward
Press F5 or the
central key on
one of the two
measuring
To carry out the thrust out-of-centre operation, it is recommended to carefully follow the
displayed instructions.
The starting point is acquired a little further ahead, so that it always remains inside the
tables also on the second point, thus avoiding any small gaps.
Page 28/52
RAVTD3000NRC - RAVTD3000ATS
in the technical data display phase (see par. 10.4 on page 27).
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
RAVTD3000 - RAVTD3000HP
Figure 24
Figure 25
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Vehicle
starting point
