RAVAGLIOLI S.p.A.
10.10

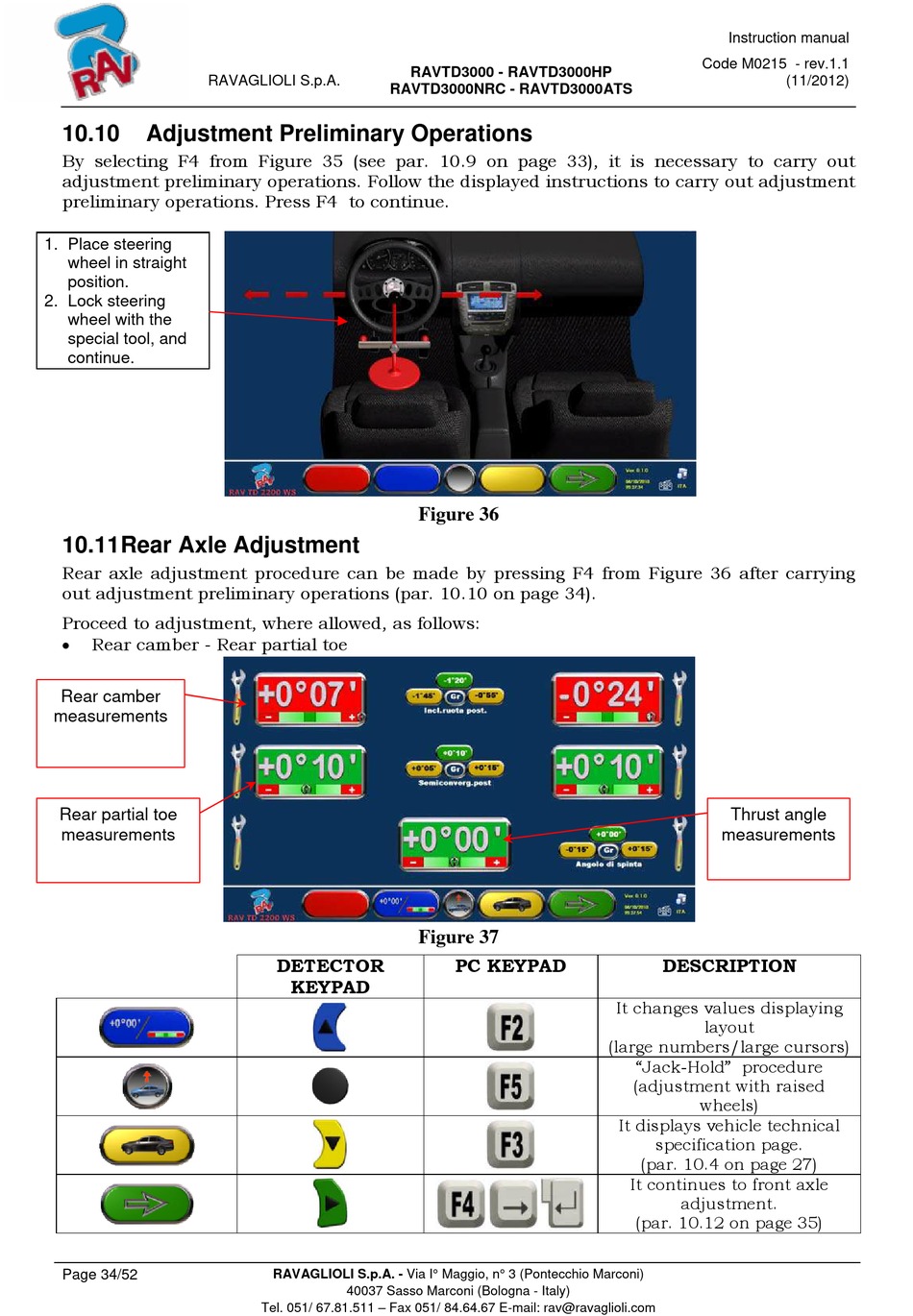

Adjustment Preliminary Operations

By selecting F4 from Figure 35 (see par. 10.9 on page 33), it is necessary to carry out
adjustment preliminary operations. Follow the displayed instructions to carry out adjustment
preliminary operations. Press F4 to continue.
1. Place steering
wheel in straight
position.
2. Lock steering
wheel with the
special tool, and
continue.

10.11 Rear Axle Adjustment

Rear axle adjustment procedure can be made by pressing F4 from Figure 36 after carrying
out adjustment preliminary operations (par. 10.10 on page 34).
Proceed to adjustment, where allowed, as follows:

Rear camber - Rear partial toe
Rear camber
measurements
Rear partial toe
measurements
Page 34/52
RAVTD3000 - RAVTD3000HP

RAVTD3000NRC - RAVTD3000ATS

Figure 36
Figure 37
DETECTOR
KEYPAD
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
PC KEYPAD
It changes values displaying
(large numbers/large cursors)
It displays vehicle technical
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Thrust angle
measurements
DESCRIPTION
layout
"Jack-Hold" procedure
(adjustment with raised
wheels)
specification page.
(par. 10.4 on page 27)
It continues to front axle
adjustment.
(par. 10.12 on page 35)
