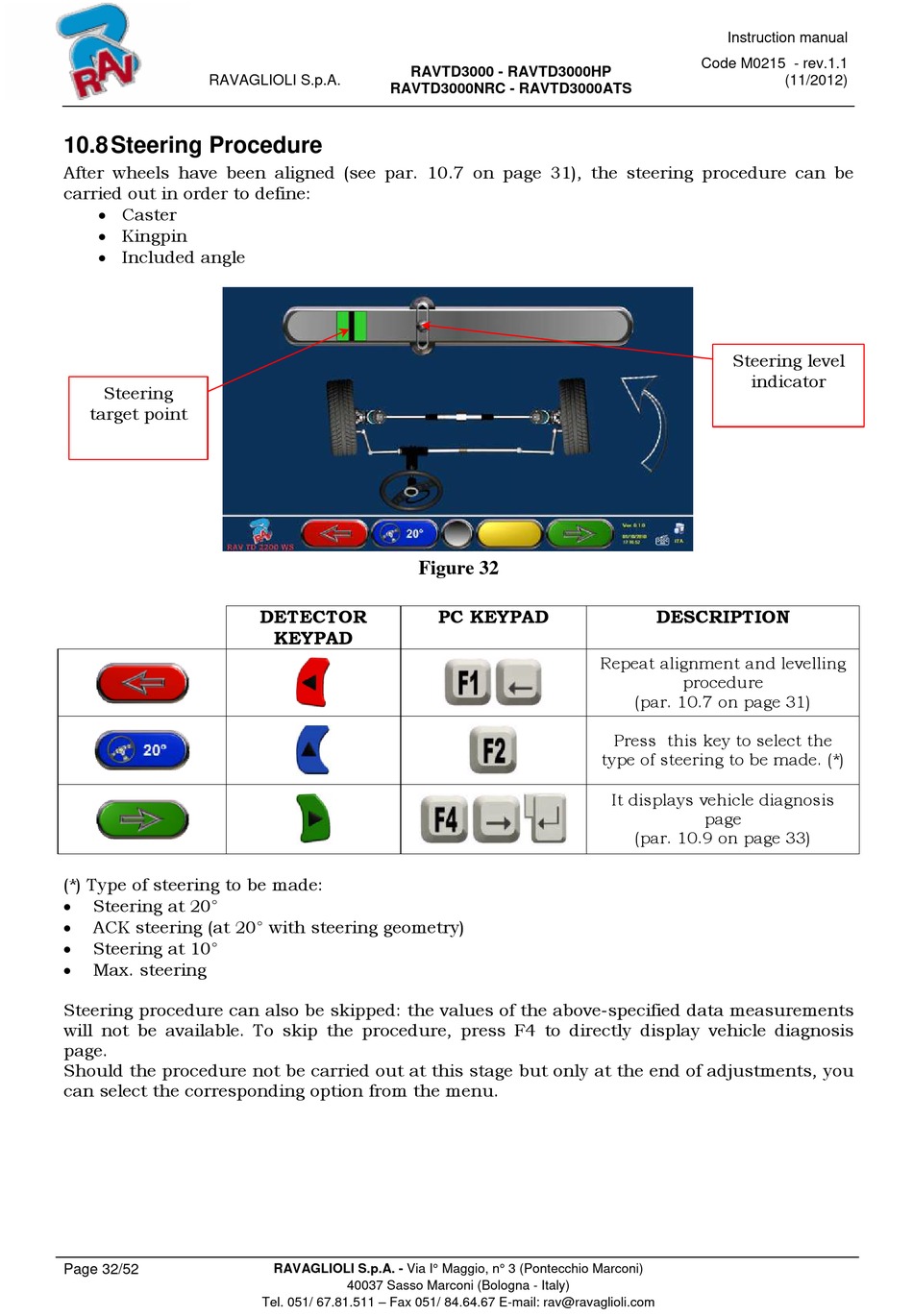

10.8 Steering Procedure

After wheels have been aligned (see par. 10.7 on page 31), the steering procedure can be
carried out in order to define:
 Caster
 Kingpin
 Included angle
Steering
target point
(*) Type of steering to be made:

Steering at 20°

ACK steering (at 20° with steering geometry)

Steering at 10°

Max. steering
Steering procedure can also be skipped: the values of the above-specified data measurements
will not be available. To skip the procedure, press F4 to directly display vehicle diagnosis
page.
Should the procedure not be carried out at this stage but only at the end of adjustments, you
can select the corresponding option from the menu.
Page 32/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 32
DETECTOR
KEYPAD
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
PC KEYPAD
Repeat alignment and levelling
type of steering to be made. (*)
It displays vehicle diagnosis
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Steering level
indicator
DESCRIPTION
procedure
(par. 10.7 on page 31)
Press this key to select the
page
(par. 10.9 on page 33)
