7 MEASURING HEAD AUTOMATIC SWITCHING OFF

The system makes the measuring heads switch off when the PC is switched off from the
introduction page. Measuring heads will anyway automatically switch off after approx. 5
minutes if no data are received (ex. cabin is off).
Anyway, they can always be manually switched off (see par. 3.4.2 on page 9) when they are
not used.

8 FLAT BATTERY INDICATION

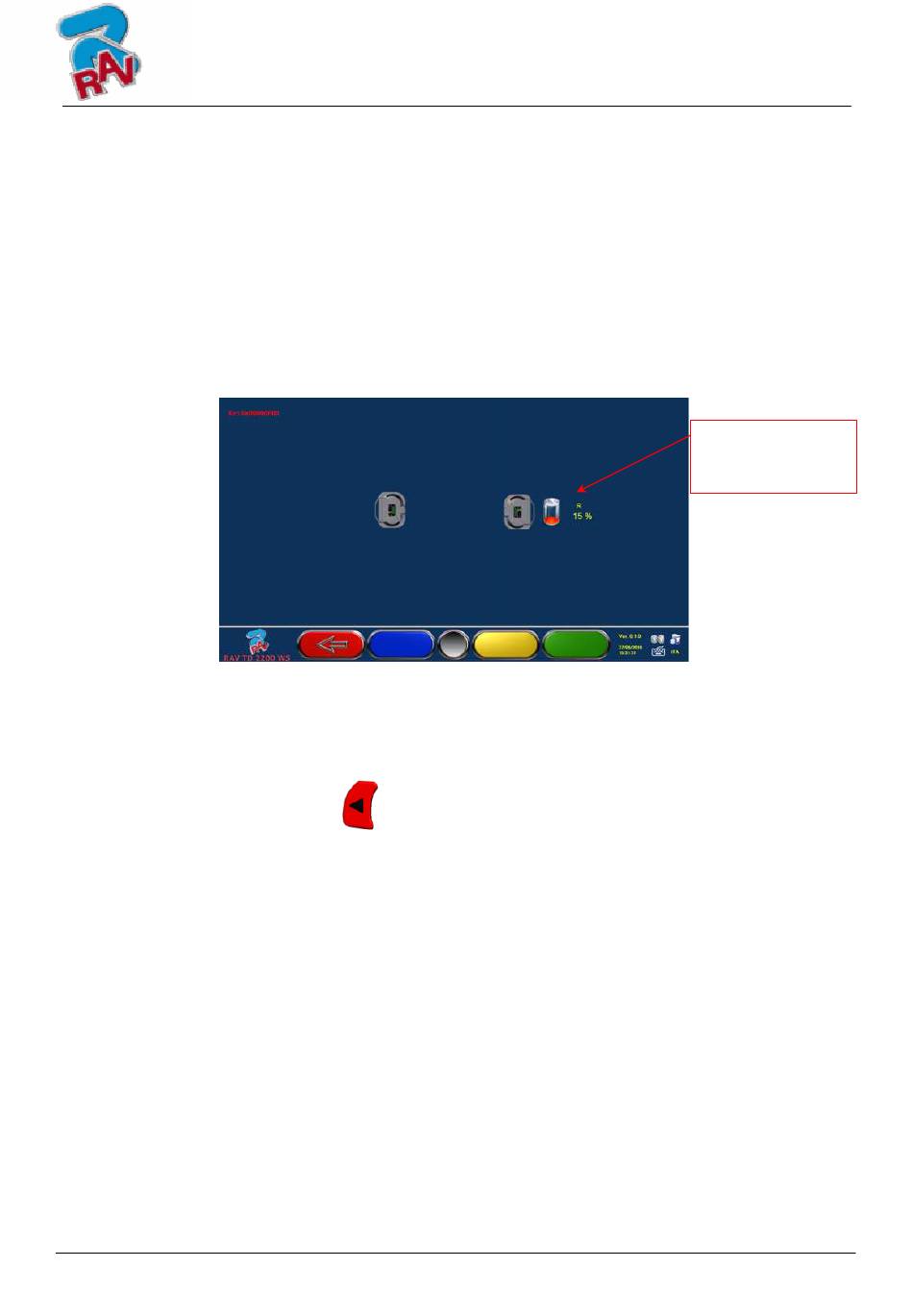

System displays a flat battery warning signal (Figure 12).
This signal is also visible on the sensor itself through the flashing of start RED LED (see par.
3.4.2 on page 9).
RIGHT
MEASURING
HEAD
Figure 12
When the residual charge is LOWER than or EQUAL to 30%, system displays the page of flat
battery indication (Figure 12). The head will automatically switch off after a few minutes. Try
not to reach this condition, and charge batteries as soon as possible.
To quit the signal page, press F1 .
