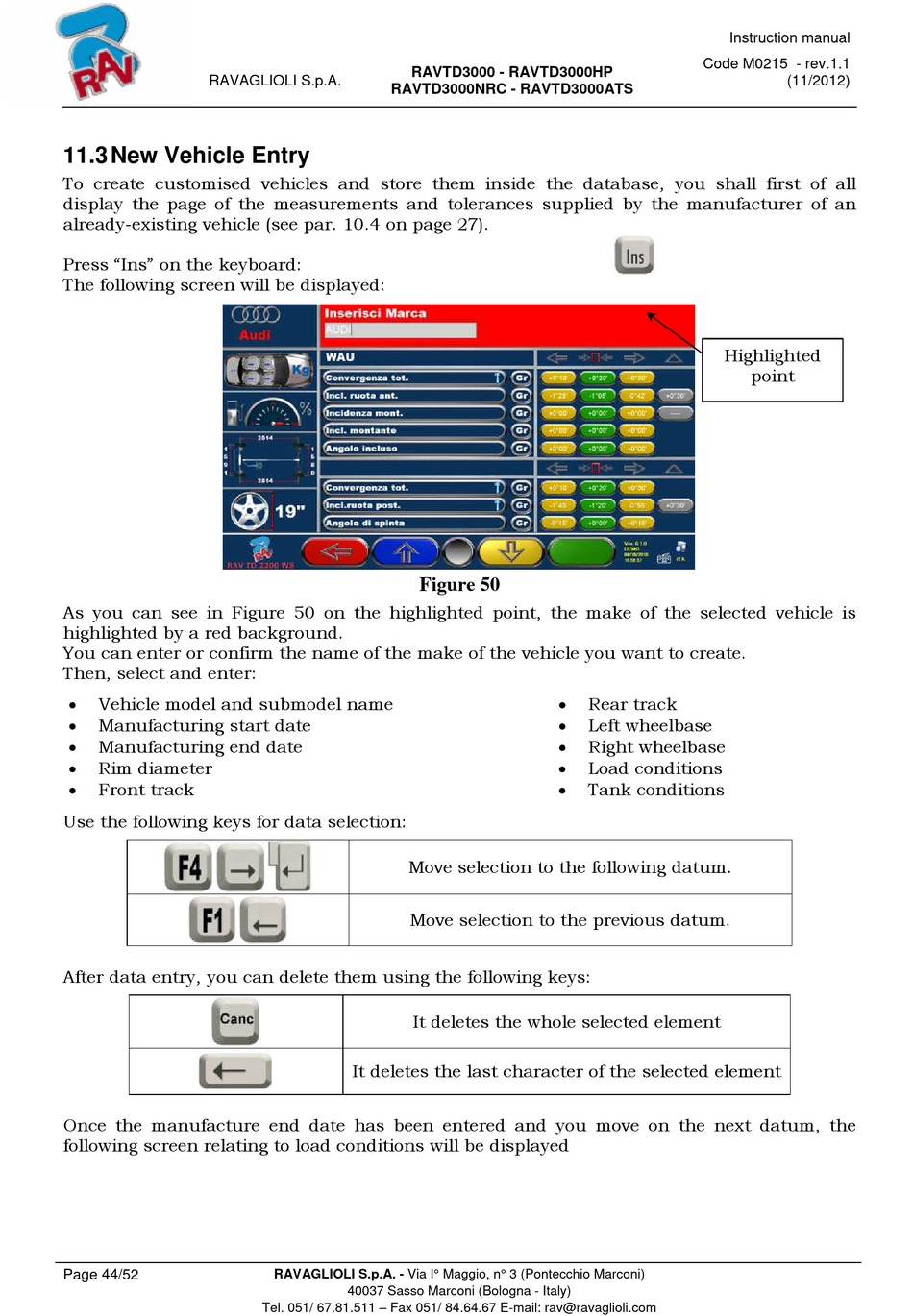

11.3 New Vehicle Entry

To create customised vehicles and store them inside the database, you shall first of all
display the page of the measurements and tolerances supplied by the manufacturer of an
already-existing vehicle (see par. 10.4 on page 27).
Press "Ins" on the keyboard:
The following screen will be displayed:
As you can see in Figure 50 on the highlighted point, the make of the selected vehicle is
highlighted by a red background.
You can enter or confirm the name of the make of the vehicle you want to create.
Then, select and enter:

Vehicle model and submodel name

Manufacturing start date

Manufacturing end date

Rim diameter

Front track
Use the following keys for data selection:
After data entry, you can delete them using the following keys:
Once the manufacture end date has been entered and you move on the next datum, the
following screen relating to load conditions will be displayed
Page 44/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 50
Move selection to the following datum.
Move selection to the previous datum.
It deletes the whole selected element
It deletes the last character of the selected element
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
Instruction manual
Code M0215 - rev.1.1
Highlighted

Rear track

Left wheelbase

Right wheelbase

Load conditions

Tank conditions
(11/2012)
point
