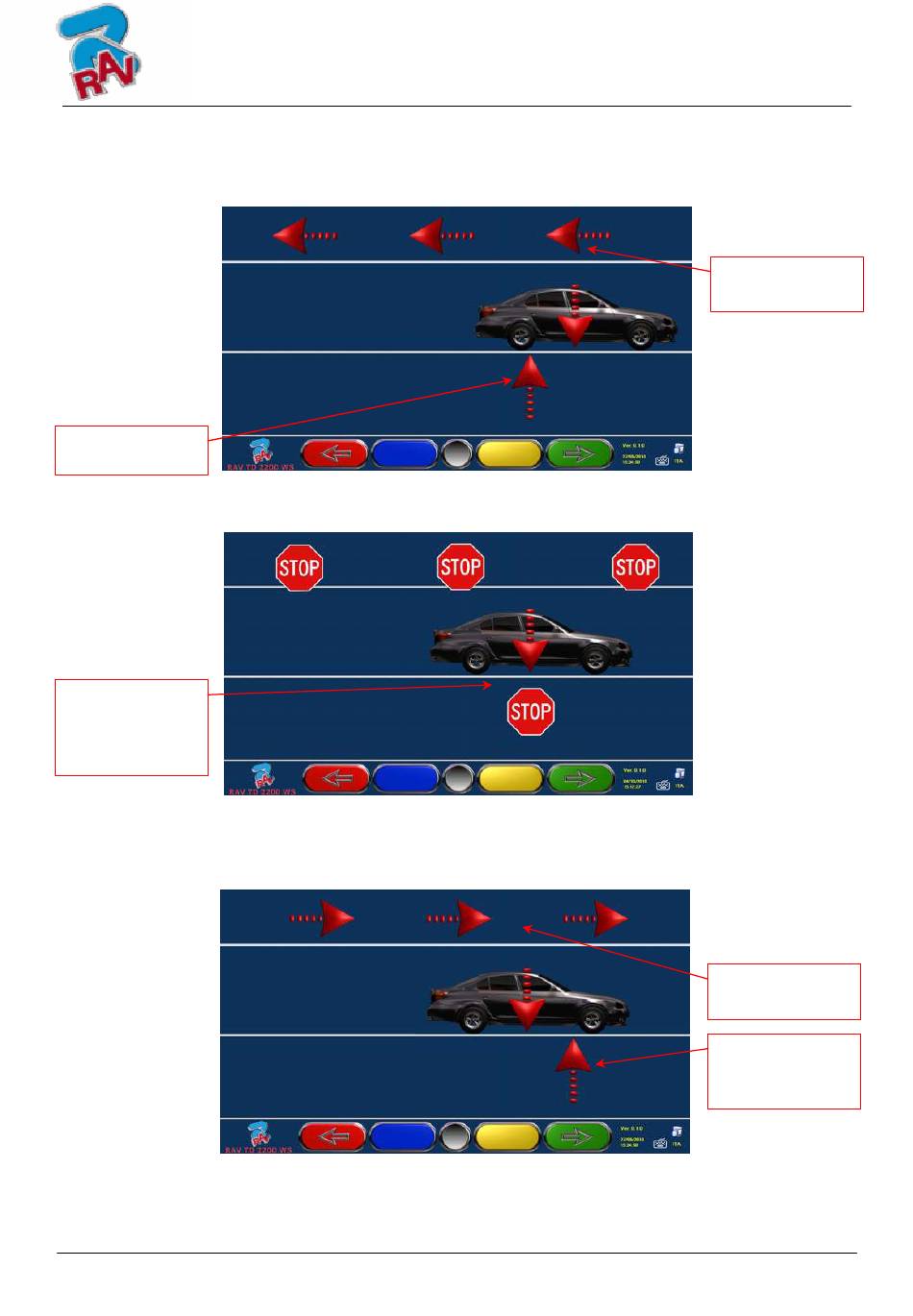

When you are in first position (approximately 15° forward on turn-tables), press F5 or the central
key on one of the two measuring heads.
"STOP" is displayed for about three seconds, i.e. the time needed by the programme to take the
measurements from the 1st point, after that, the programme shows the following page:
target point
Start moving the vehicle backward, very slowly, until the vehicle arrow matches the target
point.
Vehicle
matches target
point
As soon as the vehicle matches the target point, "STOP" is displayed for about three seconds,
i.e. the time needed by the programme to take the measurements, after that, the programme
shows the following page:
Move vehicle forward again, until vehicle arrow matches target point (final point). "STOP" will
be displayed for approx. three seconds, and measurement readings acquired. The thrust out-
of-centre procedure has been completed.
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 26
Figure 27
Figure 28
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Vehicle thrust
direction (back)
Vehicle thrust
direction
Vehicle target
point
Page 29/52
