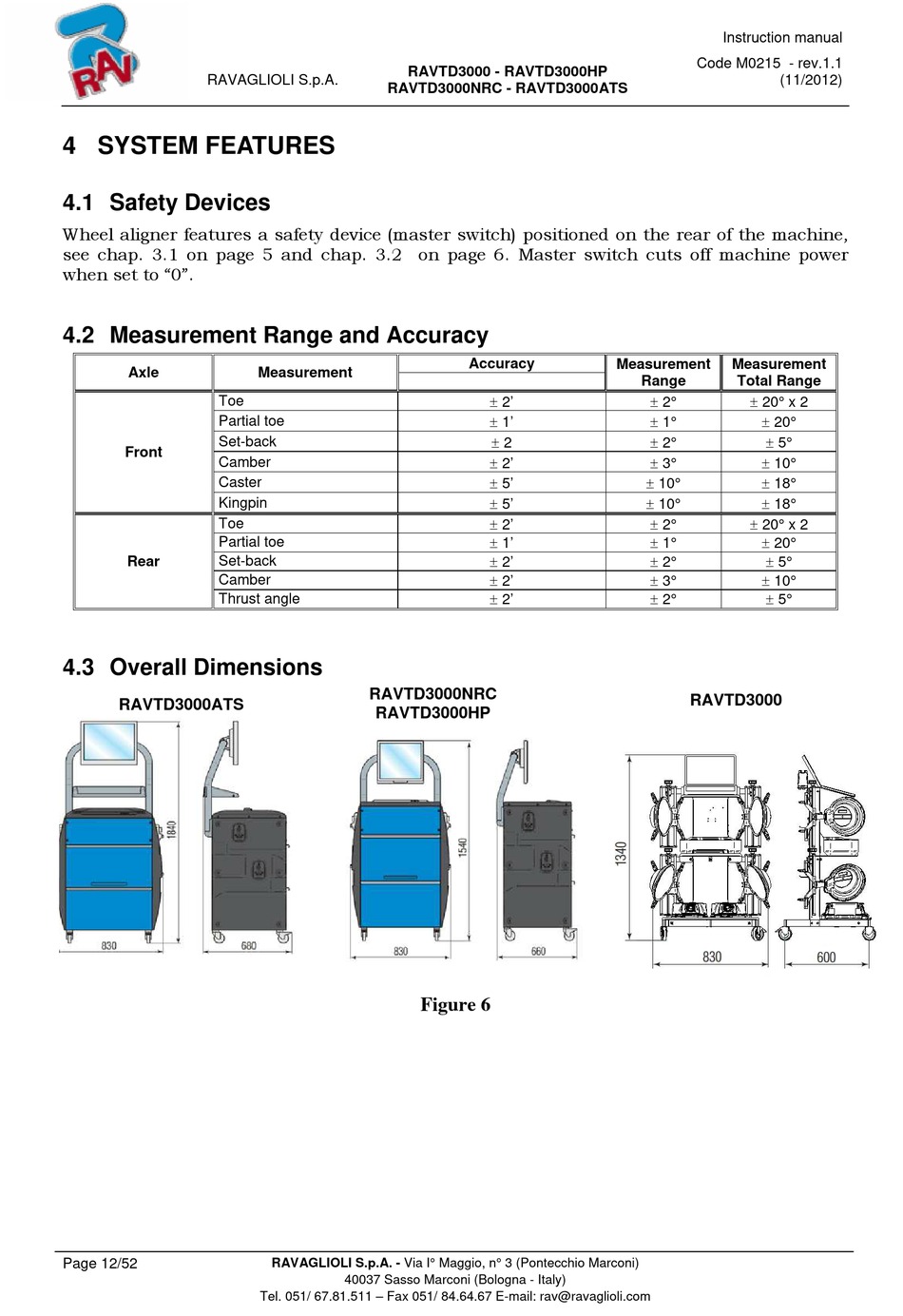

4 SYSTEM FEATURES

4.1 Safety Devices

Wheel aligner features a safety device (master switch) positioned on the rear of the machine,
see chap. 3.1 on page 5 and chap. 3.2 on page 6. Master switch cuts off machine power
when set to "0".

4.2 Measurement Range and Accuracy

Axle
Toe
Partial toe
Set-back
Front
Camber
Caster
Kingpin
Toe
Partial toe
Rear Set-back
Camber
Thrust angle

4.3 Overall Dimensions

RAVTD3000ATS
Page 12/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Measurement
RAVTD3000NRC
RAVTD3000HP
Figure 6
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
Accuracy Measurement
 2'
 1'
 2
 2'
 5'
 5'
 2'
 1'
 2'
 2'
 2'
Instruction manual
Code M0215 - rev.1.1
(11/2012)
Measurement
Range Total Range
 2°  20° x 2
 1°  20°
 2°  5°
 3°  10°
 10°  18°
 10°  18°
 2°  20° x 2
 1°  20°
 2°  5°
 3°  10°
 2°  5°
