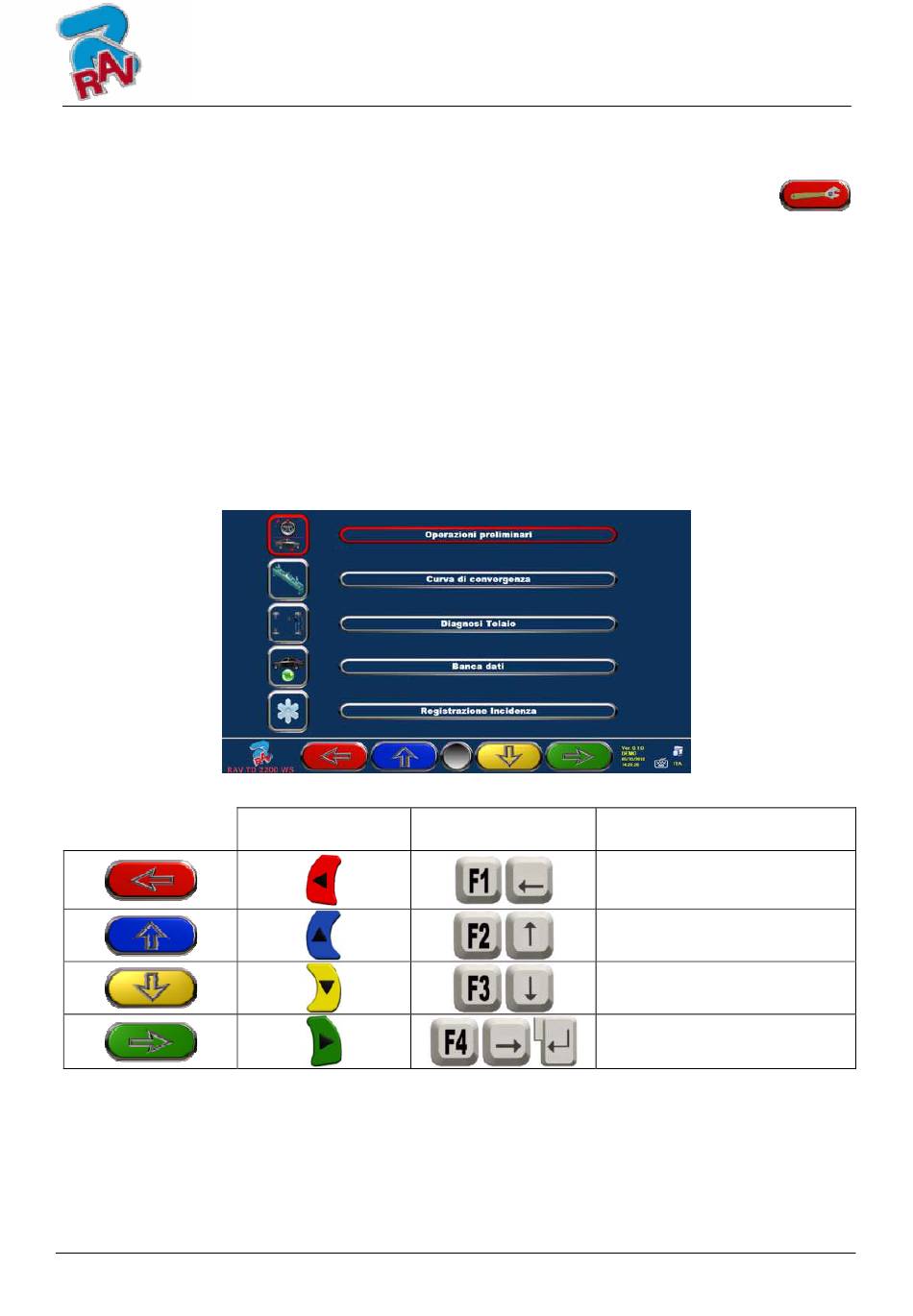

10.14 Additional Functions Menu

To carry out some additional operations or to repeat some programme phases, in case they
have not given satisfactory outcomes or have not been carried out at all, select F1
from the summary page (see par. 10.13 on page 37).
You will access an additional function menu allowing carrying out the following procedures:
PRELIMINARY OPERATIONS: see par. 10.2.1 on page 23
TOE CURVE: Toe curve can be adjusted by following the displayed figures, as follows:
- Settle vehicle, press F4
- Position the special tool under front axle, press F4
- Adjust front partial toe, as recommended by the manufacturer, press F4
- Remove tool from axle, and press F4. Programme will go back to the adjustment phase.
CHASSIS DIAGNOSIS: A graphic-geometrical representation of the axles of the vehicles you
are working on can be displayed.
DATABASE: it enables to display the vehicle selection page (10.3 on page 25) and to select a
different vehicle if necessary
CASTER ADJUSTMENT: see par. 10.12 on page 35.
Page 38/52
RAVTD3000 - RAVTD3000HP
RAVTD3000NRC - RAVTD3000ATS
Figure 42
DETECTOR
KEYPAD
RAVAGLIOLI S.p.A. - Via I° Maggio, n° 3 (Pontecchio Marconi)
40037 Sasso Marconi (Bologna - Italy)
Tel. 051/ 67.81.511 – Fax 051/ 84.64.67 E-mail: rav@ravaglioli.com
PC KEYPAD
Instruction manual
Code M0215 - rev.1.1
(11/2012)
DESCRIPTION
It goes back to front
adjustment page
(par. 10.12 on page 35)
It moves selection up.
It moves selection down.
It confirms selection.
