Introduction; Key Features; Order Code; Figure 1 Adm-Pcie-9V3 Product Photo - Alpha Data ADM-PCIE-9V3 User Manual

ADM-PCIE-9V3 User Manual

1 Introduction

The ADM-PCIE-9V3 is a high-performance reconfigurable computing card intended for Data Center applications,
featuring a Xilinx Virtex UltraScale Plus FPGA.

1.1 Key Features

Key Features
• PCIe Gen1/2/3 x1/2/4/8/16 capable
• Half-length, low-profile x16 PCIe form factor
• Two banks of DDR4 SDRAM 72 bit wide memory (ECC), 16GB (8GB per bank) default rated at 2400MT/s,
32GB option rated at 1866MT/s.
• Two QSFP28/zQSFP+ sites capable of data rates up to 28 Gbps per channel (112 Gbps per cage)
• One 8 lane Ultraport SlimSAS connector that is compliant with OpenCAPI
• Optional timing input
• Front panel and rear edge JTAG access via USB port
• FPGA configurable over USB/JTAG and SPI configuration flash
• XCVU3P-2FFVC1517I FPGA
• Voltage, current, and temperature monitoring

1.2 Order Code

ADM-PCIE-9V3
See http://www.alpha-data.com/pdfs/adm-pcie-9v3.pdf for complete ordering options.
Introduction
ad-ug-1322_v2_7.pdf

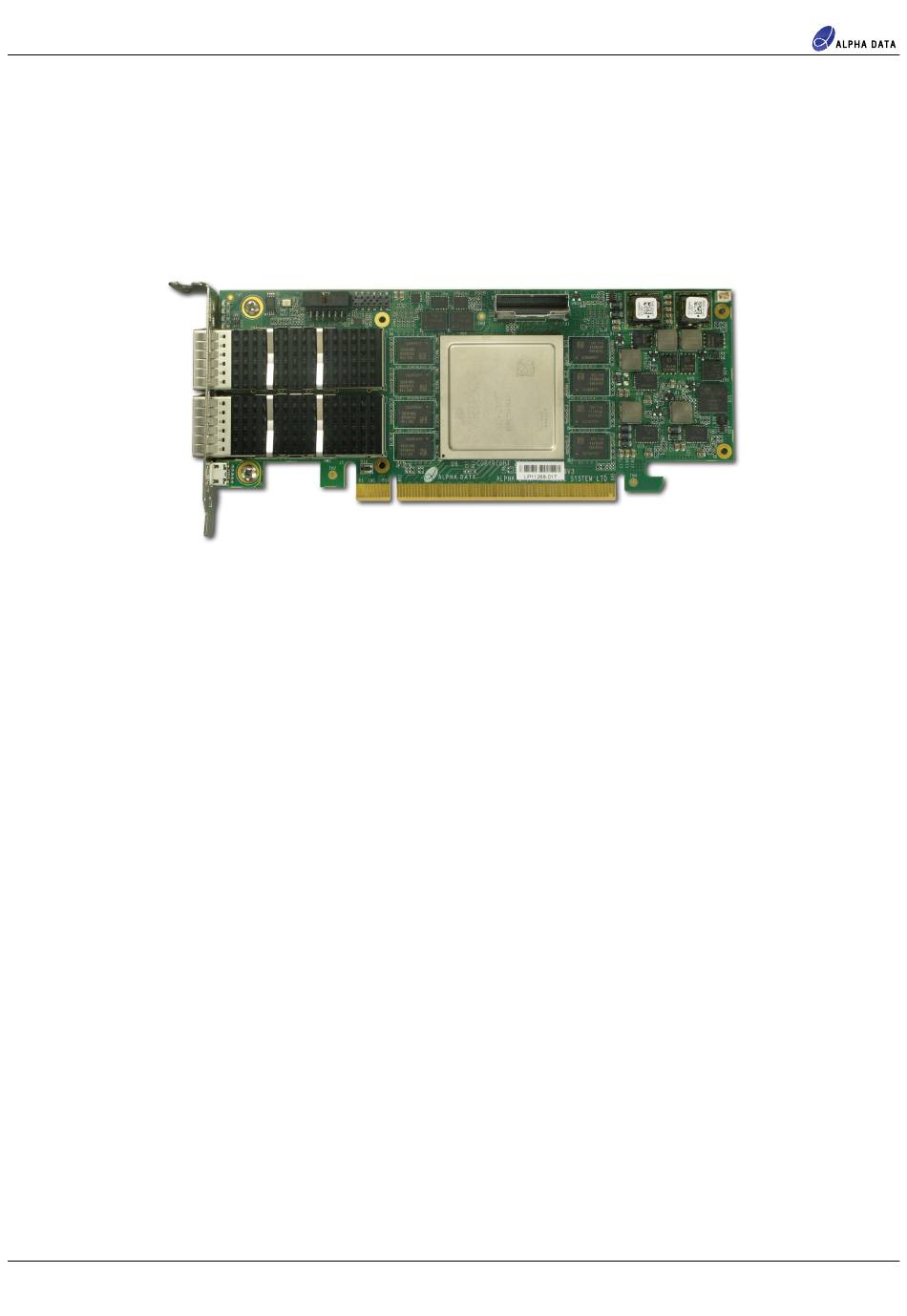

Figure 1 : ADM-PCIE-9V3 Product Photo
