3.1.2 LEDs

There are 8 LEDs on the ADM-PCIE-9V3, 5 of which are general purpose and whose meaning can be defined by
the user. The other 3 have fixed functions described below:
Comp.
Function
Ref.
D4 DONE
D8 USER_LED_G0
D2 USER_LED_G1
D7 USER_LED_R
D5 Status 0
D6 Status 1
D9 Front_LED_0
D10 Front_LED_1
Use IO Standard "LVCMOS18" when driving the user LED pins.
Functional Description
ad-ug-1322_v2_7.pdf
D2 D4
USER_LED_G1 DONE

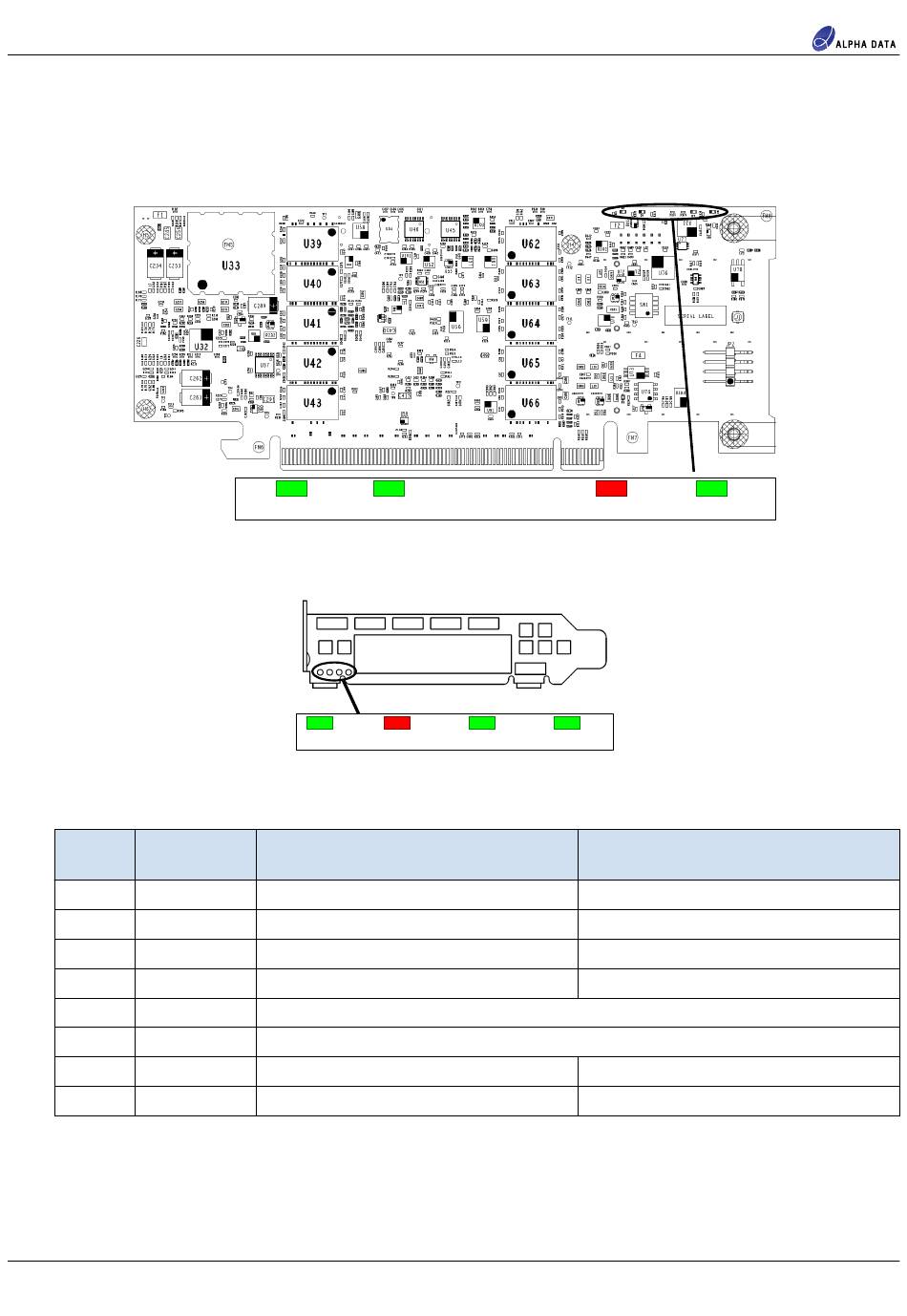

Figure 7 : Backside LEDs
D5 D6
STAT_1
STAT_0
Figure 8 : Front Panel LEDs
ON State
FPGA is configured
User defined '0' pin AT27
User defined '0' pin AU27
User defined '0' pin AU23
User defined '1' pin AH24
User defined '1' pin AJ23
Table 4 : LED Details
D7
USR_LED_R
D10 D9
Front_LED_1
Front_LED_0
See Status LED Definitions
See Status LED Definitions
D8
USR_LED_G0
OFF State
FPGA is not configured
User defined '1' pin AT27
User defined '1' pin AU27
User defined '1' pin AU23
User defined '0' pin AH24
User defined '0' pin AJ23
