Receiver; Figure 3-4: Receiver Controls, Connectors, And Indicators - Megger BITE 2 Instruction Manual

M

Receiver

UP and
DOWN
ARROW
Keys
3-Pin
Connector
7-Pin
Connector
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:

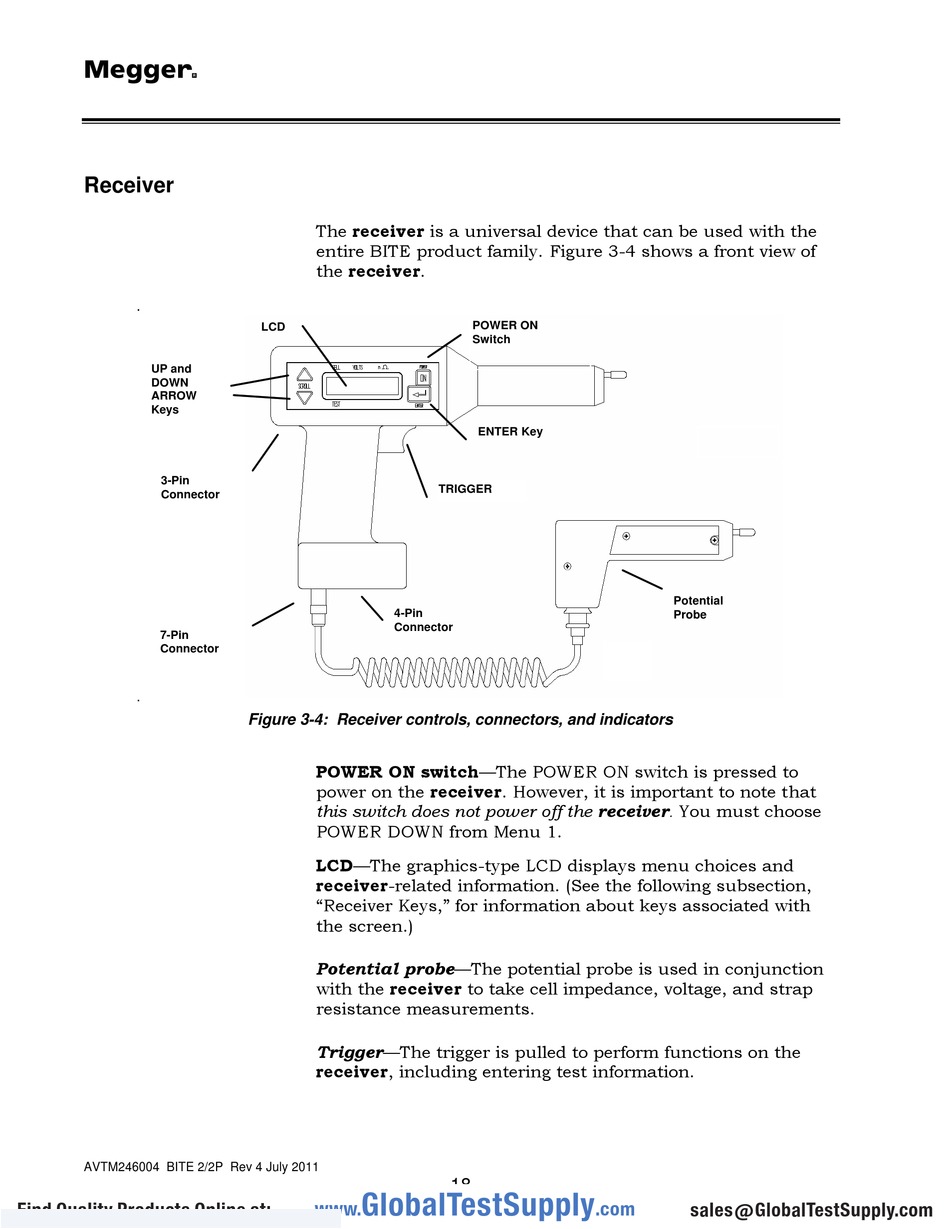

The receiver is a universal device that can be used with the
entire BITE product family. Figure 3-4 shows a front view of
the receiver.
LCD
4-Pin
Connector

Figure 3-4: Receiver controls, connectors, and indicators

POWER ON switch—The POWER ON switch is pressed to
power on the receiver. However, it is important to note that
this switch does not power off the receiver. You must choose
POWER DOWN from Menu 1.
LCD—The graphics-type LCD displays menu choices and
receiver-related information. (See the following subsection,
"Receiver Keys," for information about keys associated with
the screen.)
Potential probe—The potential probe is used in conjunction
with the receiver to take cell impedance, voltage, and strap
resistance measurements.
Trigger—The trigger is pulled to perform functions on the
receiver, including entering test information.
GlobalTestSupply
www.
POWER ON
Switch
ENTER Key
TRIGGER
18
.com
Potential
Probe
