Replacing BITE 2P
Transmitter
Secondary Fuses
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
7. Replace the fuse carrier in the power module on the
transmitter.
NOTE: An indicator pin is located on the fuse carrier to the
right of the J1 receptacle. Make sure that this indicator pin
points to the correct voltage (120 V or 230 V).
8. Test the transmitter as described earlier in the
subsection, "Verifying a Transmitter Fuse Problem."
If the instrument still does not respond correctly, return it
to Megger for service. Please refer to "If the BITE 2 or BITE
2P Needs Repairs" on page 88 for the necessary
information.
Fuse Location

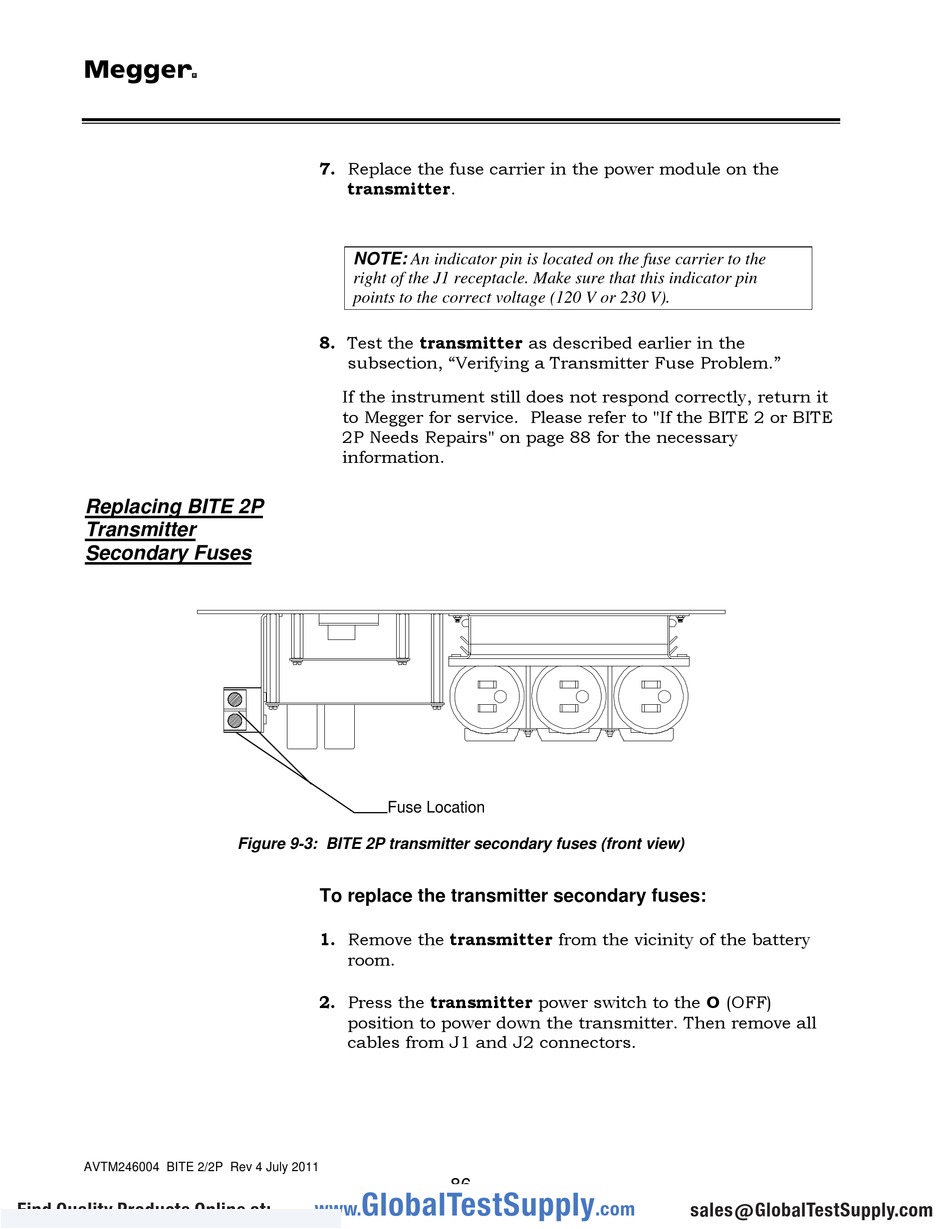

Figure 9-3: BITE 2P transmitter secondary fuses (front view)

To replace the transmitter secondary fuses:
1. Remove the transmitter from the vicinity of the battery
room.
2. Press the transmitter power switch to the O (OFF)
position to power down the transmitter. Then remove all
cables from J1 and J2 connectors.
