TRANSFERRING, PRINTING, AND DELETING TEST RESULTS

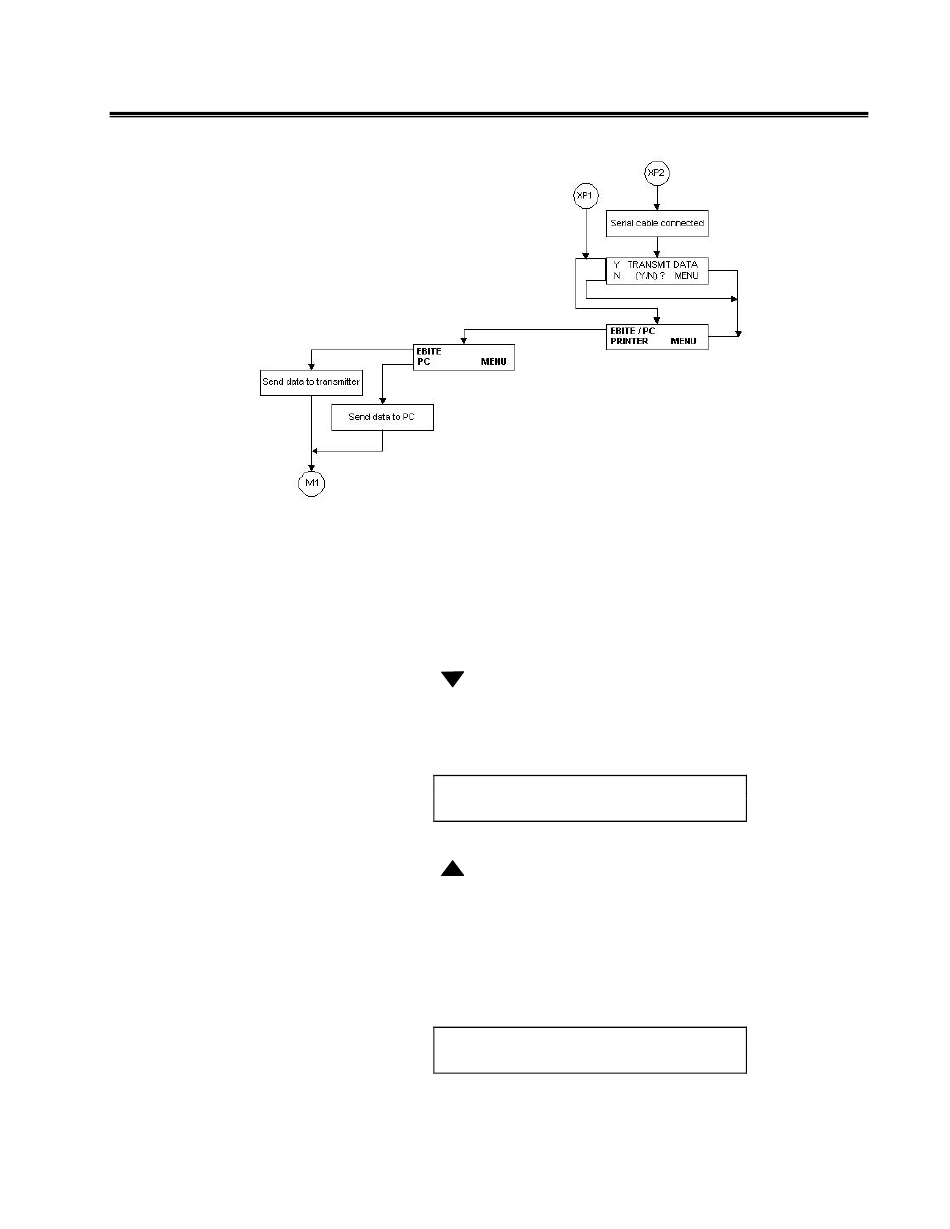

Figure 6-1: Exporting data to a PC

4. Connect the plug of the RS-232 communication
cable/printer (Cat. No. 35340) to the 7-pin connector
on the receiver. Then insert the pin end of the
communication cable into the com port on the PC.
5. Press on the receiver to select EXPORT DATA.
The receiver prompts you to select EBITE/PC or
printer.
EBITE/PC
PRINTER
6. Press on the receiver to select PC.
A screen on the receiver tells you to wait as the test results
are transferred.
When the transfer is complete, the receiver prompts you to
choose POWER DOWN or EXPORT DATA.
POWER DOWN
EXPORT DATA
7. Disconnect the RS-232 communication cable from both
the receiver and the PC.
