Bite 2P Transmitter; Figure 3-2: Bite 2P Transmitter - Megger BITE 2 Instruction Manual

M

BITE 2P Transmitter

Printer
Storage
Bin
Current On/Off Switch
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:

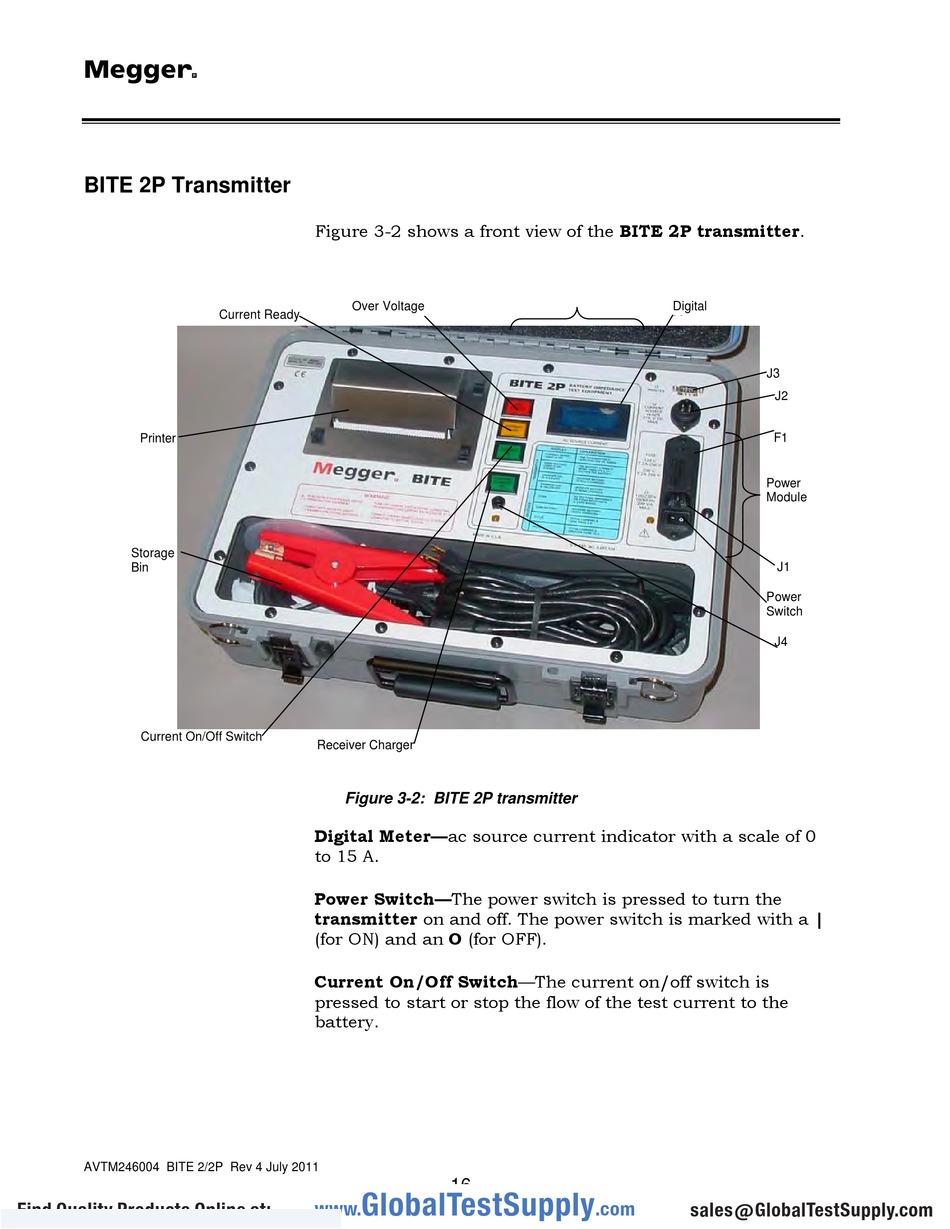

Figure 3-2 shows a front view of the BITE 2P transmitter.
Over Voltage
Current Ready
Receiver Charger

Figure 3-2: BITE 2P transmitter

Digital Meter—ac source current indicator with a scale of 0
to 15 A.
Power Switch—The power switch is pressed to turn the
transmitter on and off. The power switch is marked with a |
(for ON) and an O (for OFF).
Current On/Off Switch—The current on/off switch is
pressed to start or stop the flow of the test current to the
battery.
GlobalTestSupply
www.
Control Panel
16
.com
Digital
Meter
J3
J2
F1
Power
Module
J1
Power
Switch
J4
