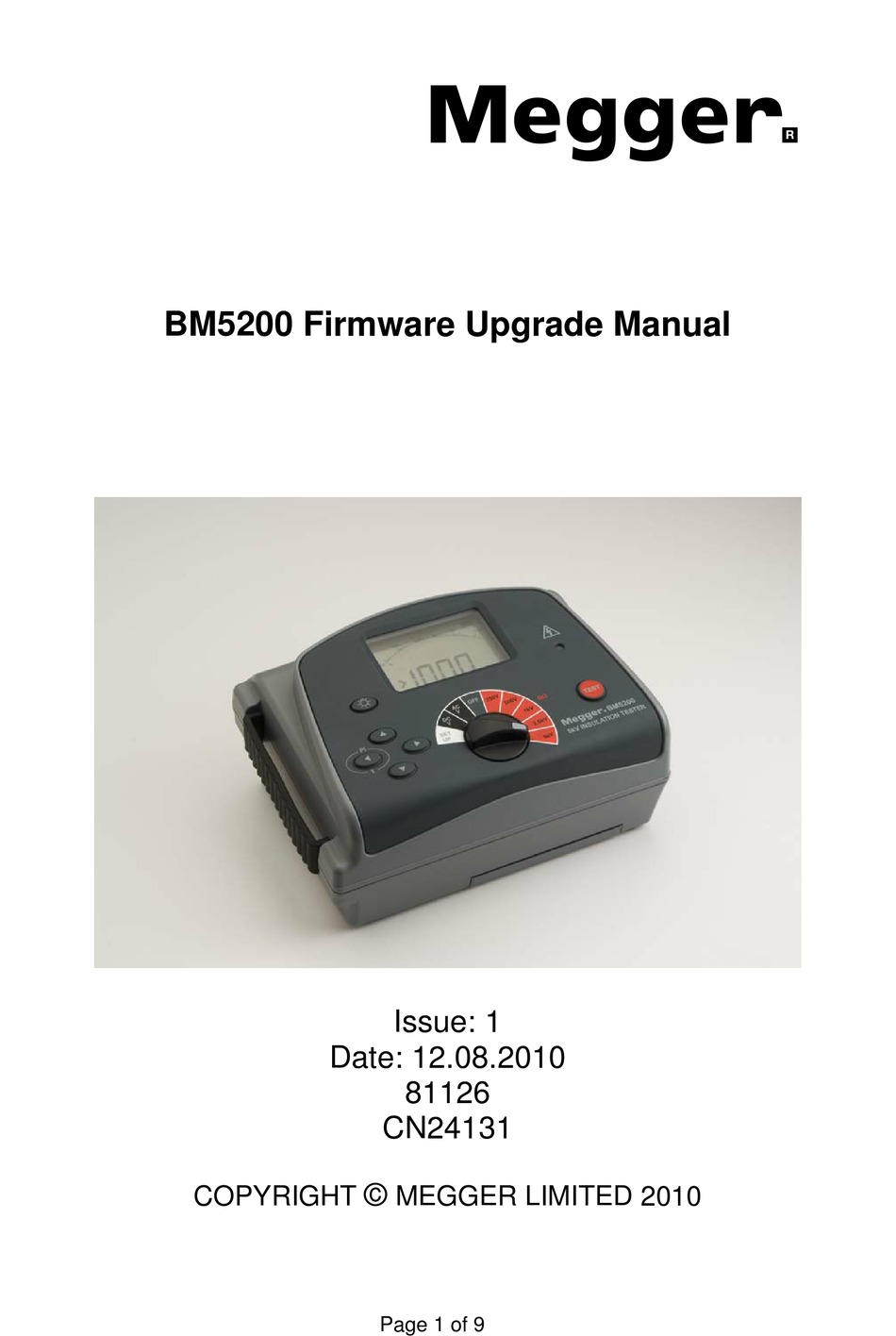

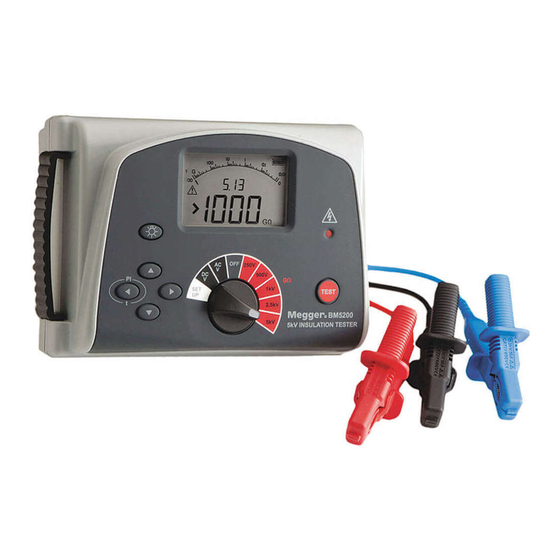

- Page 1 BM5200 Firmware Upgrade Manual Issue: 1 Date: 12.08.2010 81126 CN24131 © COPYRIGHT MEGGER LIMITED 2010 Page 1 of 9...
-
Page 2: Table Of Contents
CONTENTS Revision History………………………….. 3 Definition of Terms………………………. 3 Safety Warnings and Hazards…………. 4 Disassembly Instructions……………….. 5/6 Renesas R8a Debugger………………… 7 BM5200 Firmware Updating……………. 7 Programming Instructions………………. 8/9 Reassembly Instructions………………… 9 Page 2 of 9... -
Page 3: Revision History
Revision History Date Revision Description Author 12.08.2010 First issue released on CN24131 C.Nicholls DEFINITION OF TERMS The following terms are used in this document. MUST – Used to indicate instructions that if not followed will expose the user to unnecessary risk. Should –... -
Page 4: Safety Warnings And Hazards
SAFETY WARNINGS AND HAZARDS When upgrading the firmware on the BM5200 the user will require access to the PCB. The following warnings MUST be observed. When the unit is powered the PCB has high voltages present on it. Suitable precautions MUST be taken i.e. disconnect all test leads and the battery connector. -
Page 5: Disassembly Instructions
DISASSEMBLING THE BM5200 When assembling or disassembling the MTB7671 please refer to the following photographs and notes. REMOVING THE REAR CASE. The instrument must be switched to the OFF position. Remove the rubber feet (4 – off). These are adhesive fixed. - Page 6 Remove crosshead screws (4 – off) Carefully remove the rear case moulding. Disconnect the battery connector from the PCB. Note orientation. The HV wires connecting the terminals to the PCB must not be disconnected. Page 6 of 9...
-
Page 7: Renesas R8A Debugger
BM5200 FIRMWARE. The firmware needs to be supplied as an .fpf file format. The latest version of the firmware 1001-301 Vx.x BM5200 (whereVx.x is the latest version) can be downloaded from the official Megger Ltd. Internet site. Authorised Repair Centers can access this data by requesting permission to the BM5200 service internet site. -
Page 8: Programming Instructions
UPDATING THE FIRMWARE. After connecting R8a debugger and downloading the latest version of firmware 1001-301from the Megger Internet site, the following instructions should be followed: Double click the .fpf file to run the Flash Development Toolkit. Initially you will see this dialogue box. -
Page 9: Reassembly Instructions
Click OK to select USB device. BM5200 will now be re-programmed Check for green message. Re-assembling the BM5200 Disconnect the R8a debugger lead from the PCB Plug the battery connector back onto the 3 pin plug on the PCB. Note...
