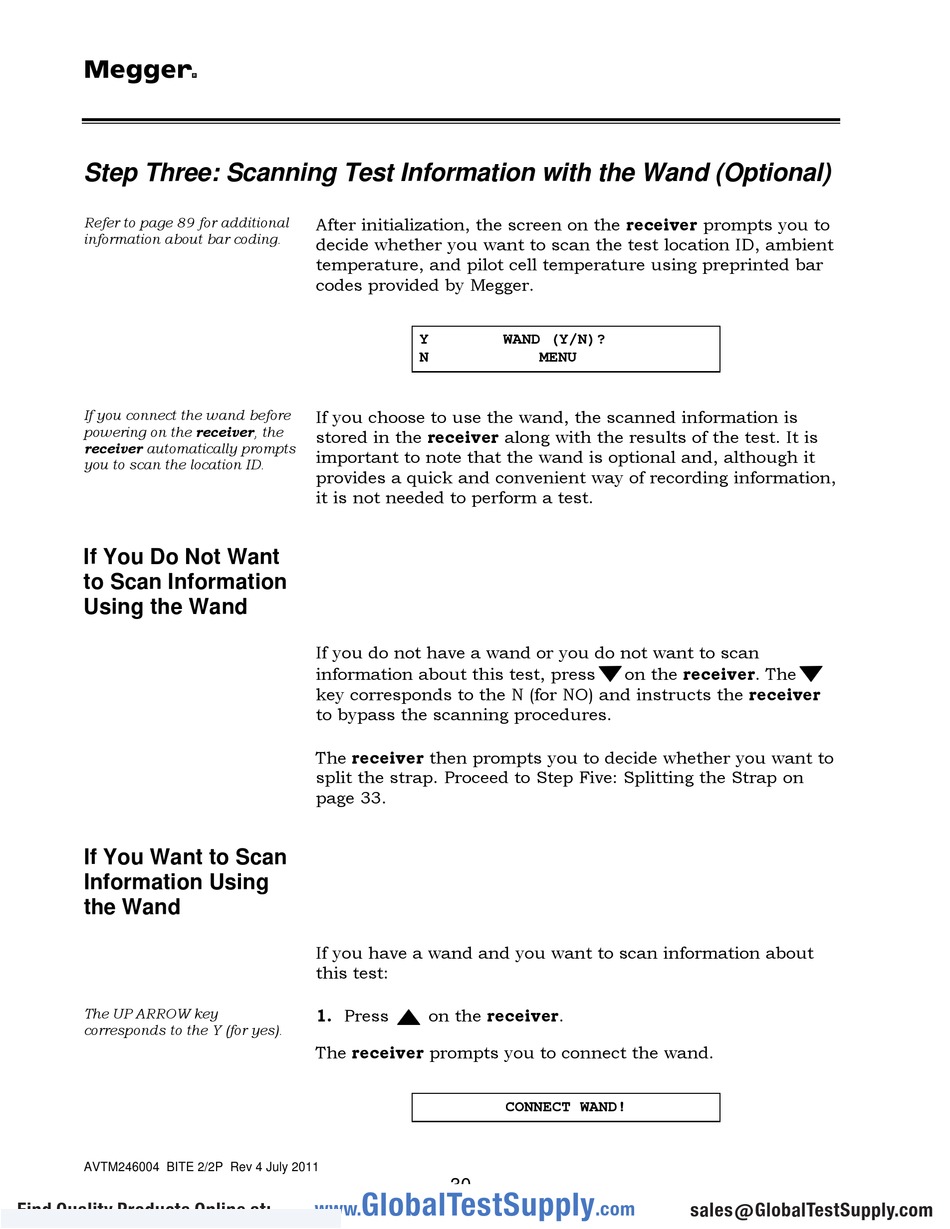

Step Three: Scanning Test Information with the Wand (Optional)

Refer to page 89 for additional
information about bar coding.
If you connect the wand before
powering on the receiver, the
receiver automatically prompts
you to scan the location ID.
If You Do Not Want
to Scan Information
Using the Wand
If You Want to Scan
Information Using
the Wand
The UP ARROW key
corresponds to the Y (for yes).
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
After initialization, the screen on the receiver prompts you to
decide whether you want to scan the test location ID, ambient
temperature, and pilot cell temperature using preprinted bar
codes provided by Megger.
Y
N
If you choose to use the wand, the scanned information is
stored in the receiver along with the results of the test. It is
important to note that the wand is optional and, although it
provides a quick and convenient way of recording information,
it is not needed to perform a test.
If you do not have a wand or you do not want to scan
information about this test, press
key corresponds to the N (for NO) and instructs the receiver
to bypass the scanning procedures.
The receiver then prompts you to decide whether you want to
split the strap. Proceed to Step Five: Splitting the Strap on
page 33.
If you have a wand and you want to scan information about
this test:
1. Press on the receiver.
The receiver prompts you to connect the wand.
30
GlobalTestSupply
www.
WAND (Y/N)?
MENU
on the receiver. The
CONNECT WAND!
