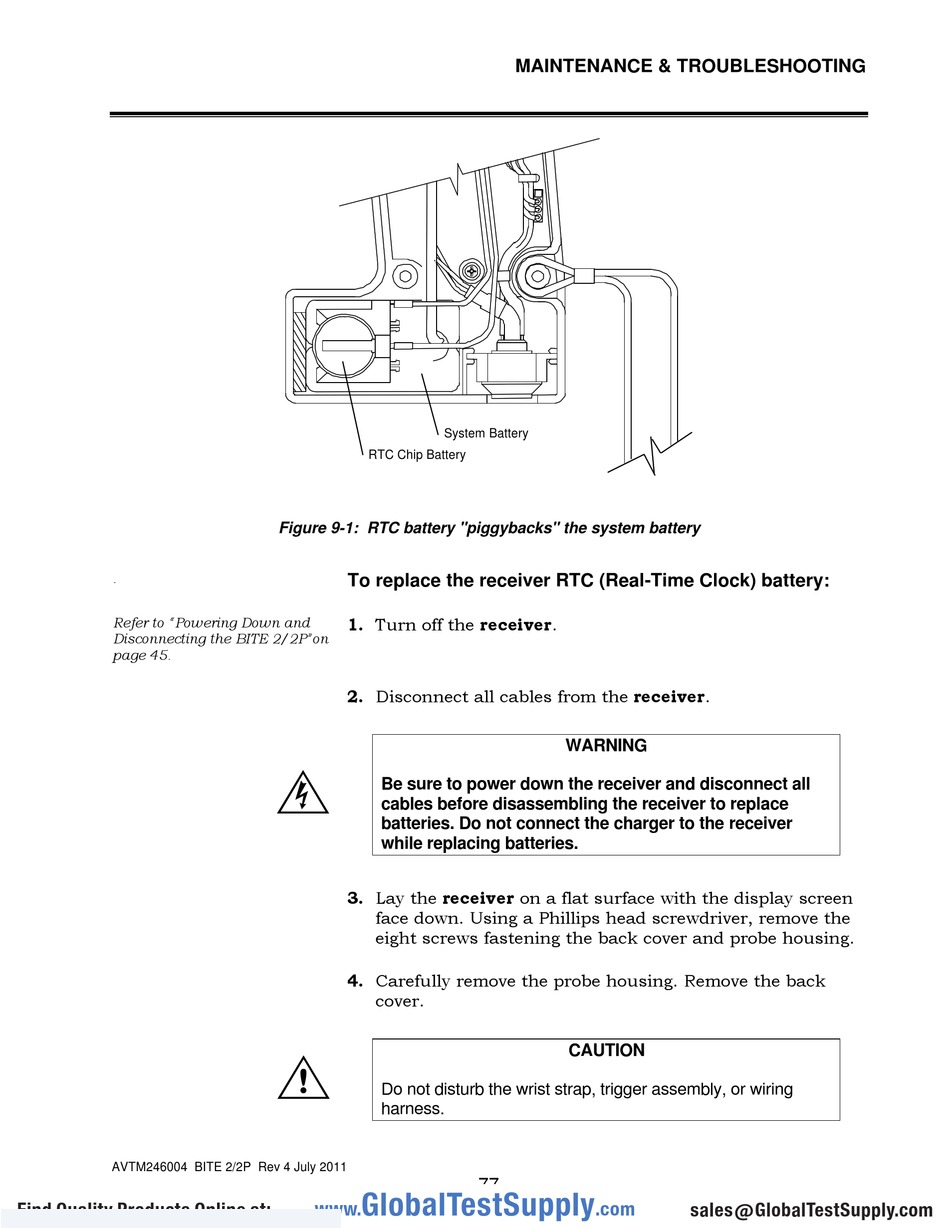

Figure 9-1: Rtc Battery "Piggybacks" The System Battery - Megger BITE 2 Instruction Manual

.
Refer to "Powering Down and
Disconnecting the BITE 2/2P"on
page 45.
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
System Battery
RTC Chip Battery

Figure 9-1: RTC battery "piggybacks" the system battery

To replace the receiver RTC (Real-Time Clock) battery:
1. Turn off the receiver.
2. Disconnect all cables from the receiver.
F
Be sure to power down the receiver and disconnect all
cables before disassembling the receiver to replace
batteries. Do not connect the charger to the receiver
while replacing batteries.
3. Lay the receiver on a flat surface with the display screen
face down. Using a Phillips head screwdriver, remove the
eight screws fastening the back cover and probe housing.
4. Carefully remove the probe housing. Remove the back
cover.
G
Do not disturb the wrist strap, trigger assembly, or wiring
harness.
