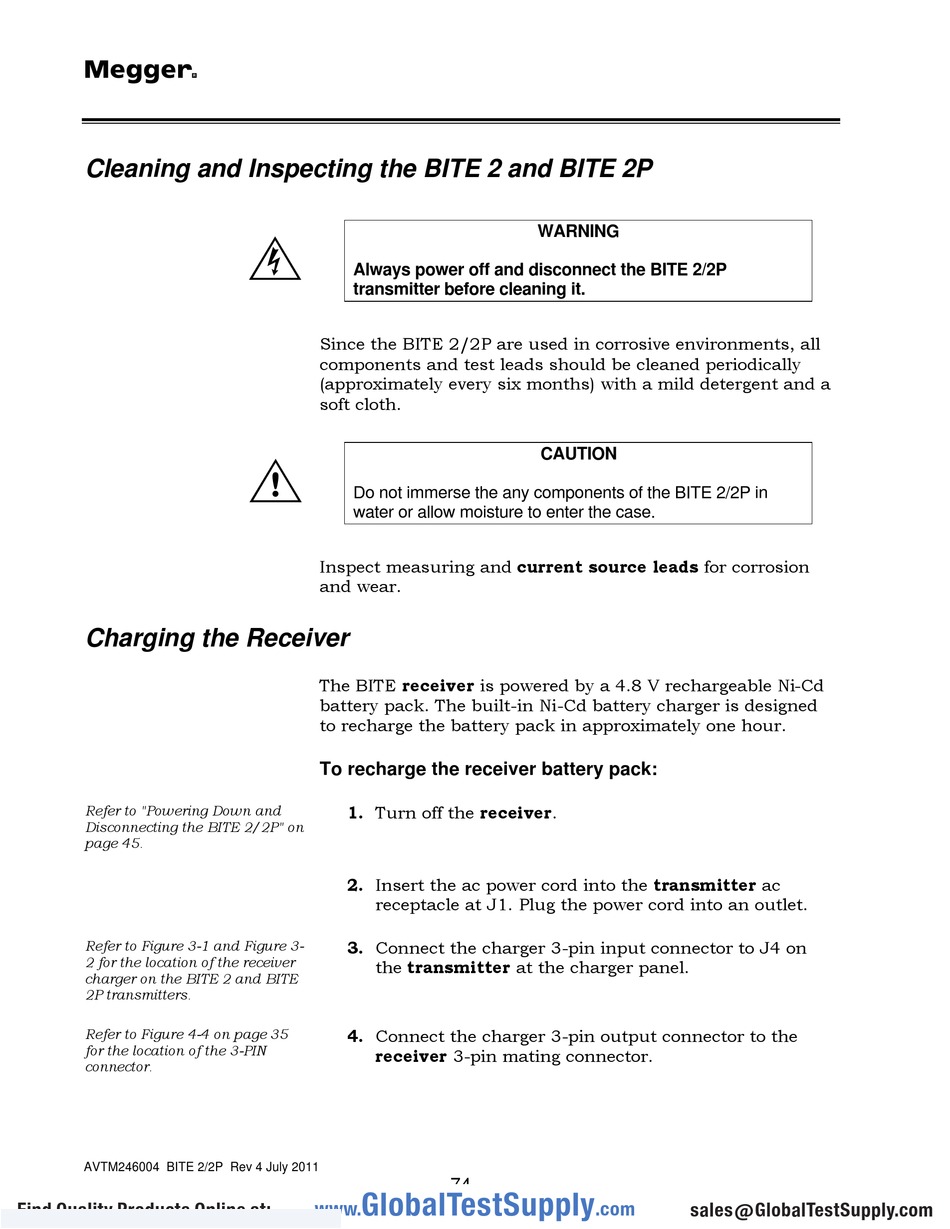

Cleaning and Inspecting the BITE 2 and BITE 2P

Charging the Receiver

Refer to "Powering Down and
Disconnecting the BITE 2/2P" on
page 45.
Refer to Figure 3-1 and Figure 3-
2 for the location of the receiver
charger on the BITE 2 and BITE
2P transmitters.
Refer to Figure 4-4 on page 35
for the location of the 3-PIN
connector.
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
F
Always power off and disconnect the BITE 2/2P
transmitter before cleaning it.
Since the BITE 2/2P are used in corrosive environments, all
components and test leads should be cleaned periodically
(approximately every six months) with a mild detergent and a
soft cloth.
G
Do not immerse the any components of the BITE 2/2P in
water or allow moisture to enter the case.
Inspect measuring and current source leads for corrosion
and wear.
The BITE receiver is powered by a 4.8 V rechargeable Ni-Cd
battery pack. The built-in Ni-Cd battery charger is designed
to recharge the battery pack in approximately one hour.
To recharge the receiver battery pack:
1. Turn off the receiver.
2. Insert the ac power cord into the transmitter ac
receptacle at J1. Plug the power cord into an outlet.
3. Connect the charger 3-pin input connector to J4 on
the transmitter at the charger panel.
4. Connect the charger 3-pin output connector to the
receiver 3-pin mating connector.
