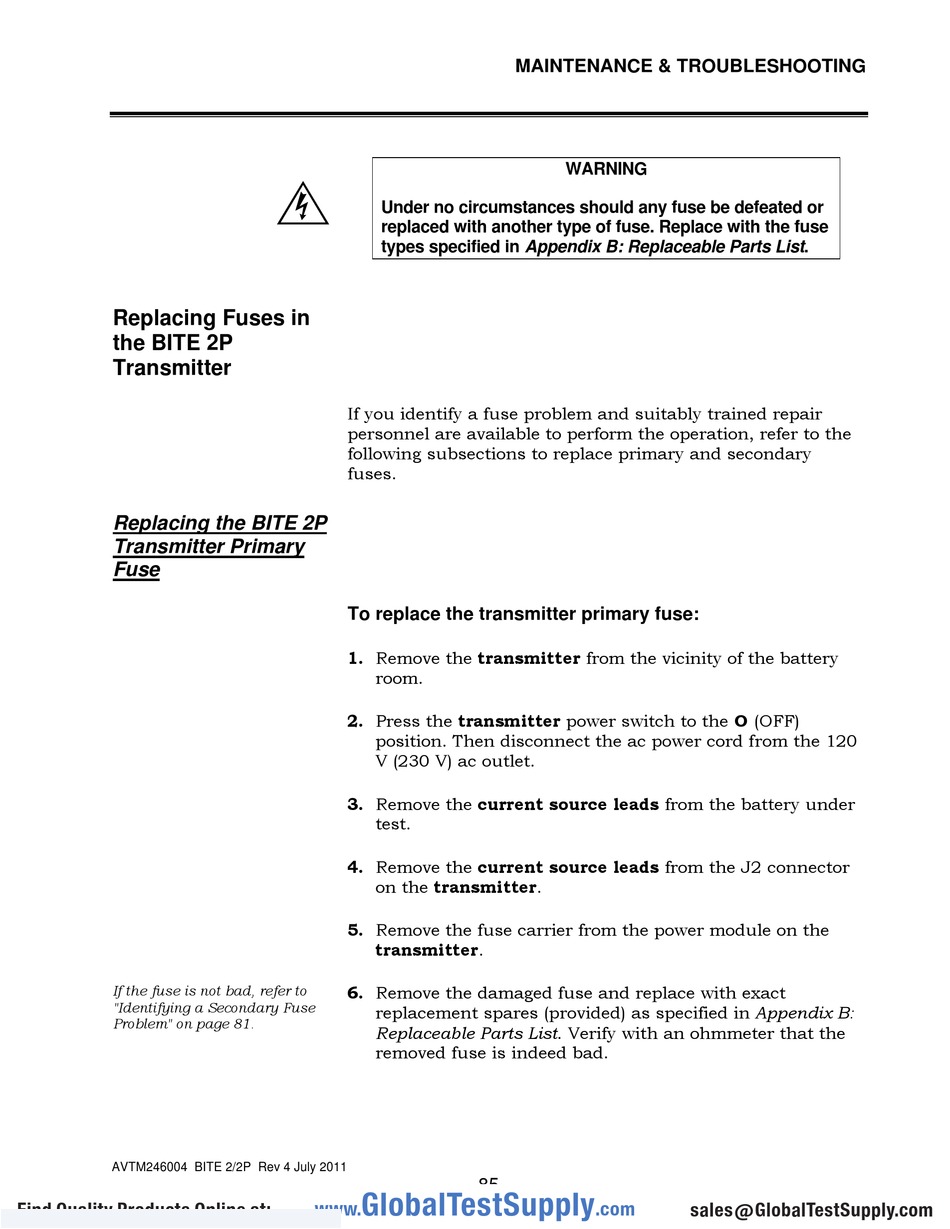

Replacing Fuses in
the BITE 2P
Transmitter
Replacing the BITE 2P
Transmitter Primary
Fuse
If the fuse is not bad, refer to
"Identifying a Secondary Fuse
Problem" on page 81.
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
F
Under no circumstances should any fuse be defeated or
replaced with another type of fuse. Replace with the fuse
types specified in Appendix B: Replaceable Parts List.
If you identify a fuse problem and suitably trained repair
personnel are available to perform the operation, refer to the
following subsections to replace primary and secondary
fuses.
To replace the transmitter primary fuse:
1. Remove the transmitter from the vicinity of the battery
room.
2. Press the transmitter power switch to the O (OFF)
position. Then disconnect the ac power cord from the 120
V (230 V) ac outlet.
3. Remove the current source leads from the battery under
test.
4. Remove the current source leads from the J2 connector
on the transmitter.
5. Remove the fuse carrier from the power module on the
transmitter.
6. Remove the damaged fuse and replace with exact
replacement spares (provided) as specified in Appendix B:
Replaceable Parts List. Verify with an ohmmeter that the
removed fuse is indeed bad.
