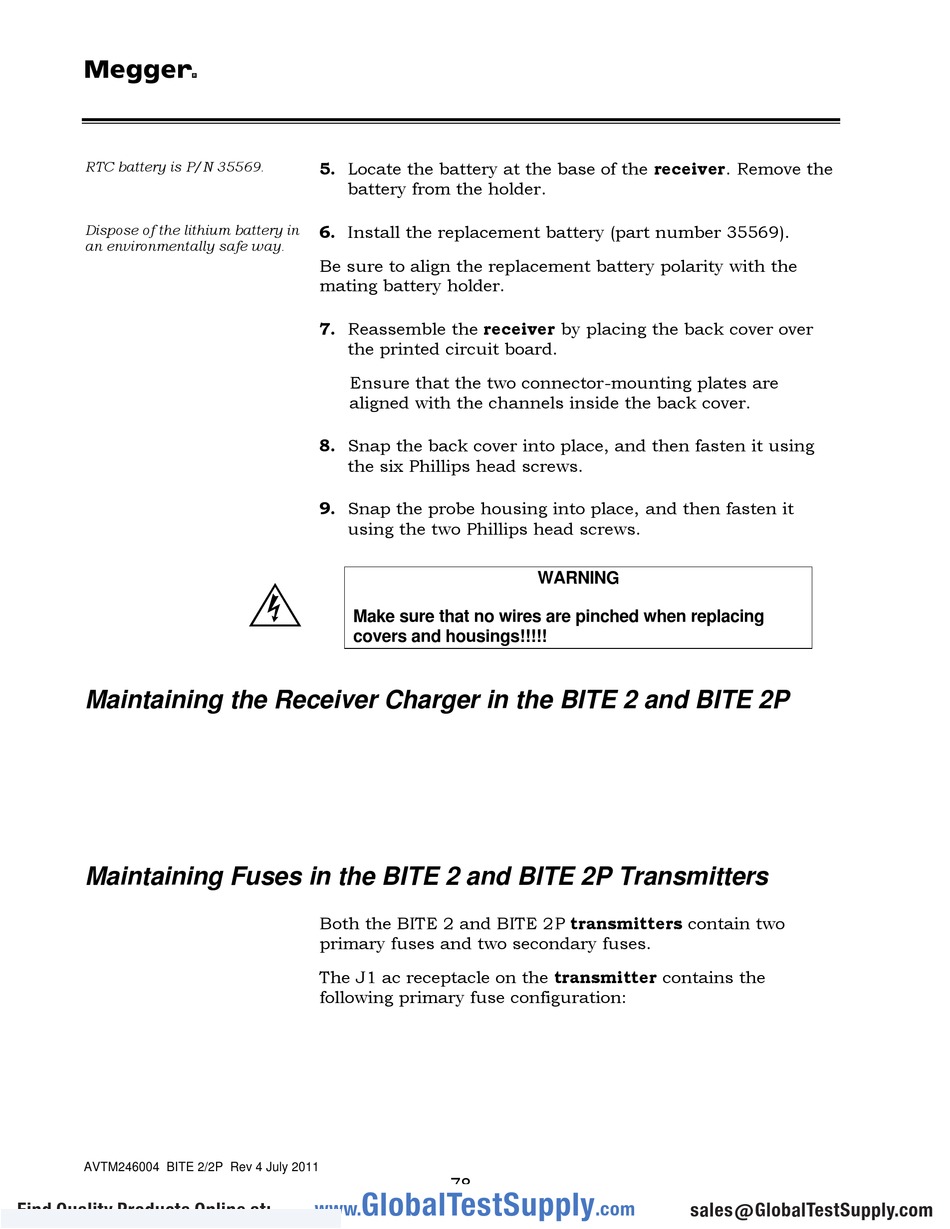

Maintaining The Receiver Charger In The Bite 2 And Bite 2P; Maintaining Fuses In The Bite 2 And Bite 2P Transmitters - Megger BITE 2 Instruction Manual

M
RTC battery is P/N 35569.
Dispose of the lithium battery in
an environmentally safe way.

Maintaining the Receiver Charger in the BITE 2 and BITE 2P

Maintaining Fuses in the BITE 2 and BITE 2P Transmitters

AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
5. Locate the battery at the base of the receiver. Remove the
battery from the holder.
6. Install the replacement battery (part number 35569).
Be sure to align the replacement battery polarity with the
mating battery holder.
7. Reassemble the receiver by placing the back cover over
the printed circuit board.
Ensure that the two connector-mounting plates are
aligned with the channels inside the back cover.
8. Snap the back cover into place, and then fasten it using
the six Phillips head screws.
9. Snap the probe housing into place, and then fasten it
using the two Phillips head screws.
F
Make sure that no wires are pinched when replacing
covers and housings!!!!!
Both the BITE 2 and BITE 2P transmitters contain two
primary fuses and two secondary fuses.
The J1 ac receptacle on the transmitter contains the
following primary fuse configuration:
