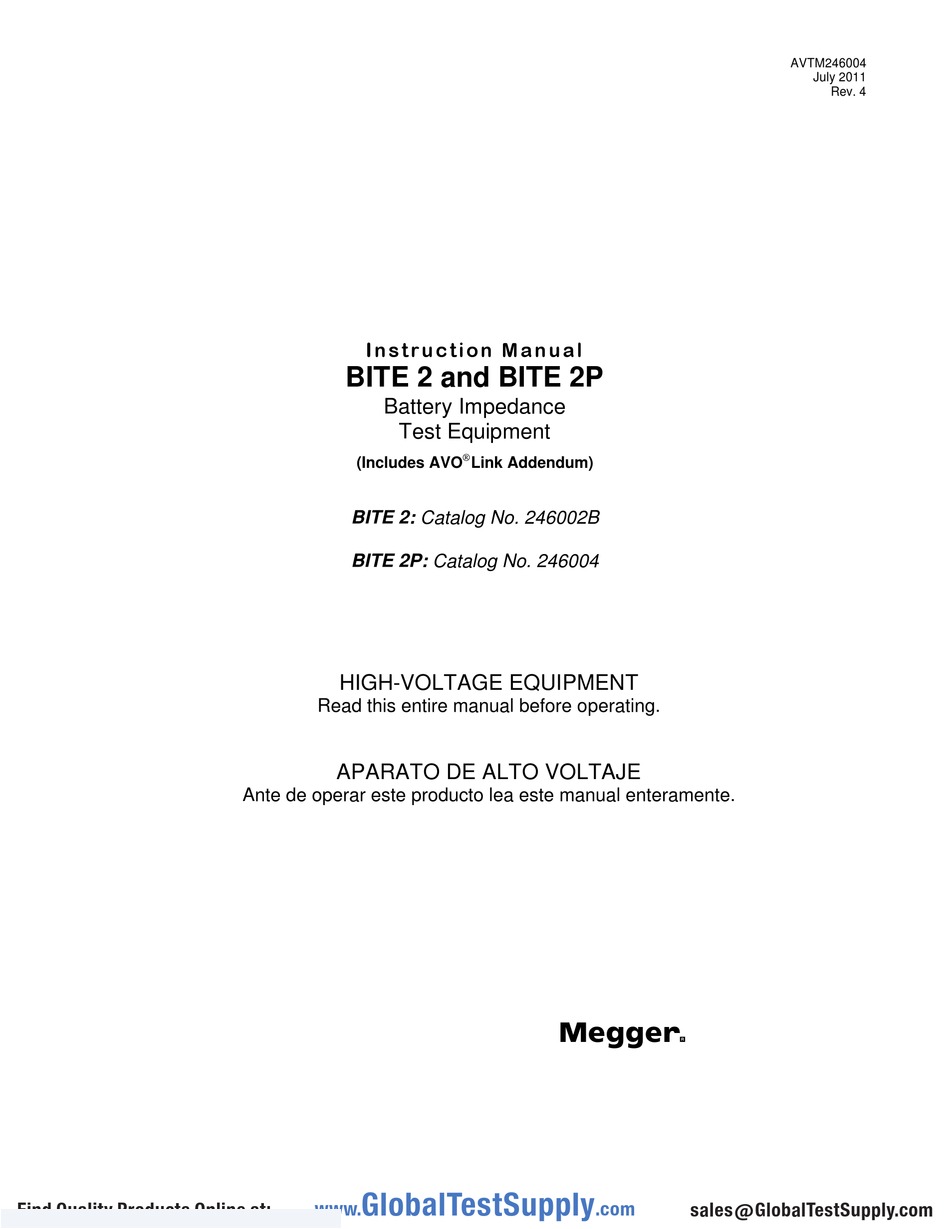

AVTM246004
July 2011
Rev. 4
I n s t r u c t i o n M a n u a l
BITE 2 and BITE 2P
Battery Impedance
Test Equipment
®
(Includes AVO
Link Addendum)
BITE 2: Catalog No. 246002B
BITE 2P: Catalog No. 246004
HIGH-VOLTAGE EQUIPMENT
Read this entire manual before operating.
APARATO DE ALTO VOLTAJE
Ante de operar este producto lea este manual enteramente.
M
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com
