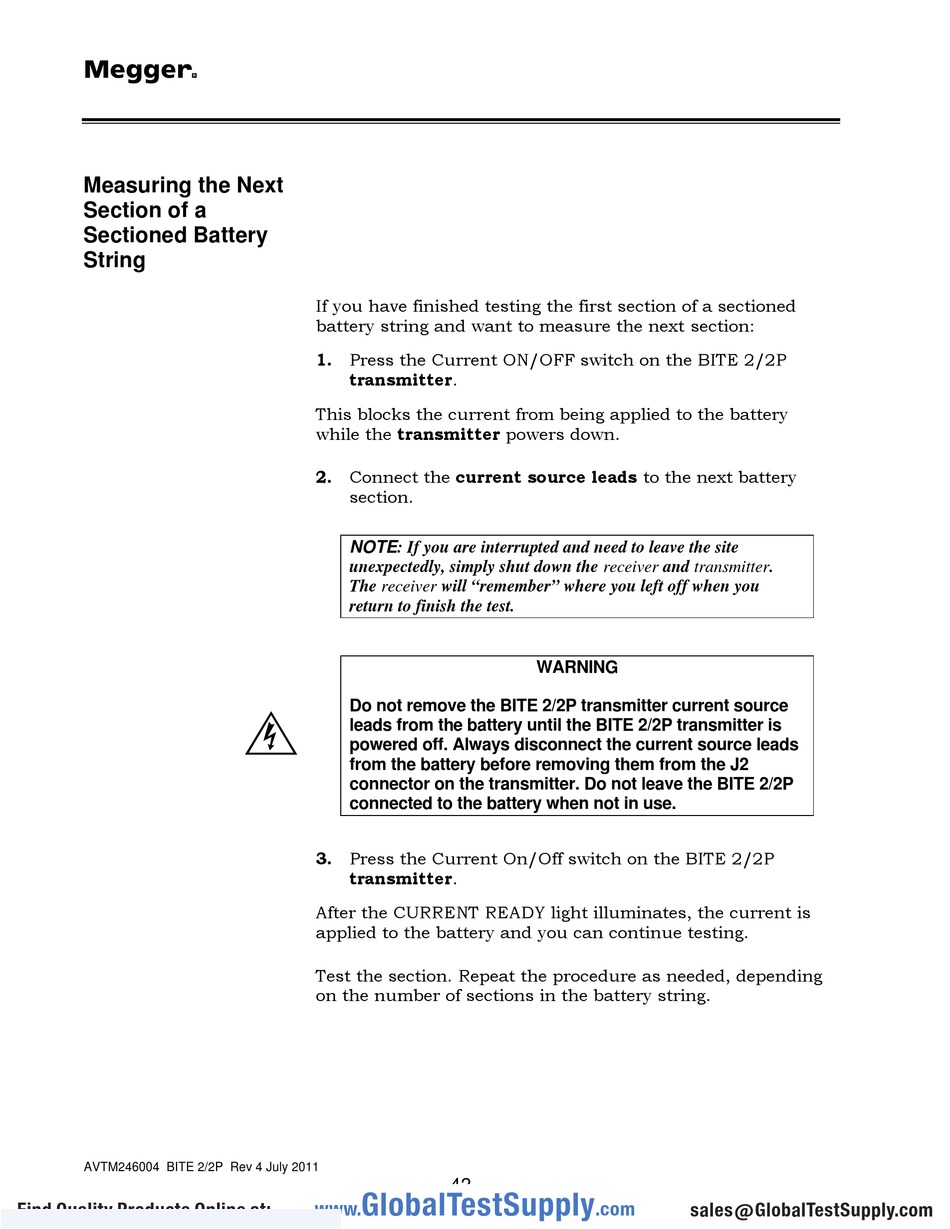

Measuring The Next Section Of A Sectioned Battery String - Megger BITE 2 Instruction Manual

M
Measuring the Next
Section of a
Sectioned Battery
String
AVTM246004 BITE 2/2P Rev 4 July 2011
Find Quality Products Online at:
If you have finished testing the first section of a sectioned
battery string and want to measure the next section:
1. Press the Current ON/OFF switch on the BITE 2/2P
transmitter.
This blocks the current from being applied to the battery
while the transmitter powers down.
2. Connect the current source leads to the next battery
section.
NOTE: If you are interrupted and need to leave the site
unexpectedly, simply shut down the receiver and transmitter.
The receiver will "remember" where you left off when you
return to finish the test.
Do not remove the BITE 2/2P transmitter current source
F
leads from the battery until the BITE 2/2P transmitter is
powered off. Always disconnect the current source leads
from the battery before removing them from the J2
connector on the transmitter. Do not leave the BITE 2/2P
connected to the battery when not in use.
3. Press the Current On/Off switch on the BITE 2/2P
transmitter.
After the CURRENT READY light illuminates, the current is
applied to the battery and you can continue testing.
Test the section. Repeat the procedure as needed, depending
on the number of sections in the battery string.
